How it works
Static balancing valve
The number that matters
Nominal pressure
362PSI (25bar)
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
The balancing valve is used for hydraulic balancing, regulating and limiting the flow rate in heating, cooling and air-conditioning systems with water or aqueous ethylene glycol solution with a concentration not exceeding 50%. And can also fulfil the function of a shut-off valve.

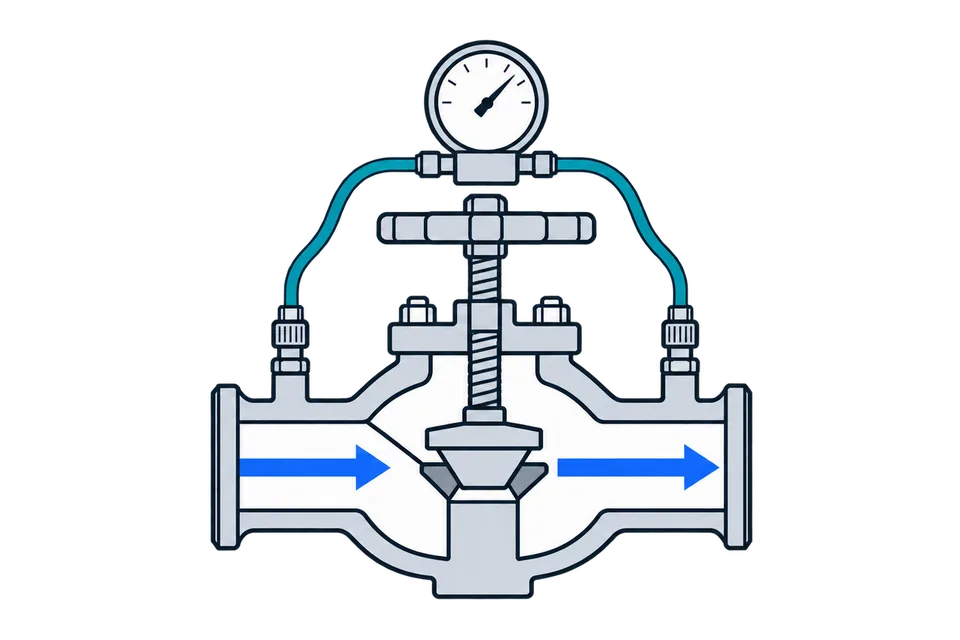

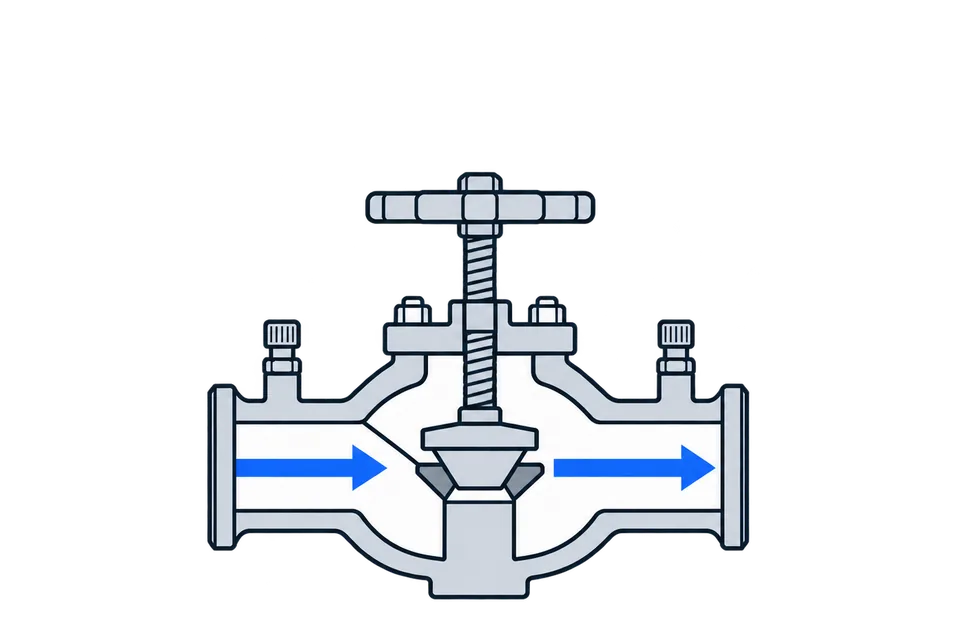

The valve design is a valve-type device. The differential pressure is set according to the setting chart or table by moving the stem with the help of a handle. Nipples for connection of a differential pressure gauge allow measuring the flow rate of the heating medium with an accuracy of ±5%.
Dimensions of balancing valves DNOVA VB0000P-T brass, threaded, with nipples
| Size | L | L1 | H | B | Weigh |
| DN15 | 87 | 143 | 112 | 12 | 0.49 |
| DN20 | 96 | 142 | 108 | 15 | 0.58 |
| DN25 | 100 | 153 | 125 | 20 | 0.84 |
| DN32 | 114 | 163 | 129 | 25 | 1 |
| DN40 | 124 | 177 | 142 | 32 | 1.2 |
| DN50 | 145 | 190 | 154 | 40 | 1.9 |
Sketch of balancing valves DNOVA VB0000P-T brass, threaded, with nipples
Part materials of balancing valves DNOVA VB0000P-T brass, Threaded NPT/BSP connection with nipples
| № | Part name | Material |
| 1 | Case | DZR brass |
| 2 | Stem | DZR brass |
| 3 | Spool gasket | PTFE |
| 4 | Gland rings | EPDM |
| 5 | nipple | DZR brass |
| 6 | Handle | ABS-plastic |
Material sketch of balancing valves DNOVA VB0000P-T brass, Threaded NPT/BSP connection with nipples
- Body material
- Brass
- Connection type
- Threaded NPT/BSP
- Operating environment
- Water, Air, and Oil Products
- Nominal pressure
- 362 PSI (25bar)
- Type of seal
- PTFE
- Locking material
- Brass
- Balancing valve type
- Static
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
