A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Ball valve KShmFP.316.200 is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Explosion-proof actuators marked 1ExdIIBT4 are used to control the operation of disc gates, ball valves and other valves with the angle of rotation of the working body at 90В° В±10В°. Explosion-proof actuators can be installed in hazardous areas of class 1 according indoors and outdoors under a canopy, in accordance with the requirements of section 7 of the Electrical Installation Regulations (EIR) for equipment with explosion protection marking 1ExdIIBT4.
В
В

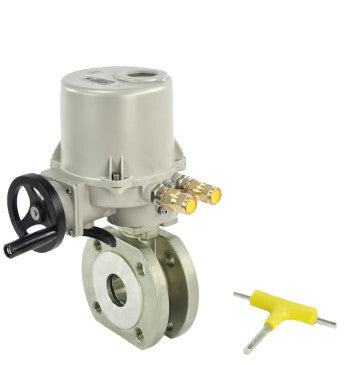

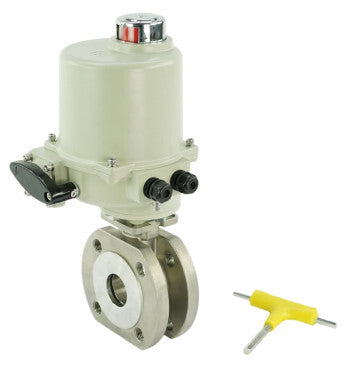

Materials of details of ball valve DNOVA KShmFP.316.200 with GZ-OF.V 380V with explosion-proof electric actuator GZ-OF.V:
| No. | Name | Material |
| 1 | screw | Stainless steel SS304/SS |
| 2 | Pad | PTFE |
| 3 | Thrust washer | PTFE |
| 4 | Stock | Stainless steel SS304/SS316/SS |
| 5 | Lid | Steel WCB/CF8/CF8M |
| 6 | Frame | Steel WCB/CF8/CF8M |
| 7 | Ball seal | PTFE |
| 8 | Ball | Stainless steel SS304/SS316/SS |
В
В
В
Overall and installation dimensions of ball valve DNOVA KShmFP.316.200 with GZ-OF.V 380V with explosion-proof electric actuator GZ-OF.V:
| D.N. | N-ГM | D | D1 | D2 | d | T | F | L | H | S2 | S1 | S3 | Weight |
| mm | kg | ||||||||||||
| 15 | 4-Г12 | 95 | 65 | 47 | 15 | - | 2 | 34 | 267 | 202 | 141 | 122 | 6.2 |
| 20 | 4-Г12 | 105 | 75 | 58 | 20 | - | 2 | 38 | 273 | 202 | 141 | 122 | 6.4 |
| 25 | 4-Г12 | 115 | 85 | 68 | 25 | 10 | 2 | 42 | 278 | 202 | 141 | 122 | 7 |
| 32 | 4-Г16 | 135 | 100 | 78 | 32 | 18 | 3 | 54 | 300 | 202 | 141 | 122 | 8 |
| 40 | 4-Г16 | 145 | 110 | 88 | 38 | 18 | 3 | 62 | 307 | 202 | 141 | 122 | 8.85 |
| 50 | 4-Г16 | 160 | 125 | 102 | 45.5 | 18 | 3 | 72 | 330 | 202 | 141 | 122 | 9.95 |
| 65 | 8-Г16 | 180 | 145 | 122 | 58 | 20 | 3 | 110 | 411 | 265 | 195 | 194 | 17.8 |
| 80 | 8-Г16 | 195 | 160 | 133 | 58 | 20 | 3 | 113 | 435 | 265 | 195 | 194 | 20.3 |
| 100 | 8-Г16 | 215 | 180 | 158 | 93 | 24 | 3 | 140 | 466 | 281 | 212 | 205 | 32 |
