Description
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control with maximum torque up to 2128 Nm.

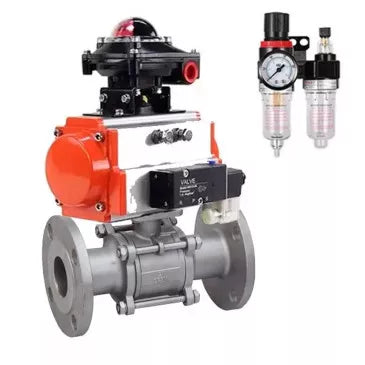

Technical parameters Ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
| Parameter | Value |
|---|---|
| Operating Medium Temperature, °C | -20 to 180 |
| Application | Water supply, heating, pneumatic systems |
| Working Medium | Water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Pipeline Connection | Flanged |
| Water-drawing | No |
| Passage Type | Full bore |
| Ball Valve Tightness Class | A |
| Control Type | With pneumatic actuator |
| Connection | Flanged |
| Actuation | Pneumatic actuator with return springs |
| Presence of Limit Switches | Yes |
| Presence of Pneumatic Distributor | Yes |
| Warranty, years | 1 |
| Country of Manufacture | China |
Dimensions and dimensions Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
| DN | H | D | L | B1 | E | ØD | ØD1 | ØG | f | T | X | Y |
| 15 | 174 | 15 | 130 | 153 | 72 | 95 | 65 | 46 | 2 | 17 | 162 | 139 |
| 20 | 174 | 20 | 150 | 153 | 72 | 105 | 75 | 58 | 2 | 18 | 162 | 139 |
| 25 | 174 | 25 | 160 | 153 | 72 | 115 | 85 | 68 | 2 | 18 | 162 | 139 |
| 32 | 174 | 32 | 180 | 153 | 72 | 140 | 100 | 78 | 2 | 19 | 162 | 139 |
| 40 | 174 | 40 | 200 | 174 | 89 | 150 | 110 | 88 | 2 | 19 | 162 | 139 |
| 50 | 174 | 50 | 230 | 216 | 109 | 165 | 125 | 102 | 3 | 19 | 162 | 139 |
| 65 | 174 | 65 | 290 | 279 | 134 | 185 | 145 | 122 | 3 | 22 | 162 | 139 |
| 80 | 174 | 80 | 310 | 279 | 134 | 200 | 160 | 140 | 3 | 24 | 162 | 139 |
| 100 | 174 | 100 | 350 | 308 | 157 | 234 | 190 | 161 | 3 | 24 | 162 | 139 |
Sketch Ball Valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
Parts and materials table Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
| № | Part Name | Material | Quantity |
|---|---|---|---|
| 1 | Body | Stainless steel SS304 / SS316 | 1 |
| 2 | Ball Valve | Stainless steel S304 / S316 | 1 |
| 3 | Bolt | Stainless steel S201 / S304 | 4~6 |
| 4 | Nut | Stainless steel S201 / S304 | 6~12 |
| 5 | Seal | PTFE | 1 |
| 6 | Stem | Stainless steel SS304 / SS316 | 1 |
| 7 | Gland | Stainless steel S201 / S304 | 1 |
| 8 | Cover | Steel WCB/CF8/CF8M | 2 |
| 9 | Seat Rings | PTFE | 2 |
| 10 | Thrust Washer | PTFE | 1 |
Sketch Ball Valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
Technical parameters of pneumatic actuator DNOVA
| Parameter | Value |
|---|---|
| Design | With return springs |
| Operating Pressure, bar | 6 |
| Working Medium | Filtered compressed air or non-aggressive gases, oils |
| Manual Override | No |
Dimensions and dimensions of pneumatic actuator DNOVA
Here's the table based on the provided data:
| Model | SA-065 | SA-083 | SA-105 | SA-130 | SA-140 | SA-160 |
|---|---|---|---|---|---|---|
| G, mm | 15 | 15 | 25 | 25 | 30 | 30 |
| M, mm | 80 | 80 | 80 | 80 | 130 | 130 |
| N, mm | 30 | 30 | 30 | 30 | 30 | 30 |
| F0, mm | 34 | 34 | 41 | 62 | 62 | 62 |
| P, mm | 20 | 20 | 20 | 30 | 30 | 30 |
| B1, mm | 174 | 216 | 279 | 308 | 405 | 465 |
| C, mm | 36 | 46 | 55 | 67.5 | 76 | 87.5 |
| E, mm | 89 | 109 | 134 | 157 | 174 | 199 |
| J | 4-M6x10 | 4-M6x10 | 4-M8x12 | 4-M8x12 | 4-M10x16 | 4-M10x16 |
| K | 4-M8x12 | 4-M8x12 | 4-M10x16 | 4-M10x16 | 4-M12x20 | 4-M12x20 |
| F, mm | 26 | 26 | 26 | 36 | 36 | 38 |
| A1, mm | 125 | 152 | 189 | 210 | 268 | 310 |
| D, mm | 46 | 55 | 64 | 70 | 77 | 87.5 |
| H | F05 | F05 | F07 | F10 | F10 | F10 |
| I | F07 | F07 | F10 | F12 | F12 | F12 |
| L | 14x14 | 17x17 | 22x22 | 22x22 | 27x27 | 27x27 |
Sketch of dimensions and dimensions of pneumatic actuator DNOVA
Parts and materials table for pneumatic actuator DNOVA
| № | Part Name | Quantity | Material | Coating |
|---|---|---|---|---|
| 1 | Housing | 1 | Extruded aluminum | Hard anodized |
| 2 | Side plugs | 2 | Cast aluminum | |
| 3 | Gear | 1 | Stainless steel | Nickel-plated |
| 4 | Piston | 2 | Steel/Aluminum | Oxidized / Galvanized |
| 5 | Plugs | 8 | Stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | Spring steel | Epoxy coating |
| 8 | Piston bearing | 2 | Engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | Engineering plastic | |
| 12 | Ring | 1 | Engineering plastic | |
| 13 | Washer | 1 | Stainless steel | |
| 14 | Spring clamp | 2 | Stainless steel | |
| 15 | Indicator | 1 | Plastic | |
| 16 | Indicator housing | 1 | Plastic | |
| 17 | Bearing | 1 | Engineering plastic | |
| 18 | Cam | 1 | Steel | Oxidized / Galvanized |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | Engineering plastic | |
| 21 | Bearing | 1 | Engineering plastic | |
| 22 | O-ring | 2 | NBR | |
| 23 | O-ring | 2 | NBR | |
| 24 | Bearing | 2 | Stainless steel | |
| 25 | Adjustment nut | 2 | Stainless steel | |
| 26 | Adjustment screw | 2 | Stainless steel | |
| 27 | Bushing | 2 | Aluminum |
Technical parameters of pneumatic valve DNOVA 4V320-10 220V
| Name | Value |
|---|---|
| Type of pneumatic distributor | Spool type |
| Model of pneumatic distributor | 4V320-10 220V |
| Operating pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Switching frequency, cycle/sec | 5 |
Technical parameters of limit switch unit DNOVA APL-410N EX
| Name | Value |
|---|---|
| Model of limit switch module | APL-410N EX |
| Service life, years | 10 |
Parts and materials table for DNOVA APL-410N EX limit switch unit
| № | Part Name | Material |
|---|---|---|
| 1 | Visual indicator | ABS plastic / polycarbonate |
| 2 | Visual indicator cover | Polycarbonate |
| 3 | Label | |
| 4 | Cover screws | Stainless steel |
| 5 | BKV housing cover | Die-cast aluminum |
| 6 | Shaft | Stainless steel |
| 7 | Limit switches | |
| 8 | Cam (eccentric) | Polycarbonate |
| 9 | BKV housing | Die-cast aluminum |
| 10 | Terminal block | |
| 11 | Grounding terminal | Stainless steel |
| 12 | Hole (thread) for cable entry | |
| 13 | Bracket | Stainless steel |
Main parameters of the DNOVA AFC2000 air treatment unit
| Parameter | Value |
|---|---|
| Working pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Burst pressure, bar | 15 |
| Air connection | 1/4" |
| Working temperature, °C | from -5 to +60 |
| Filtered particle size, μm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0.395 |
| Set contents | Filter-water separator, pressure regulator, lubricator, bracket |
Sketch of BPV DNOVA AFC2000
