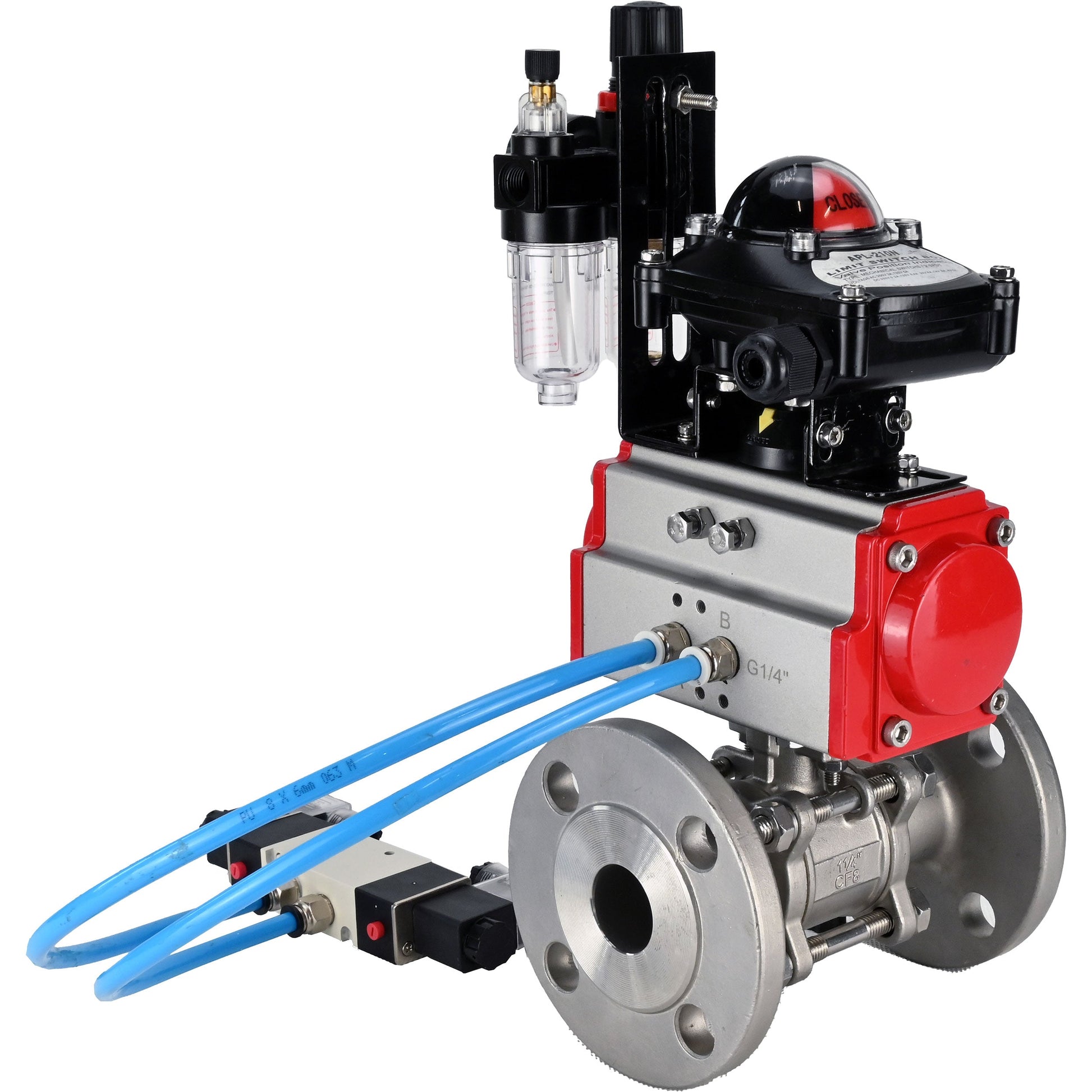

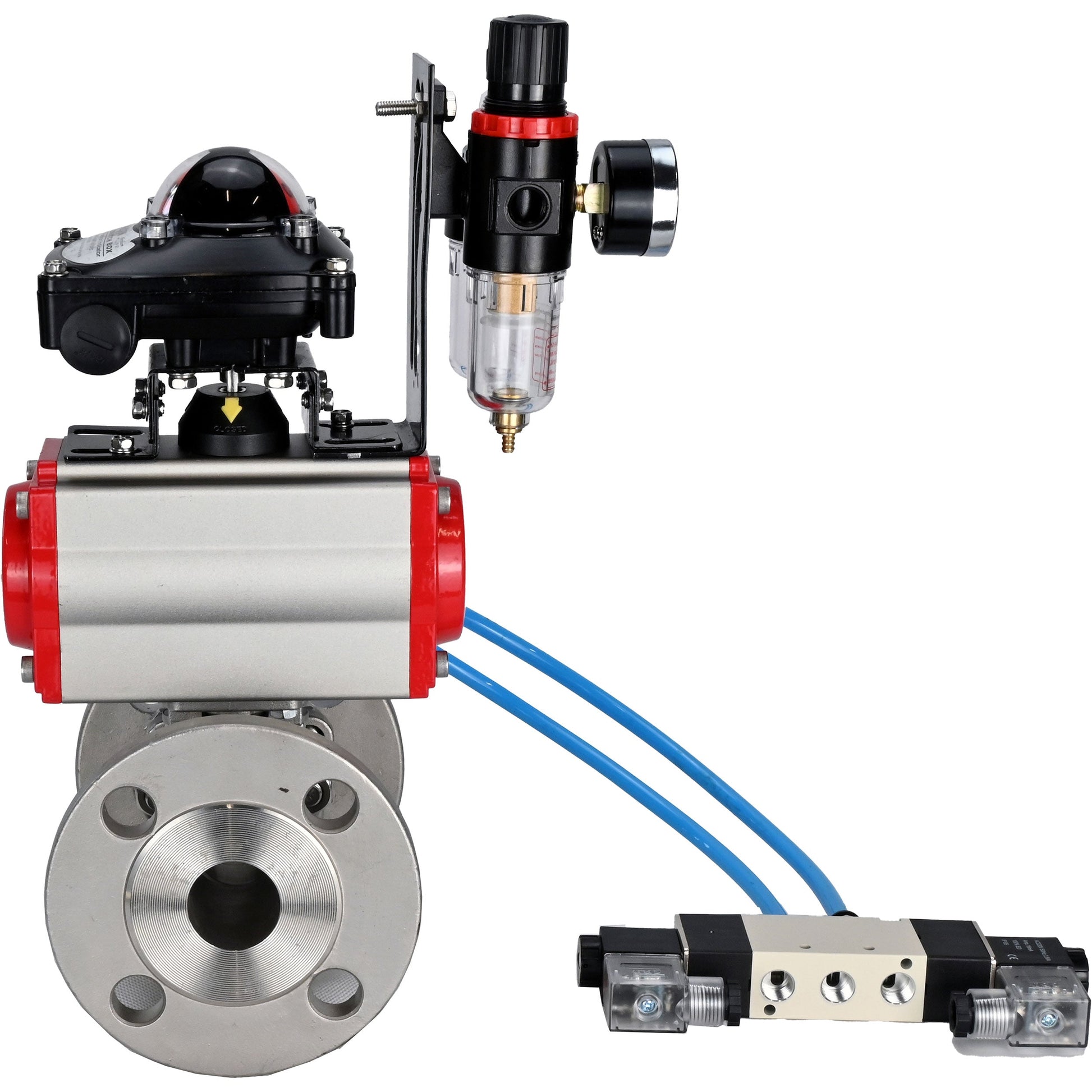

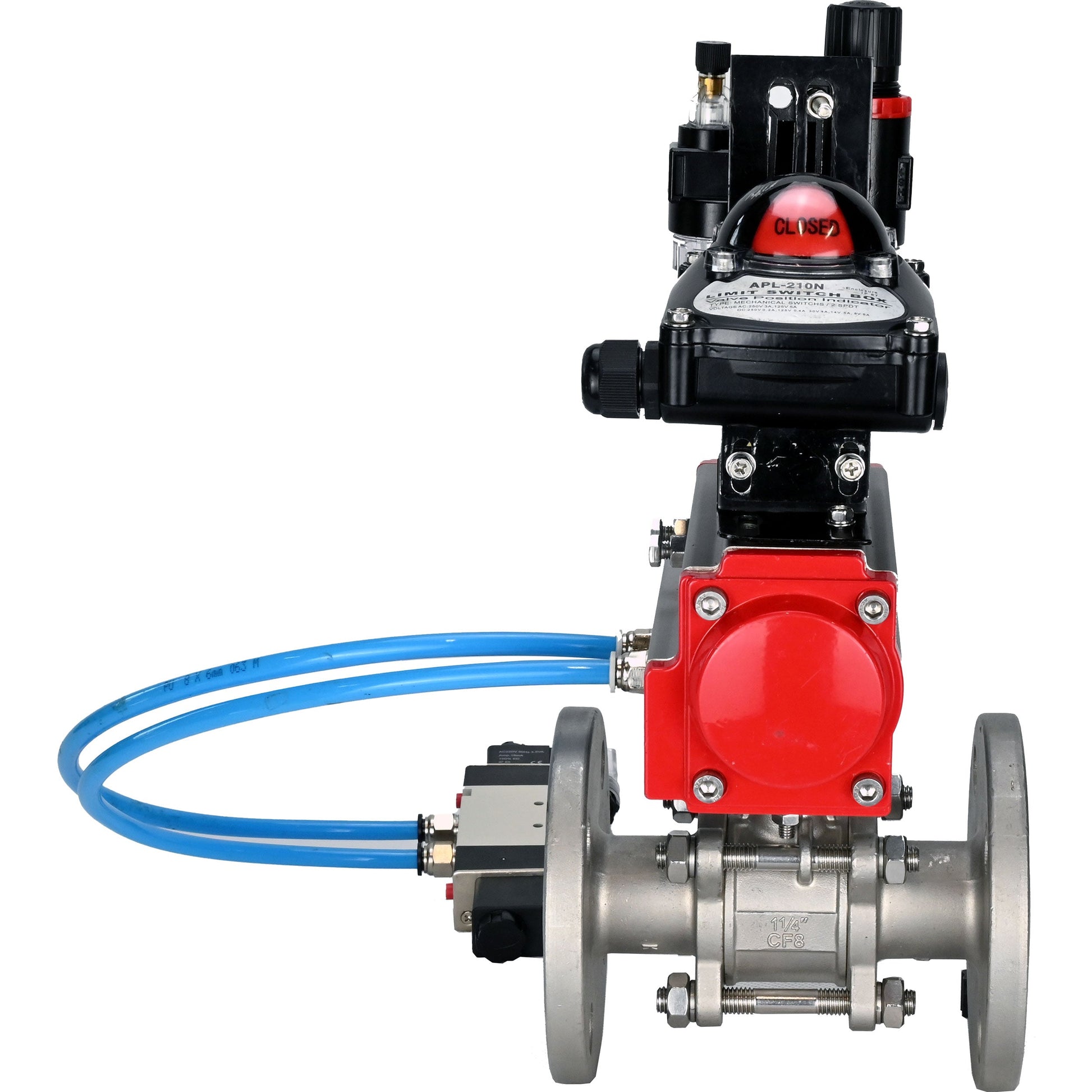

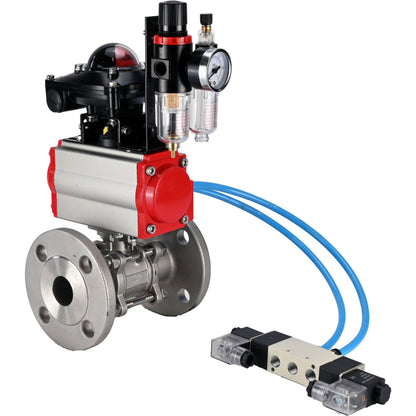

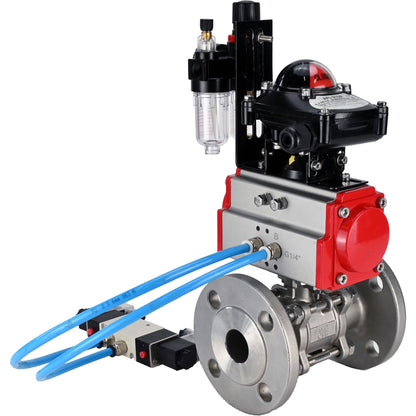

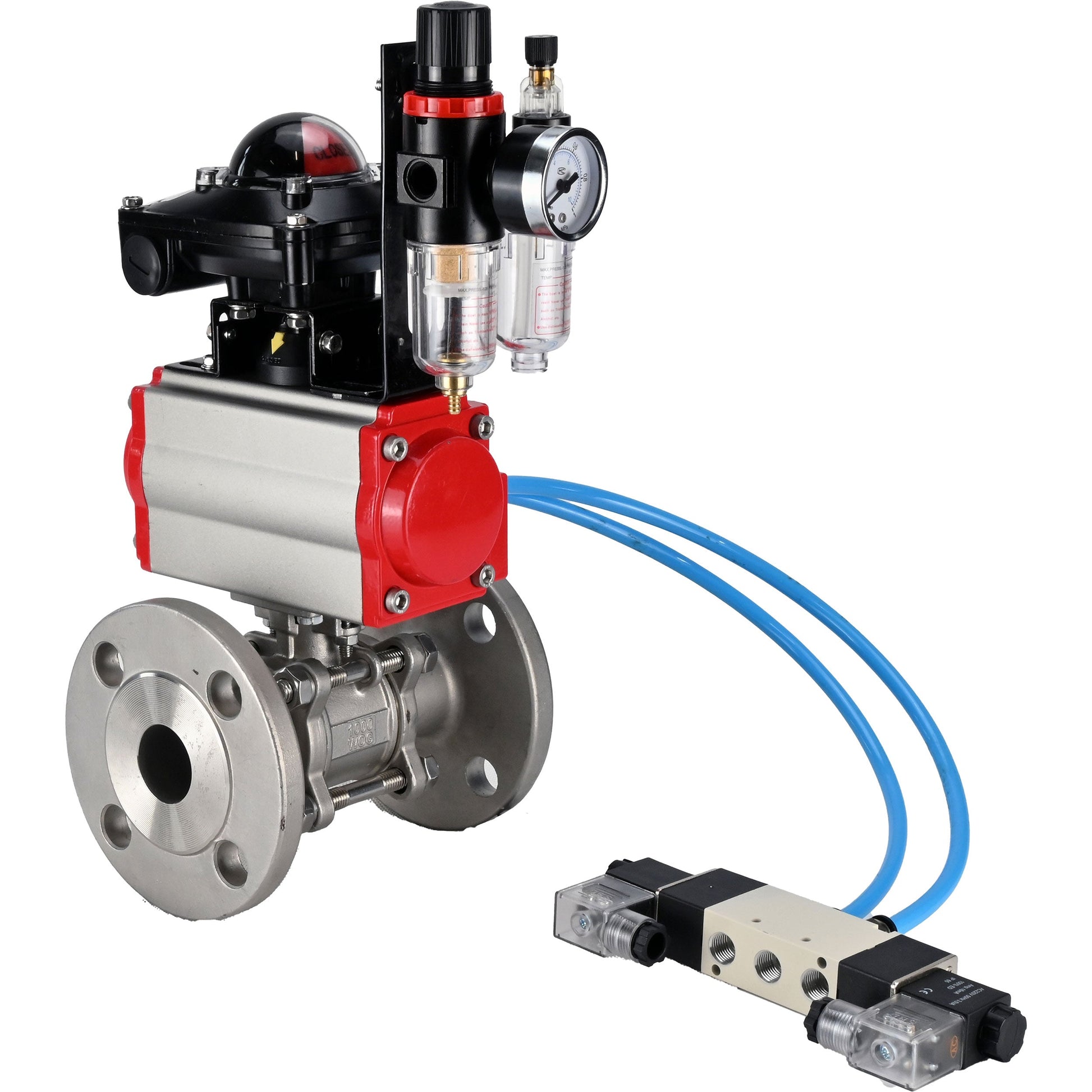

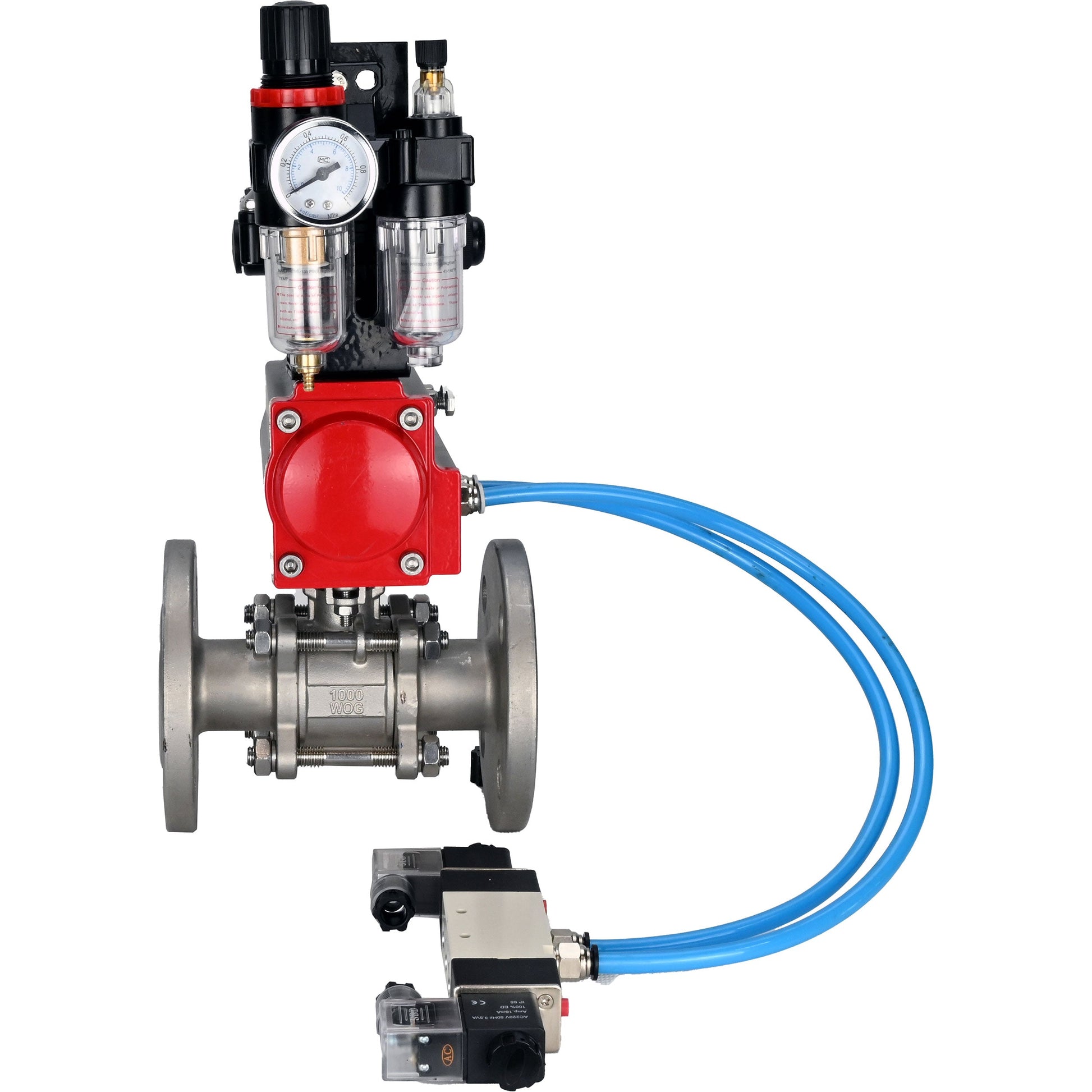

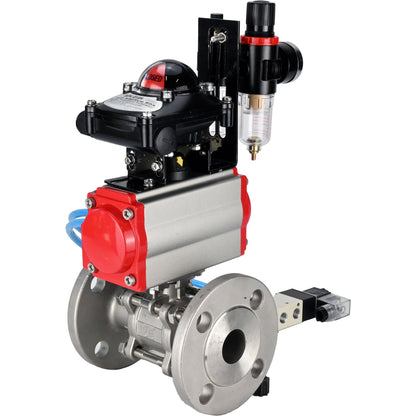

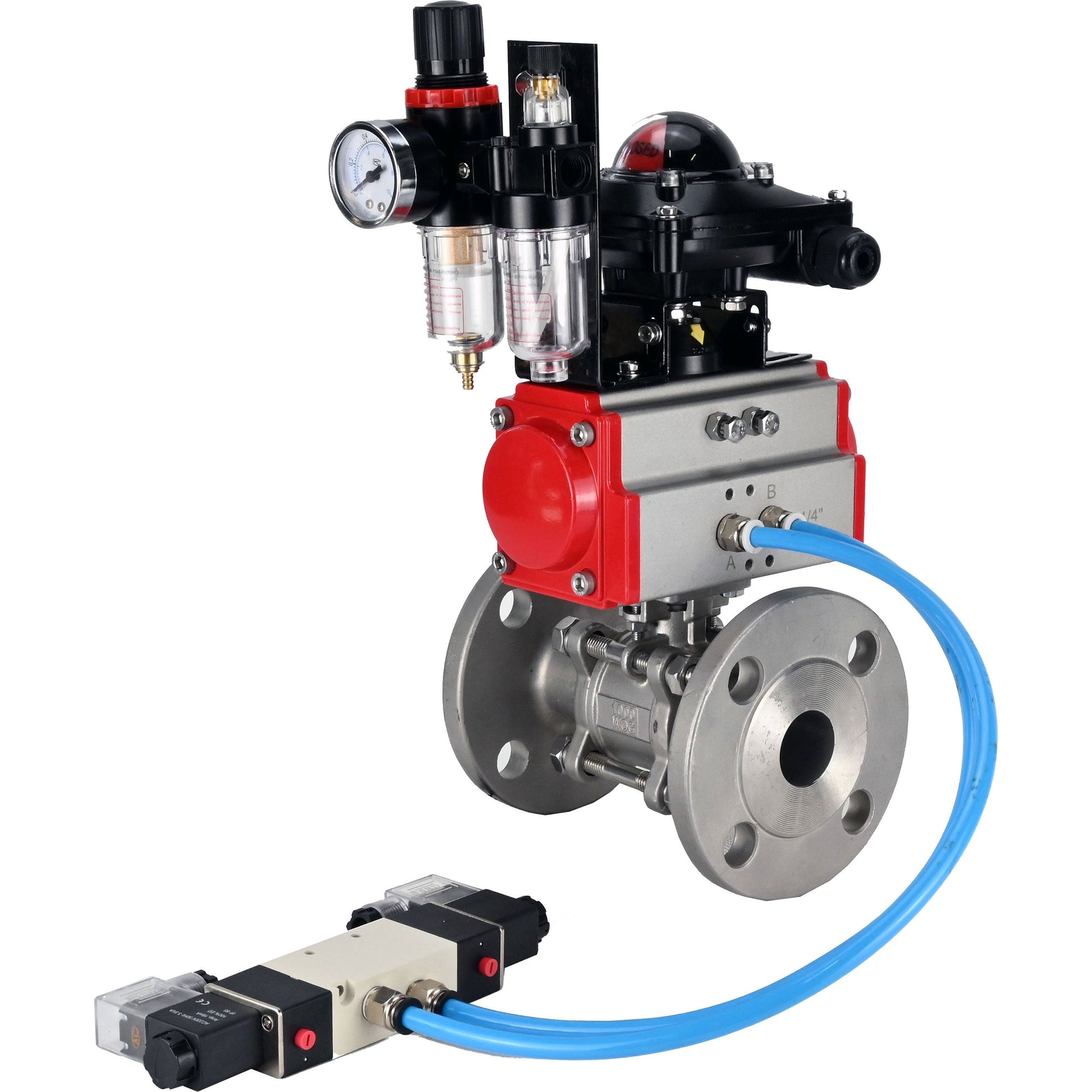

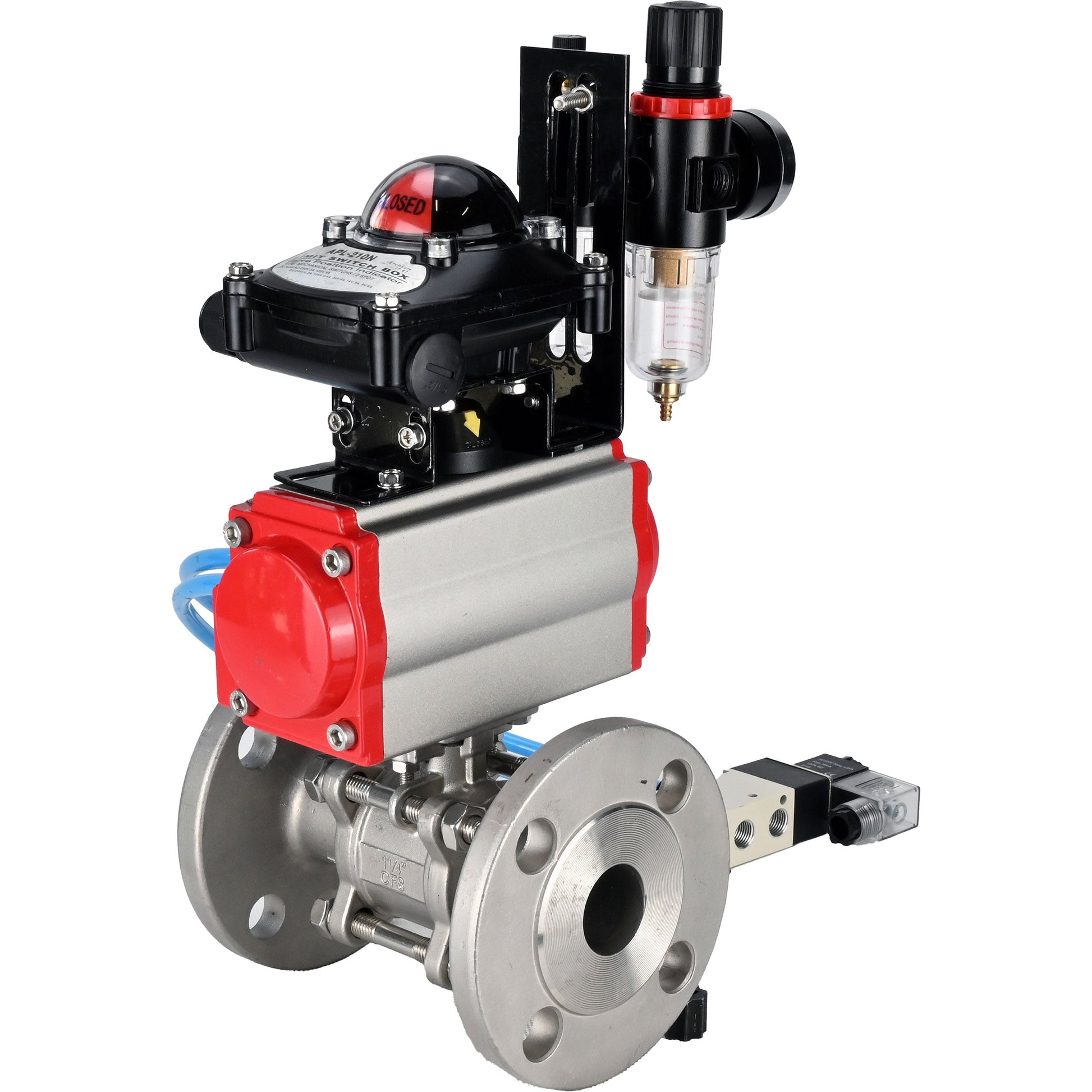

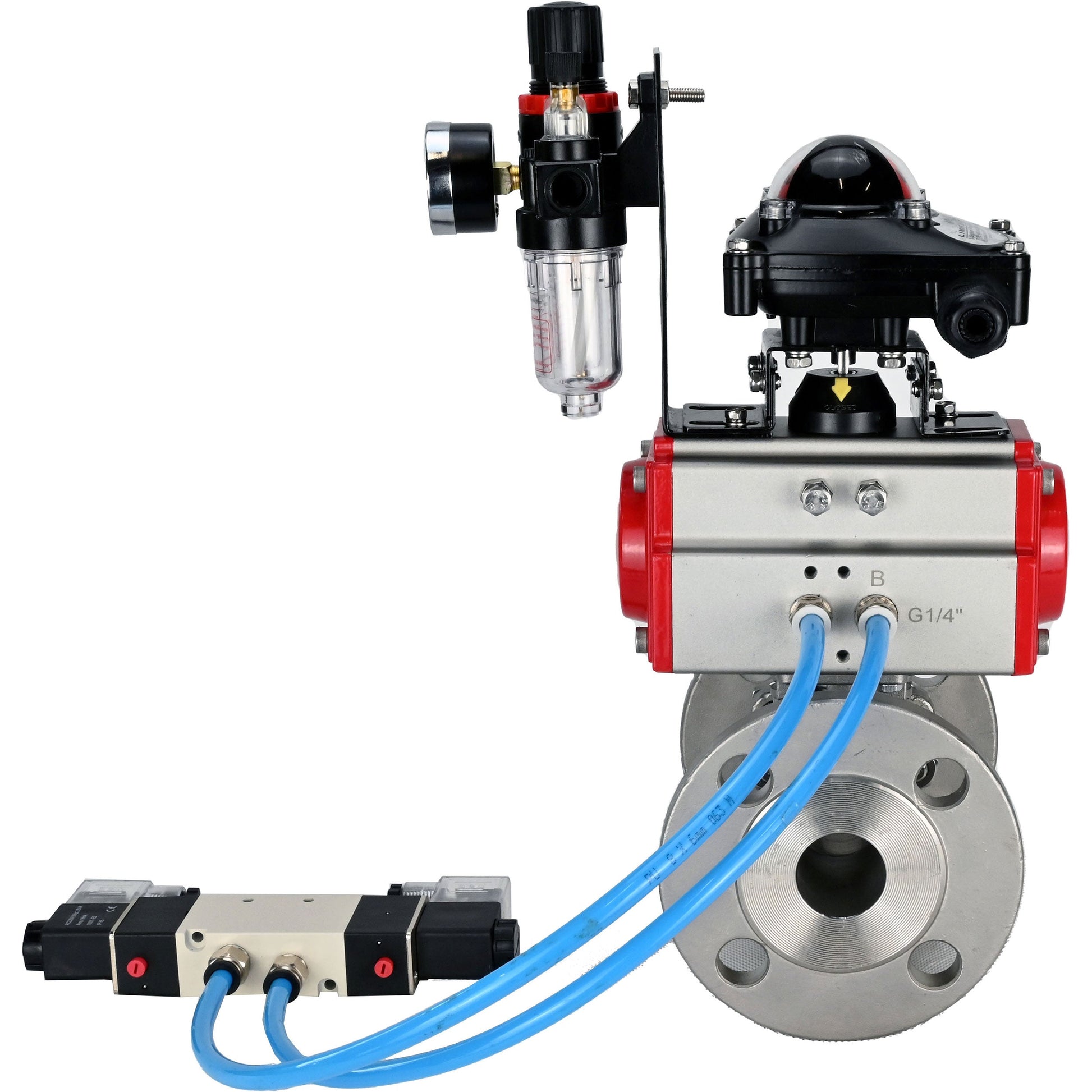

Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-10 220V, with LSU APL -210N, with ATU AFC2000

From $318.23 USD
From $318.23 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control with maximum torque up to 2128 Nm.

Technical parameters Ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Parameter Value
Operating Medium Temperature, °C -20 to 180
Application Water supply, heating, pneumatic systems
Working Medium Water, steam, petroleum products, liquid media, neutral media, gaseous media
Pipeline Connection Flanged
Water-drawing No
Passage Type Full bore
Ball Valve Tightness Class A
Control Type With pneumatic actuator
Connection Flanged
Actuation Pneumatic actuator with return springs
Presence of Limit Switches Yes
Presence of Pneumatic Distributor Yes
Warranty, years 1
Country of Manufacture China

Dimensions and dimensions Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

DN H, mm D, mm L, mm B1, mm E, mm ØD, mm ØD1, mm ØG, mm f, mm T, mm X, mm Y, mm
15 77 15 130 153 72 95 65 46 2 17 162 139
20 77 20 150 153 72 105 75 58 2 18 162 139
25 77 25 160 153 72 115 85 68 2 18 162 139
32 77 32 180 153 72 140 100 78 2 19 162 139
40 77 40 200 174 89 150 110 88 2 19 162 139
50 77 50 230 216 109 165 125 102 3 19 162 139
65 77 65 290 279 134 185 145 122 3 22 162 139
80 77 80 310 279 134 200 160 140 3 24 162 139
100 77 100 350 308 157 234 190 161 3 24 162 139
Краны шаровые DN.ru BV3131P(3pc)-FP-F-ISO-H Ду15-100 Ру16-40, трехсоставные полнопроходные фланцевые, нержавеющая сталь SS304, PTFE, с пневмоприводом PA-SA с возвратными пружинами, с пневмораспределителем 4V320-10 220В, с БКВ APL-210N, с БПВ AFC2000

Sketch Ball Valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Parts and materials table Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

№ Part Name Material Quantity
1 Body Stainless steel SS304 / SS316 1
2 Ball Valve Stainless steel S304 / S316 1
3 Bolt Stainless steel S201 / S304 4~6
4 Nut Stainless steel S201 / S304 6~12
5 Seal PTFE 1
6 Stem Stainless steel SS304 / SS316 1
7 Gland Stainless steel S201 / S304 1
8 Cover Steel WCB/CF8/CF8M 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1

Sketch Ball Valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Technical parameters of pneumatic actuator DNOVA

Parameter Value
Design With return springs
Operating Pressure, bar 6
Working Medium Filtered compressed air or non-aggressive gases, oils
Manual Override No

Dimensions and dimensions of pneumatic actuator DNOVA

Here's the table based on the provided data:

Model SA-065 SA-083 SA-105 SA-130 SA-140 SA-160
G, mm 15 15 25 25 30 30
M, mm 80 80 80 80 130 130
N, mm 30 30 30 30 30 30
F0, mm 34 34 41 62 62 62
P, mm 20 20 20 30 30 30
B1, mm 174 216 279 308 405 465
C, mm 36 46 55 67.5 76 87.5
E, mm 89 109 134 157 174 199
J 4-M6x10 4-M6x10 4-M8x12 4-M8x12 4-M10x16 4-M10x16
K 4-M8x12 4-M8x12 4-M10x16 4-M10x16 4-M12x20 4-M12x20
F, mm 26 26 26 36 36 38
A1, mm 125 152 189 210 268 310
D, mm 46 55 64 70 77 87.5
H F05 F05 F07 F10 F10 F10
I F07 F07 F10 F12 F12 F12
L 14x14 17x17 22x22 22x22 27x27 27x27

Sketch of dimensions and dimensions of pneumatic actuator DNOVA

Parts and materials table for pneumatic actuator DNOVA

№ Part Name Quantity Material Coating
1 Housing 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidized / Galvanized
5 Plugs 8 Stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 Engineering plastic
12 Ring 1 Engineering plastic
13 Washer 1 Stainless steel
14 Spring clamp 2 Stainless steel
15 Indicator 1 Plastic
16 Indicator housing 1 Plastic
17 Bearing 1 Engineering plastic
18 Cam 1 Steel Oxidized / Galvanized
19 Bearing 1 NBR
20 Bearing 1 Engineering plastic
21 Bearing 1 Engineering plastic
22 O-ring 2 NBR
23 O-ring 2 NBR
24 Bearing 2 Stainless steel
25 Adjustment nut 2 Stainless steel
26 Adjustment screw 2 Stainless steel
27 Bushing 2 Aluminum
Sketch of parts and materials of pneumatic actuator DNOVA




Technical parameters of pneumatic valve DNOVA 4V320-10 220V

Name Value
Type of pneumatic distributor Spool type
Model of pneumatic distributor 4V320-10 220V
Operating pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Switching frequency, cycle/sec 5

Technical parameters of limit switch unit DNOVA APL-210N

Name Value
Model of limit switch module APL-210N
Service life, years 10

Parts and materials table for DNOVA APL-210N EX limit switch unit

Model H L B D D1 M
APL-210N 77 112 88 10 5 20x1.5

Sketch of dimensions and dimensions of limit switch unit DNOVA

Main parameters of the DNOVA AFC2000 air treatment unit

Parameter Value
Working pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0.5 ÷ 9
Burst pressure, bar 15
Air connection 1/4"
Working temperature, °C from -5 to +60
Filtered particle size, μm 40
Oil viscosity ISO VG 32
Weight, kg 0.395
Set contents Filter-water separator, pressure regulator, lubricator, bracket

Sketch of BPV DNOVA AFC2000

Specifications

Country of origin
China
Port opening
full bore
Body material
Stainless steel AISI 304
Maximum allowable temperature
180 °C
Connection type
Flanged
Control type
Pneumatically actuated
Operating environment
Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
no
Torque
235 Nm
Limit switches
have
Type of pneumatic actuator
spring loaded

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
