Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

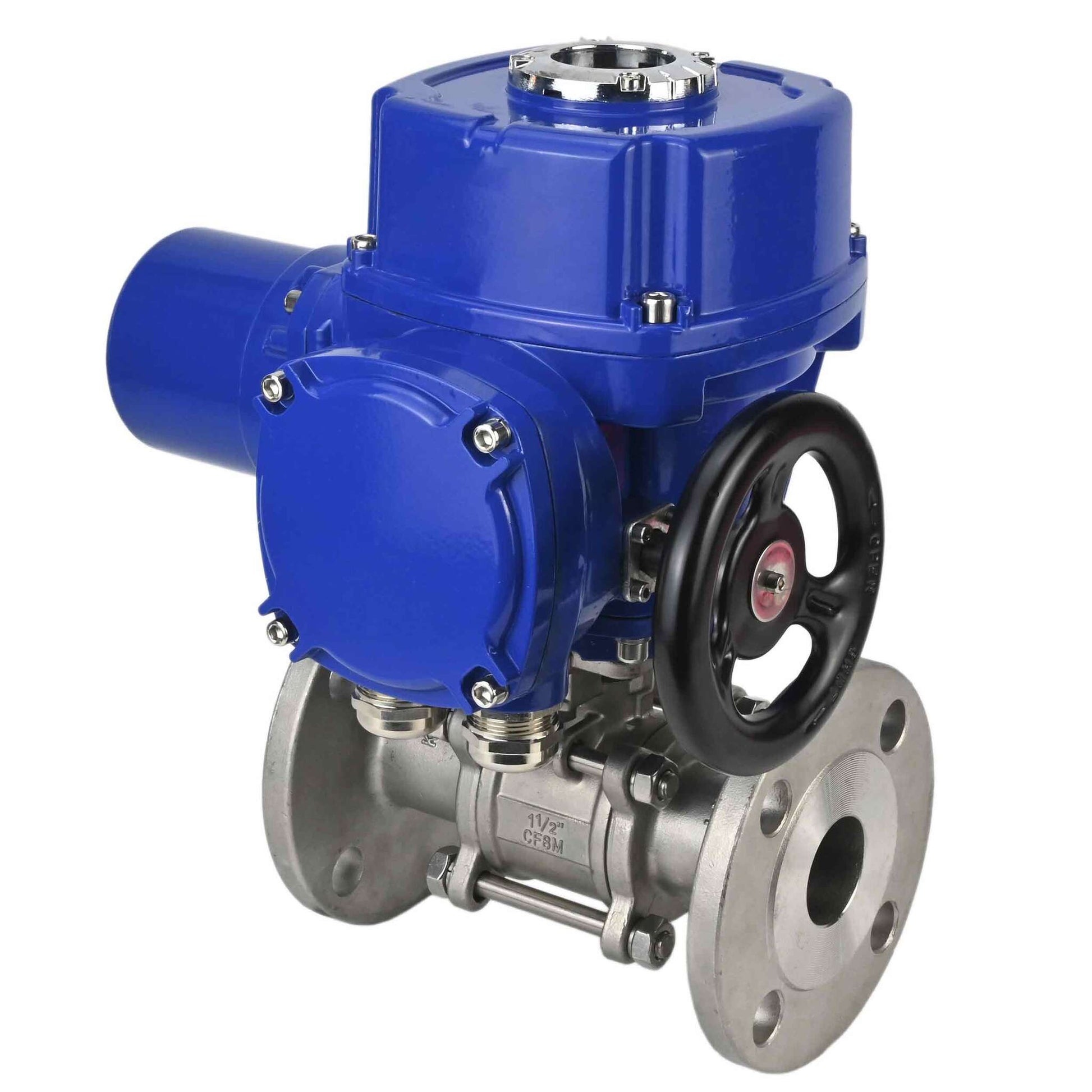

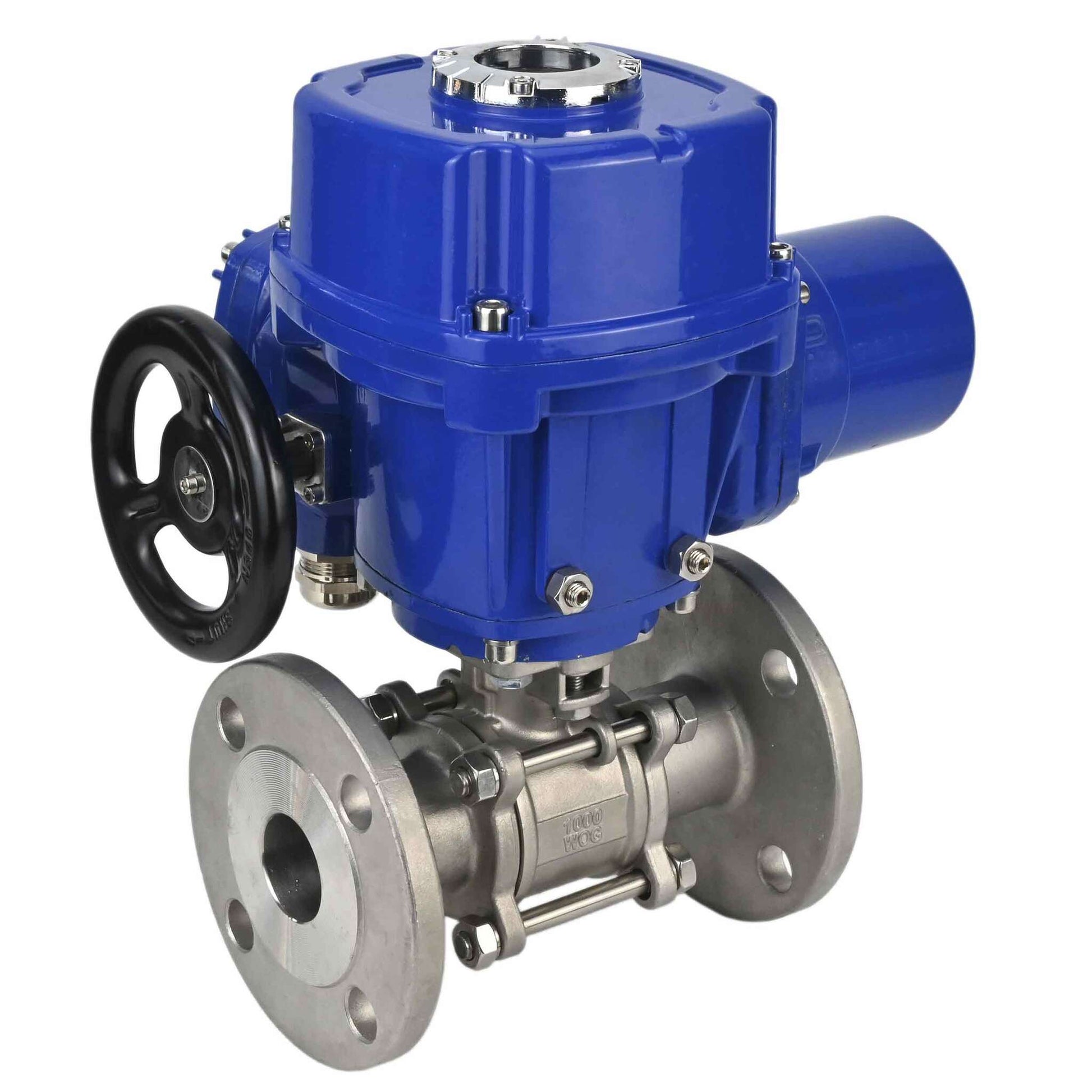

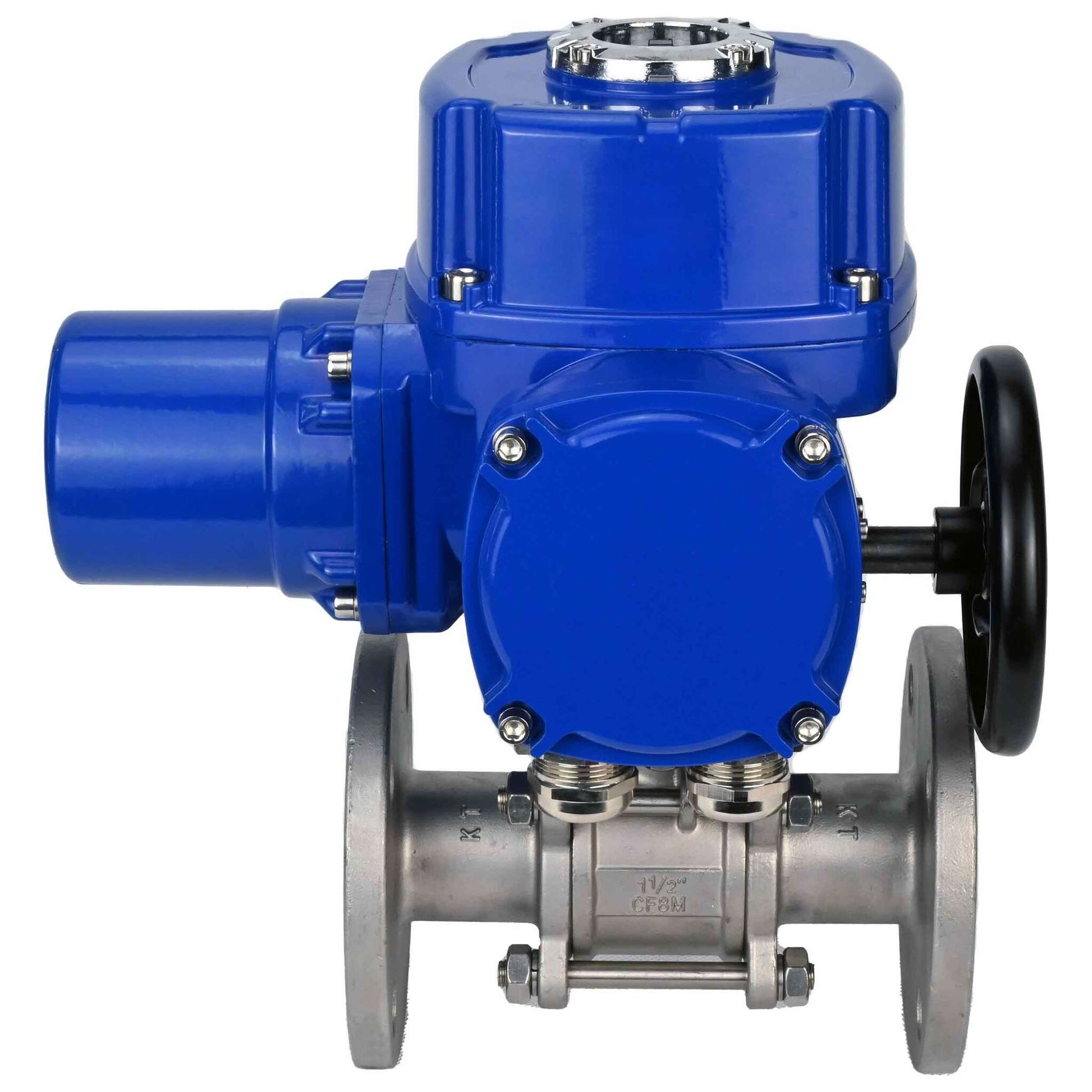

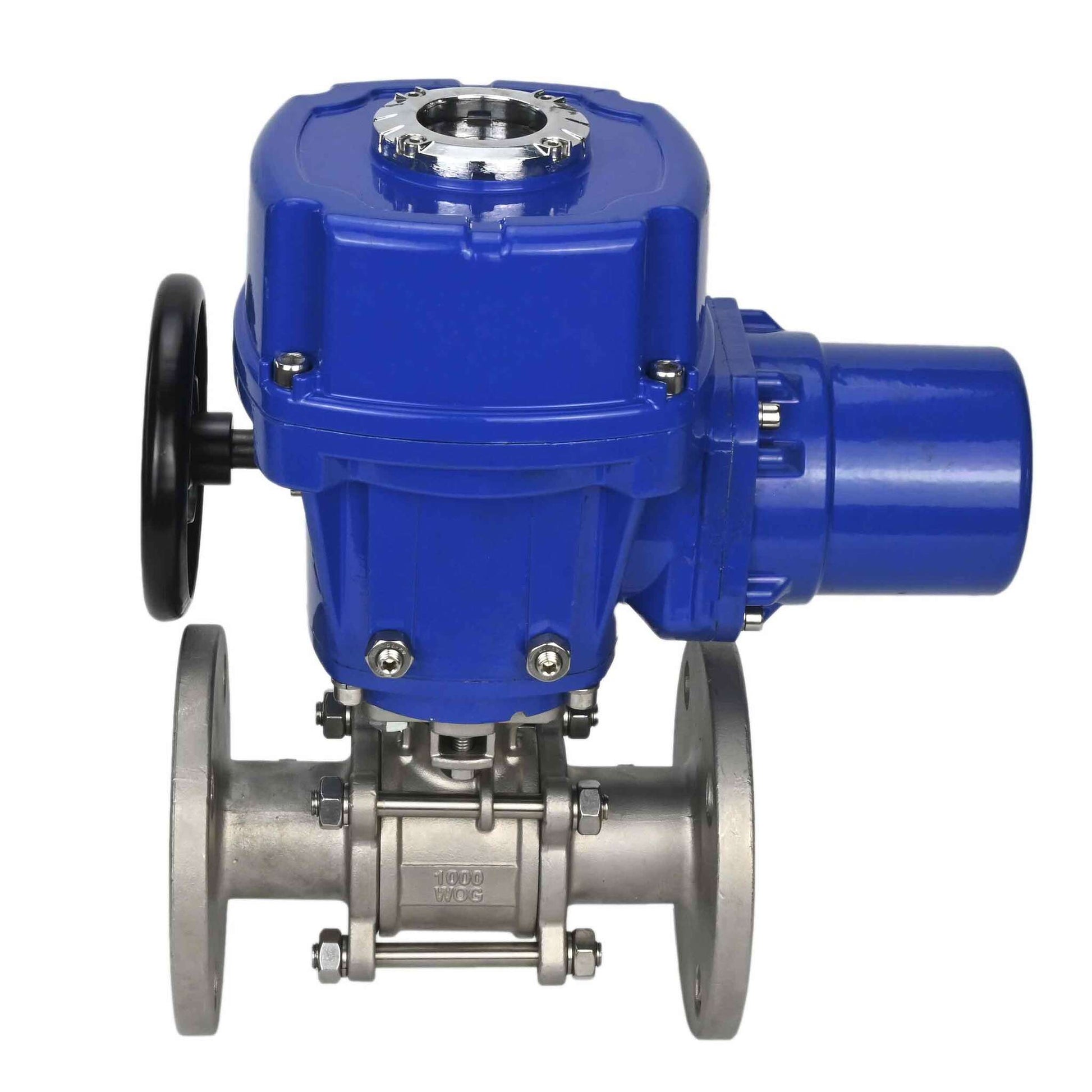

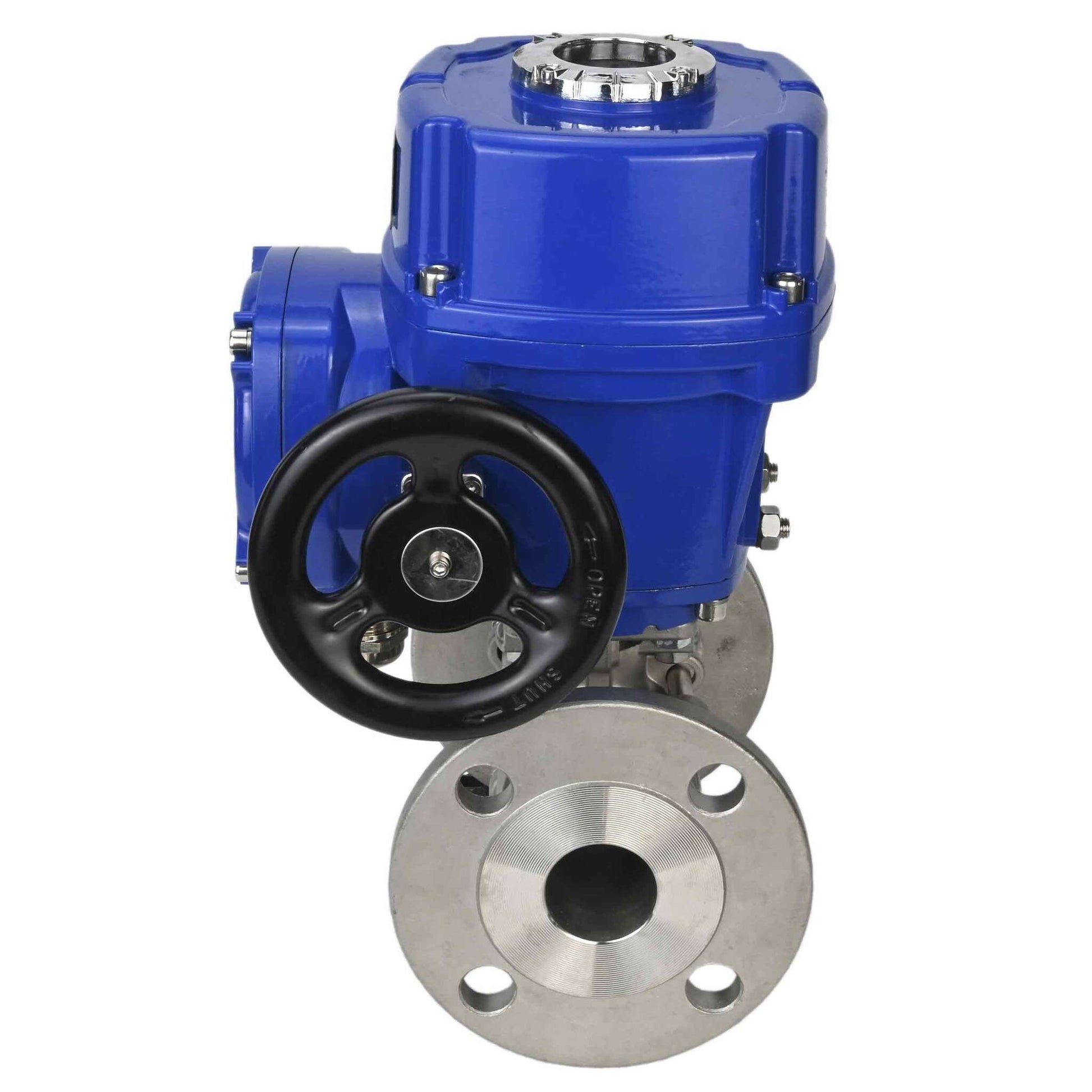

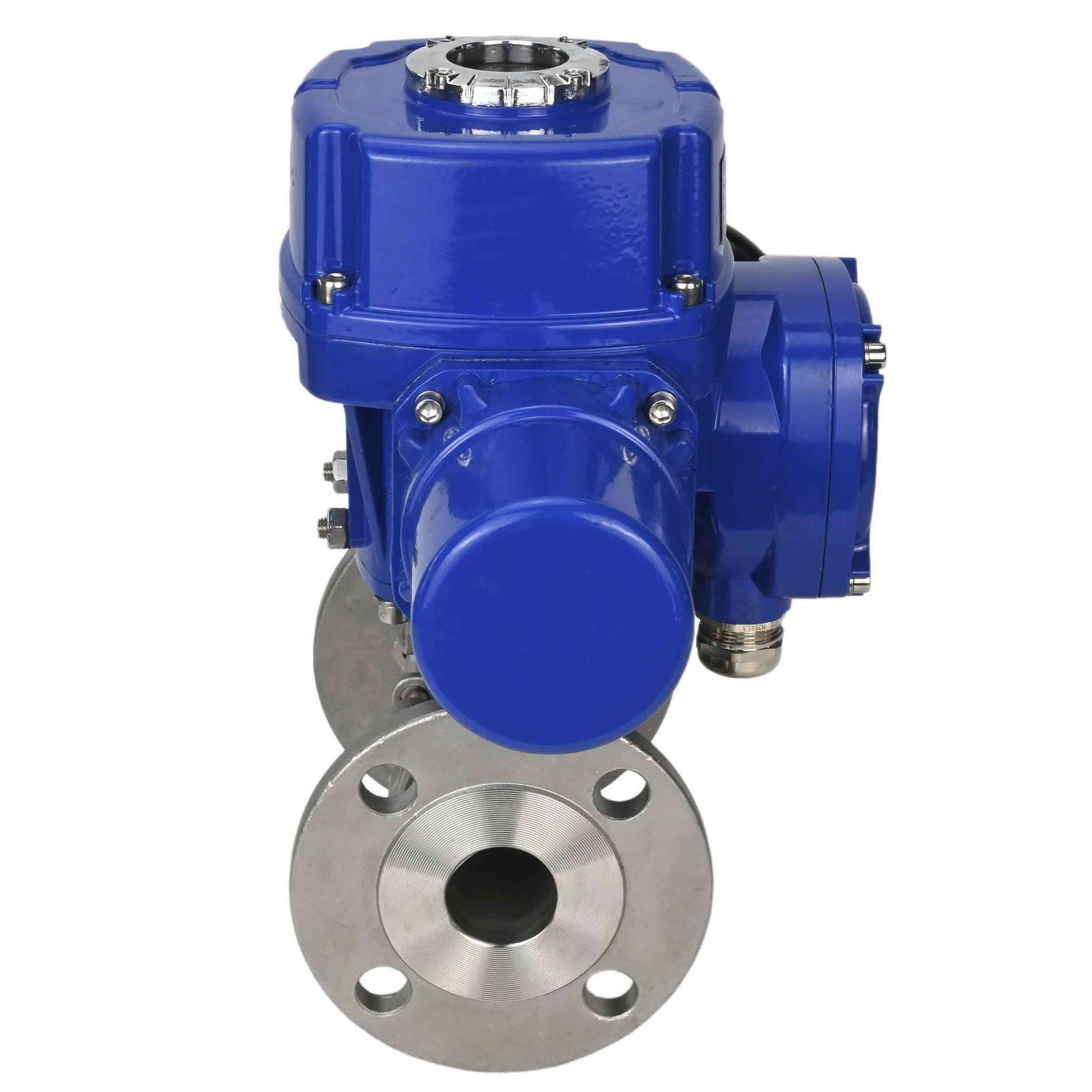

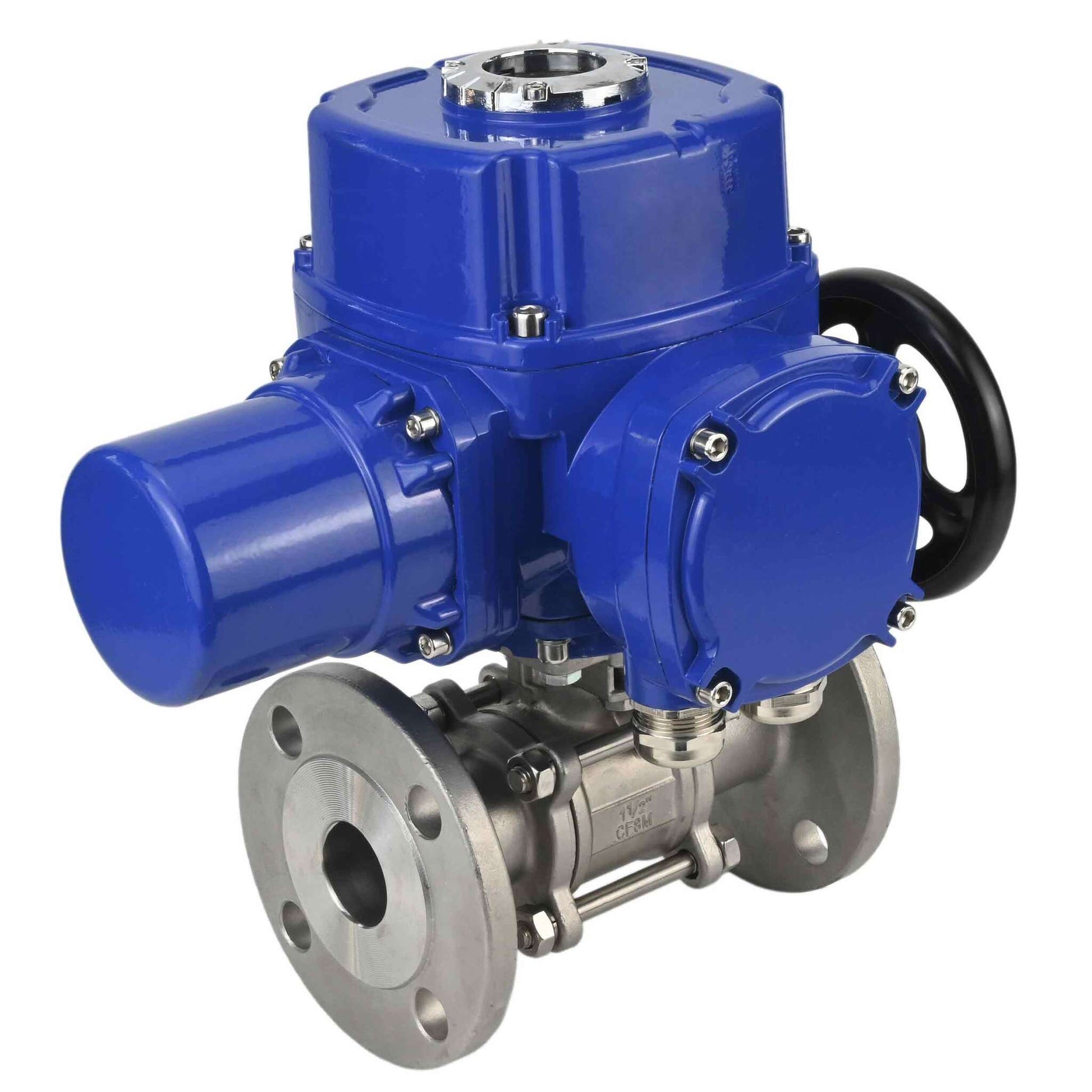

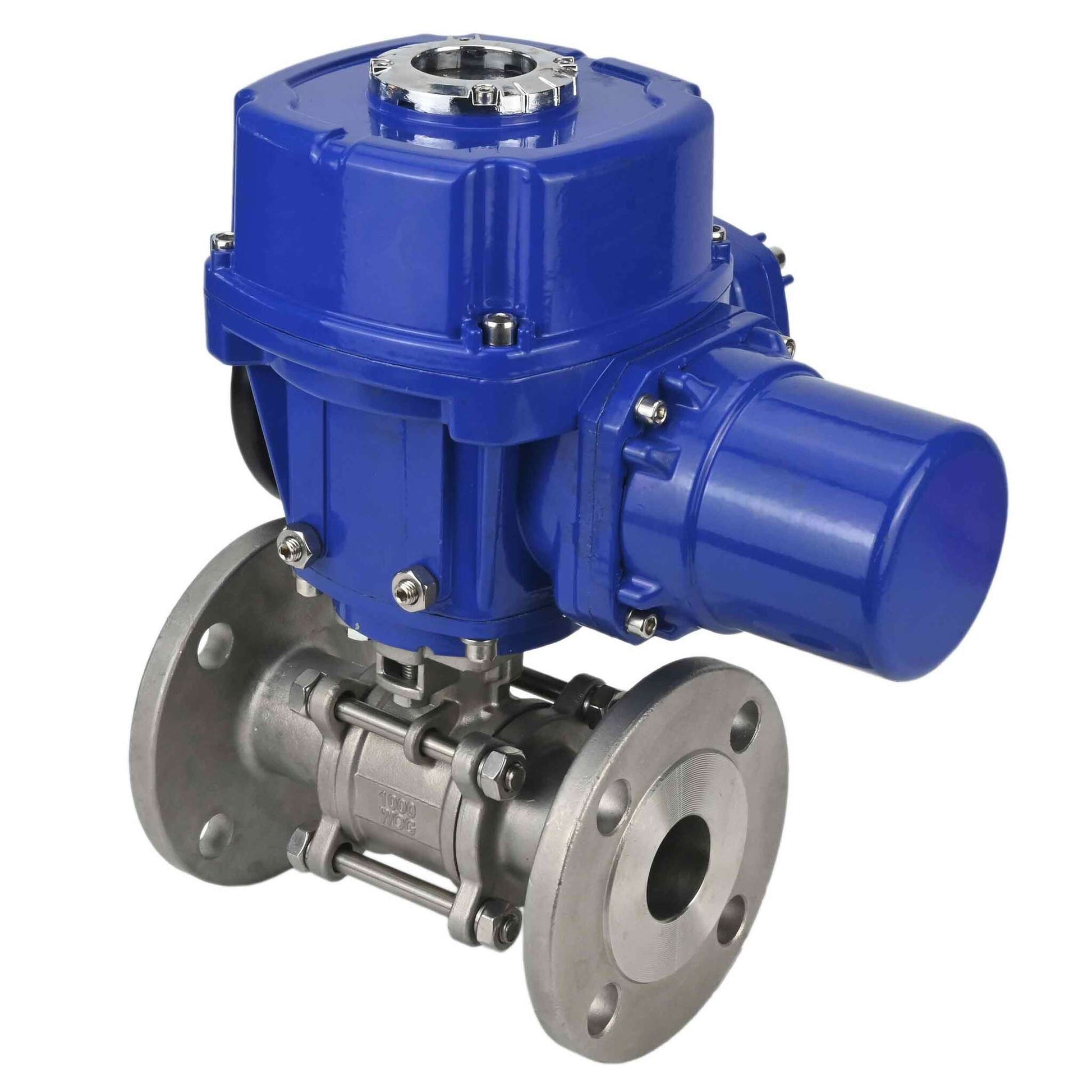

Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H are used as shut-off valves in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Electric quarter-turn actuators DNOVA are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgical, food industries, housing and utilities, etc.
Technical data of ball valves DNOVA BV3131P(3pc)-FP-F-F-ISO-H QT-N-M-O2-220VAC-U1
| Nominal diameter DN, mm | 15-100 |
| Working pressure PN, bar |
DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment |
Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
Sketch of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H QT-N-M-O2-220VAC-U1
Overall and installation dimensions of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H QT-N-M-O2-220VAC-U1
| DN | Model | D | L±1.5 | L1 | H |
| 15 | QT-W (M)-005 | 95 | 130 | 215 | 281 |
| 20 | QT-W (M)-005 | 105 | 150 | 215 | 281 |
| 25 | QT-W (M)-005 | 115 | 160 | 215 | 281 |
| 32 | QT-W (M)-005 | 140 | 180 | 215 | 281 |
| 40 | QT-W (M)-005 | 150 | 200 | 215 | 281 |
| 50 | QT-W (M)-005 | 165 | 230 | 215 | 281 |
| 65 | QT-W (M)-010 | 185 | 290 | 215 | 281 |
| 80 | QT-W (M)-020 | 200 | 310 | 270 | 276 |
| 100 | QT-W (M)-030 | 234 | 350 | 270 | 276 |
| 100 22х22, F10 | QT-W (M)-020 | 220 | 350 | 260 | 280 |
Detail sketch of ball valves DNOVA BV3131P(3pc)-FP-F-F-ISO-H QT-N-M-O2-220VAC-U1
Materials of parts of ball valves DNOVA BV3131P(3pc)-FP-F-F-ISO-H QT-N-M-O2-220VAC-U1
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | S304/S316 | 1 |
| 3 | Bolt | S201/S304 | 4-6 |
| 4 | screw | S201/S304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
Characteristics of QT-N-M-0-220VAC actuators
| Electric drive model |
Torque, Nm |
Cycle time, sec |
Power, W |
| QT-W (M)-005 220V | 50 | 30 | 25 |
| QT-W (M)-010 220V | 100 | 30 | 30 |
| QT-W (M)-015 220V | 150 | 30 | 40 |
| QT-W (M)-020 220V | 200 | 30 | 50 |
| QT-W (M)-030 220V | 300 | 30 | 60 |
| QT-W (M)-040 220V | 400 | 30 | 90 |
| QT-W (M)-060 220V | 600 | 30 | 120 |
| QT-W (M)-120 220V | 1200 | 30 | 180 |
| QT-W (M)-180 220V | 1800 | 30 | 250 |
| QT-W (M)-300 220V | 3000 | 60 | 370 |
| QT-W (M)-500 220V | 5000 | 60 | 550 |
| Electric drive model |
Current, A |
Weight, kg |
Rod size square, mm |
| QT-W (M)-005 220V | 0.35 | 7.6 | 17x17 |
| QT-W (M)-010 220V | 0.48 | 7.8 | 17x17 |
| QT-W (M)-015 220V | 0.55 | 8 | 17x17 |
| QT-W (M)-020 220V | 0.65 | 12.7 | 22x22 |
| QT-W (M)-030 220V | 0.75 | 12.8 | 22x22 |
| QT-W (M)-040 220V | 0.95 | 13 | 22x22 |
| QT-W (M)-060 220V | 1,1 | 21.2 | 27x27 |
| QT-W (M)-120 220V | 1.3 | 23.2 | 27x27 |
| QT-W (M)-180 220V | 1.5 | 23.5 | 27x27 |
| QT-W (M)-300 220V | 1.6 | 37.5 | 36x36 |
| QT-W (M)-500 220V | 1.7 | 38 | 36x36 |
Wiring diagram for actuator QT-N-M-0-220VAC
