Description
Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disc by 90°. Opening is performed by turning the handle anti-clockwise, closing - clockwise.
DNOVA pneumatic double-acting rotary actuators PA-DA-XXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

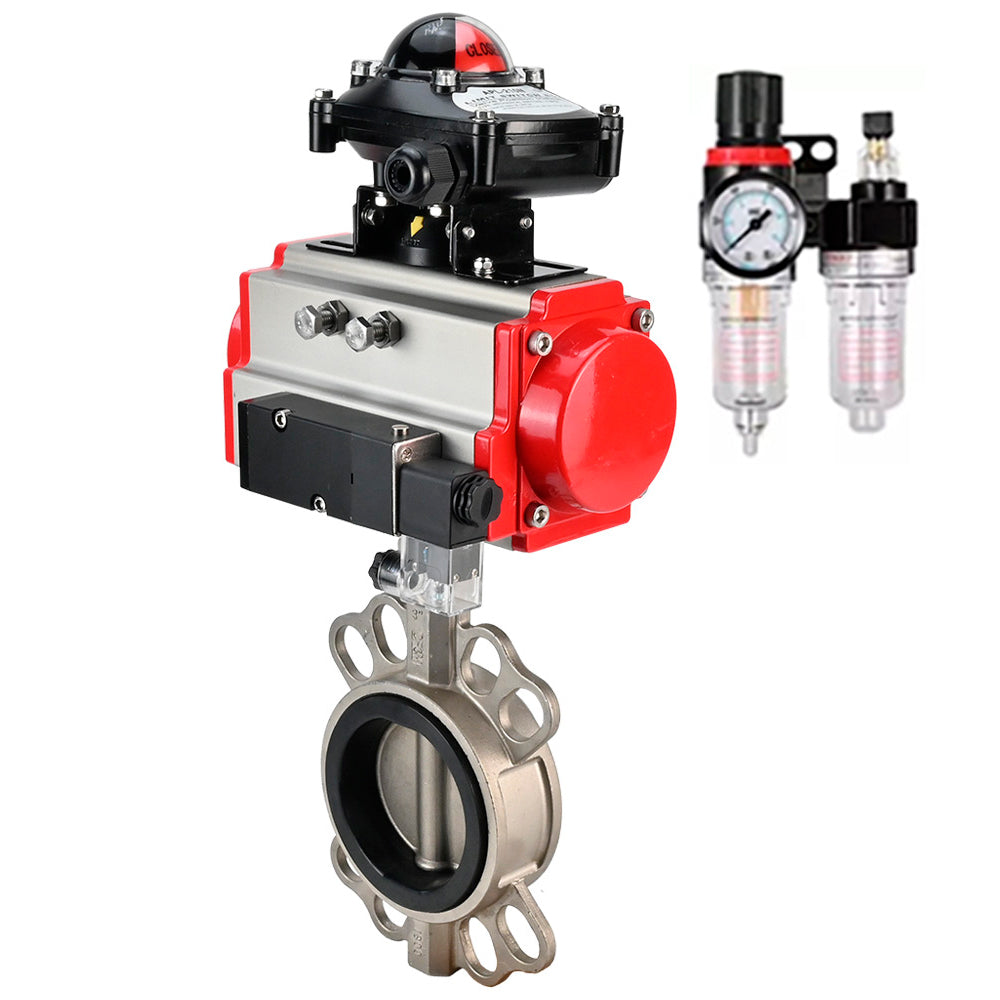

Technical characteristics of butterfly valves DNOVA WBV3131V-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - Viton
| Specification | Value |
|---|---|
| Valve Type | Rotary disc |
| Diameter | 50-250 mm |
| Nominal Pressure | 16 bar |
| Operating Medium Temperature | from -20 to +200°C |
| Application | Water supply, Heating, Chemical industry, Oil and gas industry, Food industry, Pulp and paper industry |
| Connection Type | Wafer-type |
| Control Type | Pneumatic actuator |
| Tightness Class | A |
| Country of Manufacture | China |
| Service Life | 10 years |
| Warranty | 12 months |
Dimensions and dimensions of butterfly valves DNOVA WBV3131V-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - Viton
| Size | A, mm | B, mm | C, mm | PCD, mm | ØD, mm | H, mm | Q° |
| DN50 | 72.5 | 130.5 | 43 | 125 | 19 | 220 | 45 |
| DN65 | 77.5 | 146.5 | 46 | 145 | 19 | 220 | 45 |
| DN80 | 92 | 156 | 46 | 160 | 19 | 220 | 22.5 |
| DN100 | 109 | 168.5 | 52 | 180 | 19 | 260 | 22.5 |
| DN125 | 127 | 190.5 | 56 | 210 | 19 | 260 | 22.5 |
| DN150 | 141 | 213.5 | 56 | 240 | 23 | 260 | 22.5 |
| DN200 | 166 | 246.5 | 60 | 295 | 23 | - | 15 |
| DN250 | 203 | 283 | 68 | 355 | 28 | - | 15 |
| DN300 | 236 | 318 | 78 | 410 | 28 | - | 15 |
Table of parts and materials for butterfly valves DNOVA WBV3131V-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - Viton
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel 304 |
| 2 | Disc | Stainless steel 304 |
| 3 | Seat Seal | Viton |
| 4 | Shaft | Stainless steel SS 416 |
| 5 | Handle | Carbon steel |
Parts and materials sketch for butterfly valves DNOVA WBV3131V-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - Viton
Technical parameters of pneumatic actuator DNOVA
| Characteristic | Value |
|---|---|
| Pneumatic Actuator Type | Double-acting |
| Actuator Torque | 30-272 Nm |
| Nominal Pressure | 12 bar |
| Operating Pressure | 2...8 bar |
| Maximum Particle Diameter | Less than 30 µm² |
| Working Medium | Filtered compressed air or non-aggressive gases, oils |
| Adjustment Range | ± 5° for rotation at 0° and 90° |
| Air Supply Connection | G1/4" |
| Operating Temperature Range | -20 to +80 °C |
| Connection Type | ISO 5211 |
Dimensions and dimensions of pneumatic actuator DNOVA
| Model | A | B | C | D | E | F | G | M | N | O | P |
| PA-DA(SA)-052 | 108 | 153 | 30 | 41 | 72 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-065 | 125 | 174 | 36 | 46 | 89 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-083 | 152 | 216 | 46 | 55 | 109 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-105 | 189 | 279 | 55 | 64 | 134 | 26 | 25 | 80 | 30 | 41 | 20 |
| PA-DA(SA)-130 | 210 | 308 | 67.5 | 70 | 157 | 36 | 25 | 80 | 30 | 62 | 30 |
| PA-DA(SA)-140 | 268 | 405 | 76 | 77 | 174 | 36 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-160 | 310 | 465 | 87.5 | 87.5 | 199 | 38 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-210 | 390 | 542 | 113 | 113 | 257 | 38 | 40 | 130 | 30 | 79 | 30 |
| PA-DA(SA)-270 | 510 | 722 | 146 | 146 | 333 | 38 | 52 | 130 | 30 | 79 | 30 |
Sketch of dimensions and dimensions of pneumatic actuator DNOVA
Parts and materials table for pneumatic actuator DNOVA
| № | Name | Qty | Material | Coating |
|---|---|---|---|---|
| 1 | Housing | 1 | Extruded aluminum | Hard anodized |
| 2 | Side plugs | 2 | Cast aluminum | |
| 3 | Gear | 1 | Stainless steel | Nickel-plated |
| 4 | Piston | 2 | Steel/Aluminum | Oxidation/Galvanic zinc coating |
| 5 | Plugs | 8 | Stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | Spring steel | Epoxy coating |
| 8 | Piston bearing | 2 | Engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Stop ring | 2 | Engineering plastic | |
| 12 | Ring | 1 | Engineering plastic | |
| 13 | Washer | 1 | Stainless steel | |
| 14 | Spring clamp | 2 | Stainless steel | |
| 15 | Indicator | 1 | Plastic | |
| 16 | Indicator housing | 1 | Plastic | |
| 17 | Bearing | 1 | Engineering plastic | |
| 18 | Cam | 1 | Steel | Oxidation/Galvanic zinc coating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | Engineering plastic | |
| 21 | Bearing | 1 | Engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | Stainless steel | |
| 25 | Adjustment nut | 2 | Stainless steel | |
| 26 | Adjustment screw | 2 | Stainless steel | |
| 27 | Bushing | 2 | Aluminum |
Sketch of rotary pneumatic actuators DNOVA
Technical parameters of pneumatic valve DNOVA 4V320-10 220V
| Characteristic | Value |
|---|---|
| Pneumatic Valve Model | 4V320-10 220V |
| Supply Voltage | 220V |
| Valve Type | Spool-type |
| Nominal Pressure | 12 bar |
| Operating Pressure | 1.5...8 bar |
| Ambient Temperature | -5 to +50 °C |
| Working Medium | Purified air (filtration 40 μm) |
| Actuation Frequency | 5 cycles/s |
| Protection Class | IP65 |
| Control Type | Double-solenoid |
| Body Material | Aluminum alloy and technopolymer |
| Response Time | 0.05 s |
| Working Channel Diameter | 3/8" |
Dimensions and dimensions of DNOVA 4V320-10 220V pneumatic directional control valve
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| H, mm | 82.4 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
Technical parameters of limit switch unit DNOVA APL-410N EX
| Characteristic | Value |
|---|---|
| Model of Limit Switch Box | APL-410N EX |
| Protection | Weatherproof IP65, Explosion-proof Exd IIB T6 |
| Ambient Temperature | -25°C to +80°C |
| Cable Entry Thread | 2 x NPT 1/2” |
| Terminal Block | 8 terminals 0.05-2.5 mm² |
| Rated Current | 10 A |
| Rated Voltage | 250V |
| Switches/Sensors | Two mechanical switches / Two proximity sensors |
| Full Rotation Angle | 90° |
| Service Life | 10 years |
Dimensions and dimensions of limit switch unit DNOVA APL-410N EX
| A, mm | 177 |
| B, mm | 174 |
| C, mm | 178 |
| D, mm | 101 |
| E, mm | 76 |
| F, mm | 57 |
| G, mm | 55 |
| H, mm | 23 |
| I, mm | 27 |
| J, mm | 3 |
| K, mm | 4 |
| d1, mm | 5 |
| d2, mm | 9.5 |
Technical parameters of DNOVA AFC2000 air treatment unit
| Characteristic | Value |
|---|---|
| Operating Pressure | 8 bar |
| Maximum Pressure | 10 bar |
| Adjustable Pressure Range | 0.5...9 bar |
| Burst Pressure | 15 bar |
| Operating Temperature | -5°C to +60°C |
| Air Connection | 1/4" |
| Filtered Particle Size | 40 µm |
| Oil Viscosity | ISO VG 32 |
Dimensions and dimensions of DNOVA AFC2000 air treatment unit
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
