Description
Ball valves DNOVA - full bore DNOVA are used as shut-off valves in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. The use of ball valves DNOVA as regulating valves is not allowed.
Electric actuators of GZ-OF(K) and GZ-OF(M) type of general purpose are used for control of industrial shut-off valves with quarter-turn shut-off valve and are installed indoors, under a canopy and outdoors. The actuator can operate in systems of automatic regulation of technological processes. Setting position of the actuator: any.

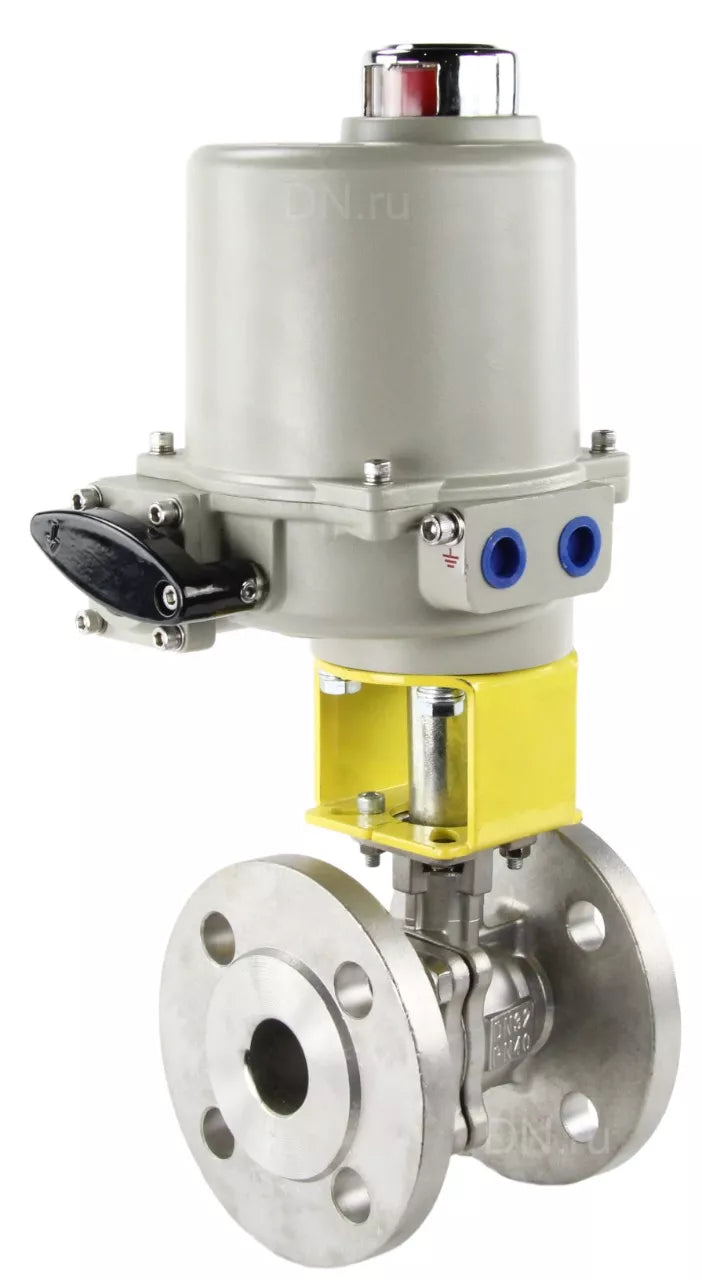

Overall and installation dimensions of ball valve DNOVA KShFP.316.200 stainless steel full bore flanged with electric actuator GZ-OF 24V
| DN | L | H | D | D1 | d | S2 | S1 | S3 | ØM | Weight with drive |
| 15 | 114 | 252 | 89 | 65 | 35 | 202 | 141 | 122 | 14 | 6.88 |
| 20 | 120 | 257 | 98 | 75 | 43 | 202 | 141 | 122 | 14 | 7.3 |
| 25 | 125 | 262 | 108 | 85 | 51 | 202 | 141 | 122 | 14 | 8.4 |
| 32 | 130 | 267 | 117 | 100 | 64 | 202 | 141 | 122 | 18 | 10.1 |
| 40 | 140 | 335 | 127 | 110 | 73 | 265 | 195 | 194 | 18 | 17.1 |
| 50 | 150 | 282 | 152 | 125 | 92 | 202 | 141 | 122 | 18 | 13.4 |
| 65 | 170 | 360 | 178 | 145 | 105 | 265 | 195 | 194 | 18 | 22.1 |
| 80 | 178 | 370 | 191 | 160 | 127 | 265 | 195 | 194 | 18 | 25.6 |
Sketch of overall and installation dimensions of ball valve DNOVA KShFP.316.200 stainless steel full bore flanged with electric actuator GZ-OF 24V
Design and materials of ball valve DNOVA KShFP.316.200 stainless steel full bore flanged with electric actuator GZ-OF 24V
| № | Name | Material |
| 1 | Case | stainless steel SS316 |
| 2 | Ball seal | RPTFE |
| 3 | Char | stainless steel SS316 |
| 4 | Bolt | stainless steel SS304 |
| 5 | Sealing | PTFE |
| 6 | Nut | stainless steel SS304 |
| 7 | Pipe | stainless steel SS316 |
| 8 | Stem | stainless steel SS316 |
| 9 | gland | PTFE |
| 10 | Stem seal | PTFE |
| 11 | gland | stainless steel SS304 |
| 12 | Nut | stainless steel SS304 |
Material sketch of ball valve DNOVA KShFP.316.200 stainless steel full bore flanged with electric actuator GZ-OF 24V
Electrical diagram and main technical characteristics of the electric drive GZ-OF.V 24V
| Unit designation | Output torque, N*m | Operating time, sec. | ISO connection type | Weight |
| GZ-OF-25/5,5(K) | 25 | 5,5 | F07 | 14 |
| GZ-OF-45/11(K) | 45 | 11 | F07 | 14 |
| GZ-OF-80/21(K) | 80 | 21 | F07 | 14 |
| GZ-OF-70/5,5(M) | 70 | 5,5 | F07, F10 | 15 |
| GZ-OF-110/11(M) | 110 | 11 | F07, F10 | 15 |
| GZ-OF-150/22(M) | 150 | 22 | F07, F10 | 15 |
| GZ-OF-120/7(M) | 120 | 7 | F07, F10 | 16 |
Specifications
