Fittings for Piping Systems: Types, Selection, and Applications
Introduction to Piping System Fittings
Piping systems are an essential part of a variety of industries, ranging from chemical processing and oil and gas to water treatment and HVAC systems. These systems rely heavily on fittings, which are used to connect, redirect, or control the flow of fluids, gases, or other substances through pipes. Fittings help to ensure the proper functioning of the system by allowing pipes to change direction, branch off into other lines, or connect to various types of equipment.
Choosing the correct fitting is crucial for system reliability, safety, and performance. This article explores the different types of fittings used in piping systems, their applications, materials, and important factors to consider when selecting the right fittings for specific requirements.
1. Overview of Piping Fittings
Piping fittings are components that are designed to join sections of pipe, adapt to different pipe sizes, change the direction of fluid flow, or control the flow in a system. These fittings come in a variety of shapes and sizes, and they are typically made from materials that are compatible with the fluid or gas being transported.
The primary functions of piping fittings include:
- Connecting Pipes: Fittings help connect sections of pipes in a manner that ensures a tight and leak-free joint.
- Changing Direction: Some fittings are designed to change the direction of the pipe, such as elbows or bends.
- Reducing or Expanding Pipe Size: Reducing or expanding fittings allow for a smooth transition between different pipe diameters.
- Branching: Fittings like tees allow a branch to be added to the main pipeline.
The choice of fitting depends on factors such as the type of fluid, pressure, temperature, and the overall design of the piping system.

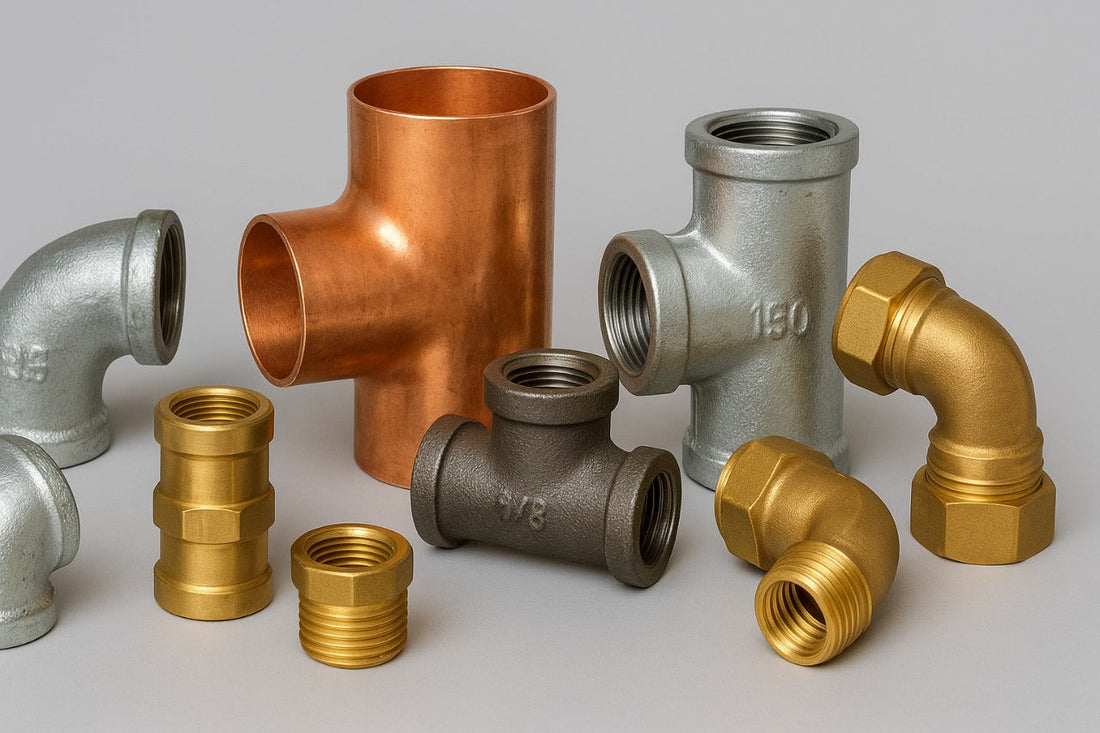

2. Types of Piping Fittings
Piping fittings come in a variety of forms, each suited to different functions and applications. Below are some of the most commonly used types of piping fittings, along with their features and typical uses.
2.1 Elbows
Elbows are used to change the direction of flow in a piping system. They are commonly used to connect two sections of pipe at an angle, typically 90 degrees, but they can also come in 45-degree and other angles.
- Design: Elbows are typically made in two common styles: short radius and long radius. The radius refers to the distance from the center of the pipe to the center of the elbow.
- Applications: Elbows are used in various systems, including plumbing, chemical, and HVAC systems, where a change in the direction of fluid flow is needed.
| Type | Angle | Applications | Advantages |
|---|---|---|---|
| 90-degree elbow | 90° | Pipe systems requiring a sharp turn | Space-saving, easy to install |
| 45-degree elbow | 45° | Less abrupt changes in direction | Reduces friction and pressure loss |
| Long-radius elbow | Various | Large-scale industrial systems | Smooth flow, reduced turbulence |
2.2 Tees
Tees are used to create a branch in the pipeline, allowing for the splitting or merging of fluid flow. They are available in a variety of sizes and angles.
- Design: A tee fitting has a straight-through flow with a branch that extends from the side.
- Applications: Tees are commonly used in systems that require the diversion or merging of fluid, such as water distribution, oil and gas pipelines, and chemical processing.
| Type | Application | Advantages |
|---|---|---|
| Equal Tee | Used where the branch pipe is the same size as the main pipe | Simplicity and cost-effective for equal-sized pipes |
| Reducing Tee | Used where the branch pipe is smaller than the main pipe | Allows for transition between different pipe sizes |
2.3 Couplings
Couplings are used to join two pipes of the same or different diameters together. They provide a strong, secure connection, and are often used in situations where the pipes need to be aligned properly.
- Design: Couplings can be threaded, welded, or flanged, and they can come in both rigid and flexible types.
- Applications: These fittings are used when sections of piping need to be connected securely in systems such as water distribution, plumbing, and heating.
| Type | Applications | Advantages |
|---|---|---|
| Threaded Coupling | Connecting pipes with threads | Easy to install, no welding required |
| Welded Coupling | Connecting pipes where welding is required | Provides a permanent, strong connection |
2.4 Reducers
Reducers are fittings used to change the diameter of a pipe, allowing the system to transition between different pipe sizes. They are crucial for managing flow rates and pressure within a system.
- Design: Reducers can be concentric (symmetrical) or eccentric (off-center), depending on the application.
- Applications: Reducers are commonly used in industrial systems such as those found in refineries, chemical plants, and HVAC systems, where changes in pipe size are required for flow control or pressure regulation.
| Type | Size Transition | Applications | Advantages |
|---|---|---|---|
| Concentric Reducer | Symmetrical | Where a gradual change in size is needed | Smooth transition and less turbulence |
| Eccentric Reducer | Asymmetrical | Used in systems requiring a smooth flow without air pockets | Prevents air accumulation in the pipeline |
2.5 Caps and Plugs
Caps and plugs are used to close the ends of pipes, either temporarily or permanently. They are important for maintenance, repairs, or when the flow needs to be stopped at the end of a system.
- Design: Caps fit over the ends of pipes, while plugs fit inside.
- Applications: Used in temporary shutdowns, during construction, or when a pipeline section is being sealed for maintenance.
| Type | Applications | Advantages |
|---|---|---|
| Pipe Cap | Closing off pipe ends temporarily or permanently | Easy to install and remove |
| Pipe Plug | Sealing pipes for testing or maintenance | Ideal for sealing pipes during inspection |
2.6 Unions
Unions are used to connect and disconnect pipes with ease, particularly in cases where regular maintenance is required. They can be installed without the need for special tools or equipment.
- Design: Unions consist of three parts: two coupling halves and a nut that holds them together. They are often used when parts need to be easily disassembled.
- Applications: Unions are commonly used in plumbing and HVAC systems, where flexibility for future disassembly is important.
| Type | Applications | Advantages |
|---|---|---|
| Standard Union | Plumbing systems, pumps | Quick assembly and disassembly without welding |
| Heavy-duty Union | Industrial applications with large pipes | Provides a secure and permanent connection |
3. Factors to Consider When Selecting Fittings
When selecting piping fittings, it's crucial to take into account several factors to ensure that the fitting is appropriate for the system's design and operational needs.
3.1 Material Compatibility
The material of the fitting should be compatible with the materials being transported through the system. Common materials include:
- Stainless Steel: Used for its corrosion resistance in harsh environments.
- Carbon Steel: Commonly used for water and oil applications.
- Plastic (PVC, CPVC, PEX): Ideal for lower-pressure systems, where flexibility and cost-effectiveness are essential.
- Copper: Used in water systems, particularly in plumbing.
3.2 Pressure and Temperature Conditions
Fittings must be chosen based on their pressure and temperature ratings. If the system involves high-pressure fluids or extreme temperatures, fittings should be rated accordingly to prevent failure or leaks.
3.3 System Flow Requirements
The type of flow (laminar, turbulent) and the required flow rate must also influence the choice of fittings. Some fittings cause more resistance to flow (e.g., elbows), while others are designed to minimize resistance (e.g., long-radius elbows).
3.4 Pipe Size and Configuration
Fittings must match the size and configuration of the existing piping. The correct fitting size ensures that the system operates efficiently and that the pipes are properly connected.
4. Conclusion
Piping system fittings play an integral role in the design, construction, and maintenance of industrial and commercial piping systems. Whether connecting, diverting, or controlling the flow of fluids, choosing the right fitting ensures system integrity, reduces maintenance needs, and increases operational efficiency. By understanding the various types of fittings, their functions, and the critical factors to consider during selection, professionals can make informed decisions that enhance the performance and safety of piping systems across industries.
