How to Choose Industrial Valves for the Chemical Industry: A Practical Guide
The selection of the right industrial valve is vital for ensuring the efficiency, safety, and durability of chemical processing systems. With various valve types, materials, and designs to consider, the process can seem overwhelming. This article will break down the key factors to consider when selecting valves for the chemical industry, offering a structured approach to valve selection.

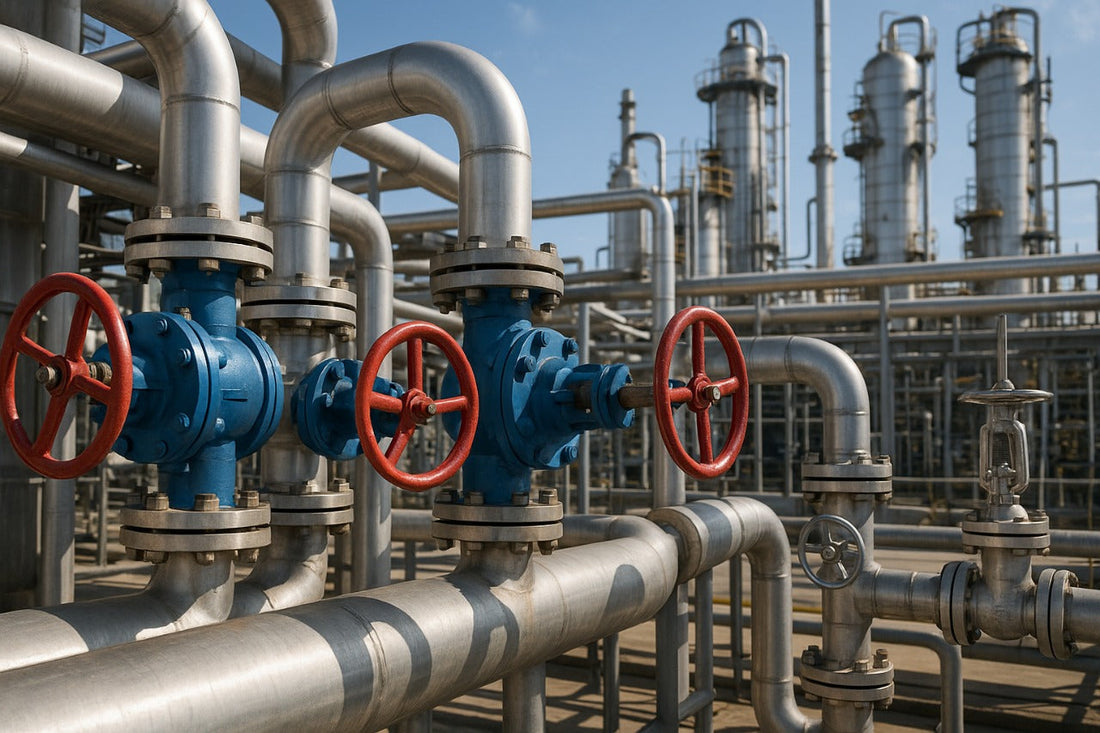

1. Understanding Industrial Valves in the Chemical Industry
Industrial valves are mechanical devices that regulate the flow of fluids or gases within a system. They control the rate, pressure, and direction of flow, which are critical for the safe and efficient operation of industrial processes, particularly in the chemical industry.
1.1 Key Valve Functions
- On/Off Control: Simple valves that allow or stop the flow of fluids.
- Regulation of Flow: Valves that help maintain a consistent flow rate.
- Pressure Control: Some valves are designed to manage and release pressure in a system.
- Isolation: For shutting off parts of the system for maintenance or safety.
2. Types of Industrial Valves
There are many types of valves used in the chemical industry, each designed for specific functions. Here are the most common valve types:
| Valve Type | Function | Best Use Case |
|---|---|---|
| Ball Valve | On/Off control and flow regulation | High-flow applications where full closure is needed. |
| Gate Valve | On/Off control with little flow resistance | Isolation in large pipeline systems. |
| Globe Valve | Flow regulation and throttling | Precise flow control in smaller systems. |
| Check Valve | Prevents backflow of fluid | Protection against reverse flow in pipelines. |
| Butterfly Valve | On/Off control and flow regulation in medium to large pipes | Space-saving, used in large-diameter pipelines. |
| Pressure Relief Valve | Manages system pressure by releasing excess pressure | Safety in systems where pressure can build to dangerous levels. |
3. Factors to Consider When Choosing Valves for the Chemical Industry
Selecting the right valve involves considering a variety of factors related to the specific needs of the chemical process and system.
3.1 Chemical Compatibility
One of the most important considerations when choosing a valve for the chemical industry is material compatibility. The valve must be made from materials that will not degrade or react with the fluids or gases being transported. Common materials include:
- Stainless Steel: Ideal for most chemicals due to its resistance to corrosion.
- Cast Iron: Often used for water-based applications.
- Plastic and Elastomers: Suitable for less aggressive chemicals.
3.2 Pressure and Temperature Conditions
Valves need to be selected based on the operating conditions of the system. This includes both pressure and temperature ranges, as these conditions directly affect valve performance and longevity.
- Pressure Rating: Valves are rated to handle certain pressure levels. Overpressure can lead to failure.
- Temperature Rating: Valves must be capable of handling the temperature extremes in the process.
3.3 Flow Characteristics
The type of flow control required in the system plays a key role in valve selection. Flow can be classified into:
- Laminar Flow: Smooth, non-turbulent flow, typically at low velocities.
-
Turbulent Flow: High velocity, chaotic flow.
Valves must be selected to optimize flow conditions and prevent issues such as cavitation or flow-induced vibrations.
3.4 Valve Size and Configuration
The size of the valve must match the diameter of the pipeline and the required flow capacity. Valves come in various sizes, from small quarter-turn valves to large industrial models. Additionally, configurations like inline or angle valves may be required based on the installation needs.
3.5 Automation and Control Features
In modern chemical plants, valves are often automated for remote operation and precise control. Automated valves are typically integrated with control systems like SCADA or DCS, providing real-time data on pressure, temperature, and flow rates. Automation is essential for reducing human error and improving system efficiency.
4. Valve Material Selection
Materials used in valve construction must be compatible with the fluid in the system, as well as the conditions of pressure and temperature. Below is a table summarizing common valve materials and their best-use scenarios:
| Material | Best Use | Advantages | Disadvantages |
|---|---|---|---|
| Stainless Steel | Chemicals, high-temperature fluids, corrosive environments | Excellent corrosion resistance, durability | Expensive, can corrode in some extreme conditions |
| Cast Iron | Low to medium pressure applications, water systems | Cost-effective, durable | Prone to corrosion under harsh conditions |
| Bronze | Seawater and marine applications, mild chemicals | Good corrosion resistance, low friction | Less suitable for high temperatures |
| Plastic (PVC/CPVC) | Non-corrosive chemicals, low-pressure systems | Cost-effective, lightweight, excellent corrosion resistance | Limited temperature tolerance, brittle in extreme conditions |
| Alloy 20 | Highly corrosive applications (sulfuric acid) | Exceptional resistance to sulfuric acid | Expensive, not suitable for all applications |
5. Industry Standards and Certifications
When selecting industrial valves, ensure they meet the relevant industry standards and certifications for safety, quality, and reliability. Common standards include:
- ISO 9001: Quality management standards.
- API 600: Specification for gate valves used in the petroleum industry.
- ASME B16.34: Standard for valve design, material, and pressure-temperature ratings.
- CE Marking: Indicates conformity with European Union regulations.
6. Installation and Maintenance Considerations
Ease of installation and maintenance should be factored into the valve selection process. Valves that are easy to install, maintain, and repair can significantly reduce operational downtime and maintenance costs. For example:
- Manual Valves: Require regular inspection and manual operation, suitable for applications where automation is not needed.
- Automated Valves: Require electrical connections and might involve more complex maintenance but can greatly improve system efficiency.
7. Conclusion
Choosing the right industrial valve for chemical processes is a critical decision that affects system efficiency, safety, and maintenance costs. By considering the valve type, materials, compatibility, operating conditions, and relevant industry standards, you can ensure the optimal performance of your chemical processing systems. Proper valve selection not only enhances system reliability but also contributes to operational cost savings over time.
