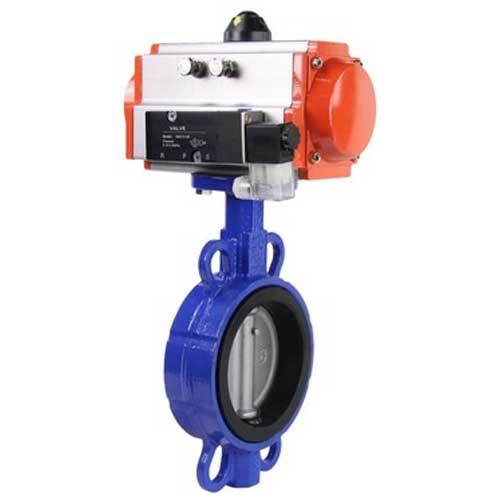

Water Butterfly Valve DNOVA st-316l-viton-sa-4m310-110/220, body material - carbon steel WCB, disk material - stainless steel AISI 316L, seal - VITON, pneumatic actuator operated

السعر العادي من $50.74 USD
السعر العادي سعر البيع من $50.74 USD
أُوكَازيُون نفذ
الضرائب متضمنة. يتم احتساب الشحن عند الخروج.
عرض التفاصيل الكاملة

محتوى قابل للطي

وصف

A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water. Water butterfly valves are commonly used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes. They are known for their compact design, lightweight construction, and ease of installation. These valves are often preferred for their quick operation, as the disc can be opened or closed with a simple quarter-turn motion. Butterfly valves can be operated manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic actuators to control the valve remotely. They are known for their low-pressure drop and relatively low cost compared to other types of valves. It's worth noting that water butterfly valves are specifically designed for use with water and compatible fluids. Different materials and designs may be required for valves intended for use with corrosive or high-pressure fluids. It's important to select the appropriate type of butterfly valve based on the specific application and fluid requirements.

DNOVA pneumatic actuators are designed for automation of industrial valve control process with maximum torque up to 2128 Nm. Pneumatic actuators can be mounted on various quarter-turn valves according to the instructions. The flanges must comply with iso 5211.

Basic parameters of gates:

Nominal diameter DN, mm 50 – 300
Nominal pressure PN, MPa (kg/cm2) 1.6 (16)
Direction of flow bilateral
Ambient temperature t, ⁰C From -20 to +200: for VITON
Working environment VITON: mineral and vegetable oils, animal fats, plastic lubricants and fuel, hot air, steam
Connection to the pipeline interflange

Basic parameters of pneumatic actuators:

    Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
    Working pressure, bar 2...8
    Working environment Filtered compressed air or non-aggressive gases, oils
    Maximum particle diameter Less than 30 µm2
    Operating temperature, °C from -20 to +80
    from -40 to +80 (low temperature version)
    from -20 to +160 (in dry air)
    Adjustment range ±5° for rotation at 0° and 90°
    Manual duplication There is
    Position indicator open/closed
    Operating environment indoors and outdoors (all internal and external parts have anti-corrosion coating)

    Main parameters of pneumatic distributors:

    Design spool type
    Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
    Working pressure, bar 1.5…8
    Working environment filtered compressed air
    Ambient temperature t, ⁰C from +5 to +50
    Response frequency 5 cycles/s
    Manual duplication There is
    Degree of protection IP 65
    Fastening through through holes in the body
    Body material anodized aluminum
    Response time 0.05 sec.


    تحديد

    بلد المنشأ
    China
    مادة الجسم
    Carbon steel
    أقصى درجة حرارة مسموح بها
    200 °C
    نوع الاتصال
    Compact flanged
    نوع التحكم
    Pneumatic actuator
    الضغط الاسمي
    16 bar
    نوع الختم
    VITON
    مادة القرص
    Stainless steel AISI 316L/1.4404
    الجهد
    110/220V
    مضاد للانفجار
    No
    عزم الدوران
    420 Nm
    مشغل هوائي
    Yes
    تجاوز يدوي
    No
    مفاتيح حد
    No
