In detail
What it is made of
How it works
Multi-turn electric actuator

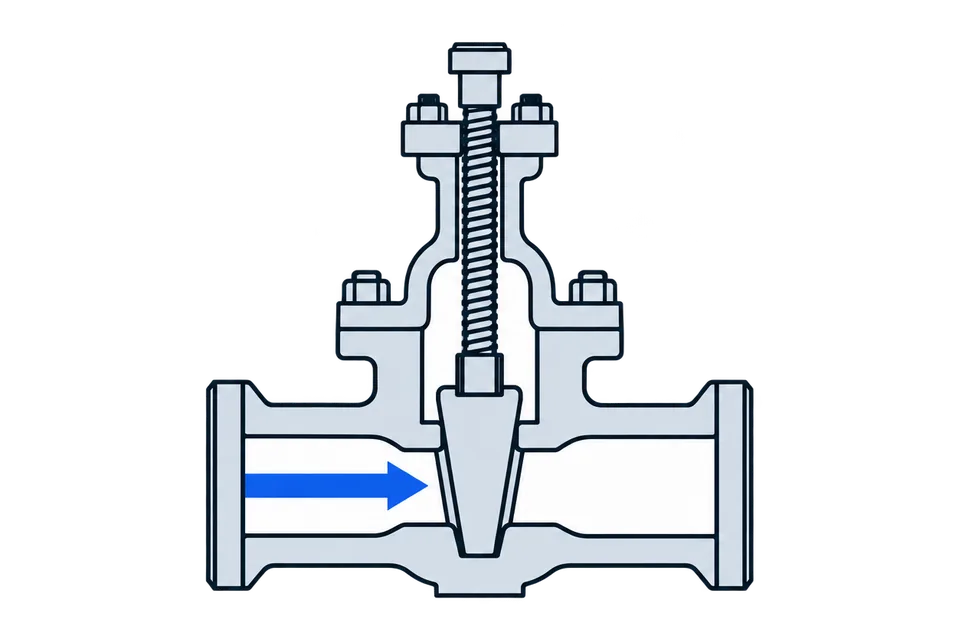

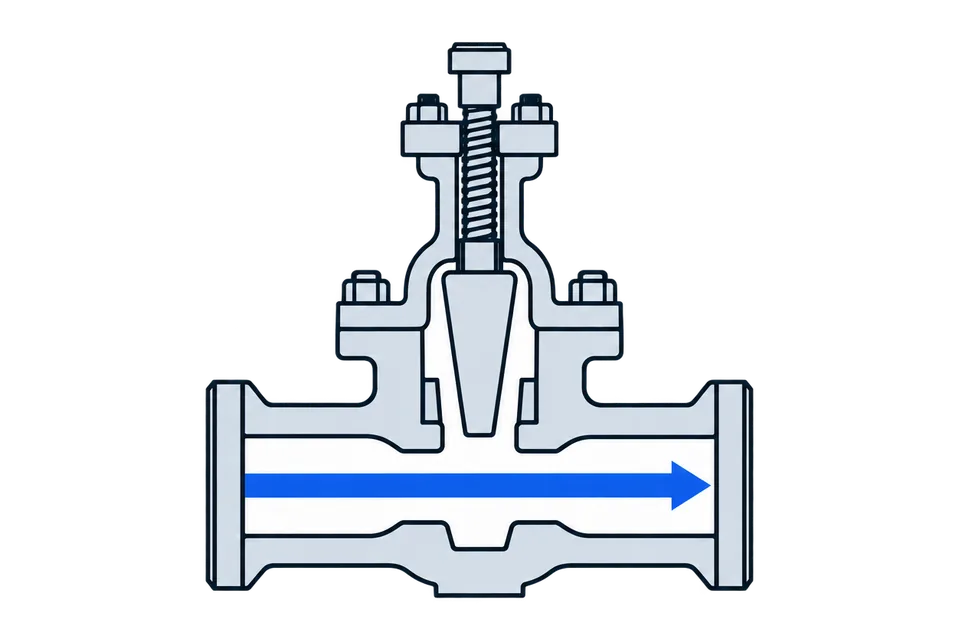

Non-rising-stem wedge gate
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Industrial Water
- Water Supply
- Heating
- Industry
The DNOVA wedge gate valve is designed for installation on pipelines as a shut-off device in water supply systems and chemical industry.
Electric multi-turn actuator DNOVA is designed to automate the process of controlling industrial valves, as well as to determine the position of the valve shut-off body.
Technical parameters of wedge valves DNOVA GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-220VAC-U1 five-jaw
|
Nominal diameter DN, mm |
50–250 |
|
Operating pressure PN, bar |
10, 16 |
|
Working medium temperature t, °C |
From 0 to 80 |
|
Working medium |
Water, lightly contaminated liquids with up to 5% suspended particles |
|
Flow direction |
Two-way |
|
Type of control |
For electric actuator |
|
Connection to pipeline |
Flanged |
|
Body material |
Cast iron GGG50 |
|
Closing element material (wedge) |
Cast iron GGG50 (with EPDM rubber lining) |
|
Areas of application |
Heating and water supply systems; industrial pipelines |
|
Service life, years |
10 |
Dimensions of wedge valves DNOVA GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-220VAC-U1 five-jaw
| DN | L, mm | D, mm | D1, mm | H, mm | L1, mm |
| 50 | 150 | 165 | 125 | 258 | 411 |
| 65 | 170 | 185 | 145 | 258 | 411 |
| 80 | 180 | 200 | 160 | 258 | 411 |
| 100 | 190 | 220 | 180 | 258 | 411 |
| 125 | 200 | 250 | 210 | 258 | 411 |
| 150 | 210 | 285 | 240 | 258 | 411 |
| 200 | 230 | 340 | 295 | 290 | 470 |
| 250 | 250 | 405 | 350 | 290 | 470 |
Table of parts and materials of wedge valves DNOVA GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-220VAC-U1 five-jaw
|
№ |
Part name |
Material |
|
1 |
Body |
Cast iron GGG50 |
|
2 |
Wedge |
Cast iron GGG50 + EPDM |
|
3 |
Stem nut |
Brass |
|
4 |
Stem |
Stainless steel SS420 |
|
5 |
Cover |
Cast iron GGG50 |
|
6 |
Ring |
Brass |
Technical parameters of electric actuators MT-N-EM-O2-220VAC five cam actuators
|
Type of electric actuator |
Multi-turn |
|
Type of motor |
Asynchronous |
|
Cable gland |
Waterproof G1/2 |
|
Housing protection class |
IP67 |
|
Winding insulation class |
F |
|
Ambient temperature, °C |
From -30 to +70 |
|
Ambient humidity |
≤95% (at 25°C) |
|
Explosion-proof protection |
No |
- Body material
- Cast iron GGG50/EN-GJS-500-7
- Maximum allowable temperature
- 80 °C
- Connection type
- Flanged
- Operating environment
- Water and Industrial Water
- Applications
- Water Supply, Heating, and Industry
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Disc material
- Cast iron + EPDM
- Country of origin
- China
