How it works
Multi-turn handwheel

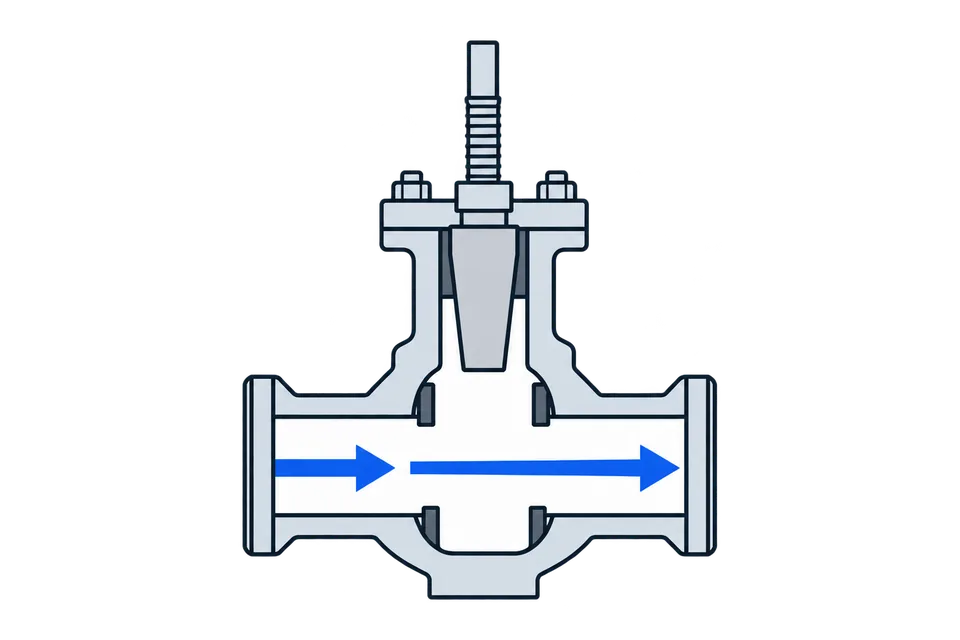

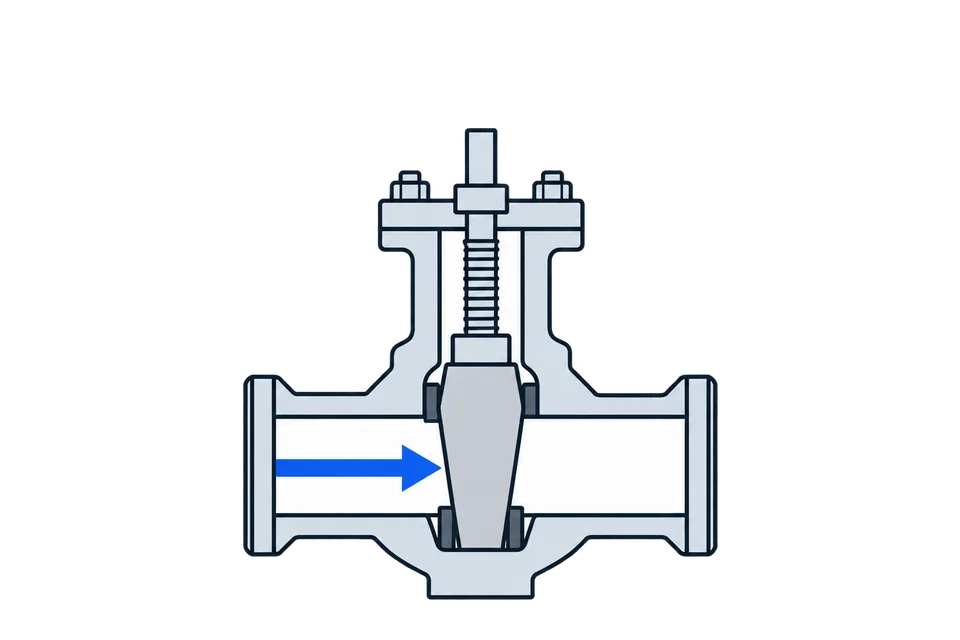

Rising-stem wedge gate
The number that matters
Nominal pressure
63bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
A wedge gate valve is a type of valve that is widely used in many industries - its main purpose is to start or stop a fluid flow rather than to regulate it. The design of the wedge gate valve is quite straightforward: it typically consists of a wedge, a bonnet which houses the moving parts, valve stem which is used to operate the valve, and two seats where the wedge seals off the flow.
Dimensions of the gate valve DNOVA, body material - stainless steel AISI 304, wedge material - stainless steel AISI CF8, seal - stainless steel AISI 304, handwheel operated
| DN | L | D | D1 | D2 | D3 | f1 | b | f | z-d |
| 50 | 250 | 175 | 135 | 102 | 88 | 4 | 26 | 3 | 4-22 |
| 80 | 310 | 210 | 170 | 133 | 121 | 4 | 28 | 3 | 8-22 |
| 100 | 350 | 250 | 200 | 156 | 150 | 4.5 | 30 | 3 | 8-26 |
| 125 | 400 | 295 | 240 | 184 | 175 | 4.5 | 34 | 3 | 8-30 |
| 150 | 450 | 340 | 280 | 212 | 204 | 4.5 | 36 | 3 | 8-33 |
| 200 | 550 | 405 | 345 | 285 | 260 | 4.5 | 44 | 3 | 12-33 |
| 250 | 650 | 470 | 400 | 345 | 313 | 4.5 | 46 | 3 | 12-39 |
| 300 | 750 | 530 | 460 | 410 | 364 | 4.5 | 62 | 4 | 16-39 |
Gate valve materials DNOVA, body material - stainless steel AISI 304, wedge material - stainless steel AISI CF8, seal - stainless steel AISI 304, handwheel operated
| № | Name | Material |
| 1 | Case | stainless steel 08X18H10 |
| 2 | Seat seal | steel 304 |
| 3 | Wedge | steel CF8 |
| 4 | Spindle | steel 304 |
| 5 | Gasket | steel 304+TRG |
| 6 | Bolt | steel 201 |
| 7 | Nut | steel 201 |
| 8 | bushing | steel CF8 |
| 9 | Spindle seal | TRG |
| 10 | gland | steel 201 |
| 11 | Bolt | steel 304 |
| 12 | staple | steel CF8 |
| 13 | Washer | ZCuAl10Fe3 |
| 14 | Flywheel | KTH330 |
Valve sketch DNOVA, body material - stainless steel AISI 304, wedge material - stainless steel AISI CF8, seal - stainless steel AISI 304, handwheel operated
- Body material
- Stainless steel AISI 304
- Stopper Material
- Stainless steel AISI CF8
- Maximum allowable temperature
- 425 °C
- Connection type
- Flanged
- Control type
- Handwheel
- Gate valve type
- Wedge Gate Valve
- Nominal pressure
- 63 bar
- Type of seal
- Stainless steel AISI 304/1.4301
- Coating type
- None
- Country of origin
- China
