Description
Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
Technical parameters of DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, welded, with handle:
| Characteristic | Meaning |
| Gate type | rotary disk |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | -50 to +180°C |
| Application | Food industry |
| Connection type | threaded |
| Control type | Manual (handle, gearbox) |
| Sealing class | A |
| Manufacturer's country | China |
| Warranty | 12 months. |

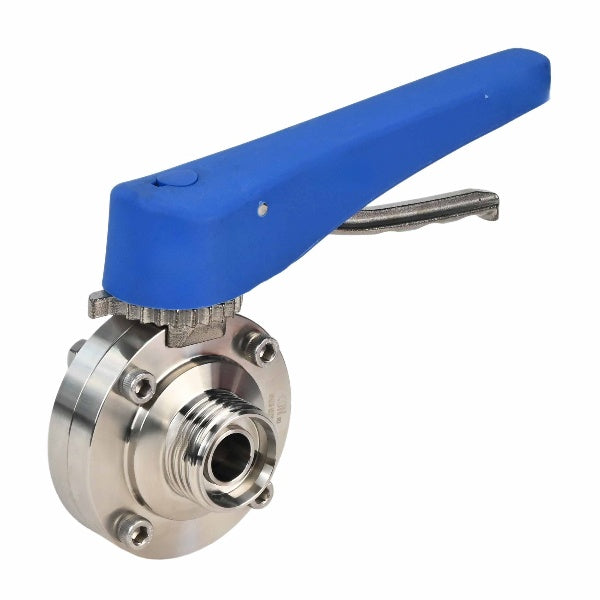

Butterfly valves WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, welded, with handle
Dimensions and dimensions of DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, welded, with handle:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Sketch Butterfly valves WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, welded, with handle
Materials of parts DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, welded, with handle:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of parts and materials Butterfly valves WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, welded, with handle
