Description
The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic actuator is designed for automation of industrial valve control process with maximum torque up to 2128 Nm. Pneumatic actuator can be installed on various quarter-turn valves according to the instructions. The flanges must comply with iso 5211.
The electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of an electric controller or a control system with an analog DC output signal with a range of 4 to 20 mA. The function of the positioner is based on the balancing of forces. The positioner uses a nozzle-flap type device and a feedback servomechanism (spring and lever system) to balance the control and feedback forces when the pneumatic actuator (valve) reaches the position corresponding to the control signal.
Technical parameters of DNOVA WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN with feedback:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Working medium temperature t, ⁰C | -20 to +120 |
| Working medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | double-sided |
| Connection to pipeline | interflanged |
| Body material | cast iron GGG50 |

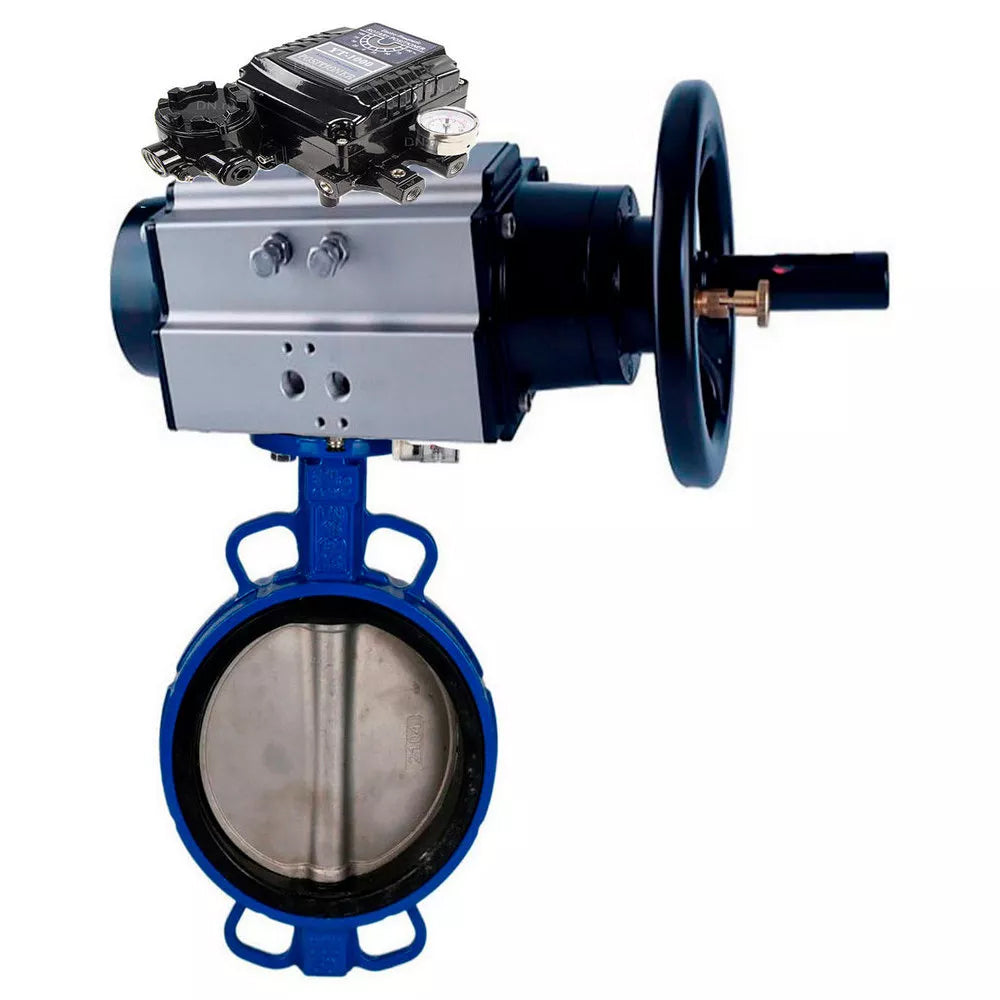

Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN with feedback
Dimensions and dimensions of butterfly valves DNOVA WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN with feedback:
| DN | A, mm | B, mm | A1, mm | W, mm | S, mm | C, mm |
| 150 | 225 | 139 | 495 | 200 | 62.5 | 117.5 |
Sketch Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN with feedback
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of electropneumatic rotary positioners:
| Name | Value |
| Control input signal, mA | 4 ~ 20 |
| Internal resistance, Ohm | 250(±15) |
| Input pressure, bar | 1,4~7 |
| Lever travel angle | 0~90° |
| Compressed air connection thread | 1/4″ |
| Pressure gauge connection thread | 1/8″ |
| Cable gland | G1/2″ |
| Protection type | IP66 |
| Compressed air flow rate, l/min | 3 |
| Output air flow rate, l/min | 80 |
| Housing material | aluminum casting |
Electropneumatic rotary positioners
Dimensions and dimensions of electropneumatic rotary positioners:
| Positioner model | YT-1000RSI |
| A, mm | 224.3 |
| B, mm | 166.5 |
| C, mm | 117.5 |
| D, mm | 132.3 |
| E, mm | 6 |
| F, mm | 122 |
| G, mm | 45 |
| H, mm | 45 |
| I, mm | 23 |
| J, mm | 27 |
| K, mm | 32.5 |
| L, mm | 35.5 |
| M, mm | 91.8 |
| N, mm | 37.2 |
| O, mm | 43.5 |
| P, mm | 26.5 |
| Q, mm | 33 |
| R, mm | 80.25 |
| S, mm | 62.5 |
| T, mm | 8 |
| U1, mm | 70 |
| U2, mm | 93 |
| V1, mm | 40 |
| V2, mm | 63 |
| W, mm | 26 |
| X, mm | 32 |
| Y, mm | 9 |
| Z, mm | 24 |
Sketch of dimensions and dimensions of electropneumatic rotary positioners
