How it works

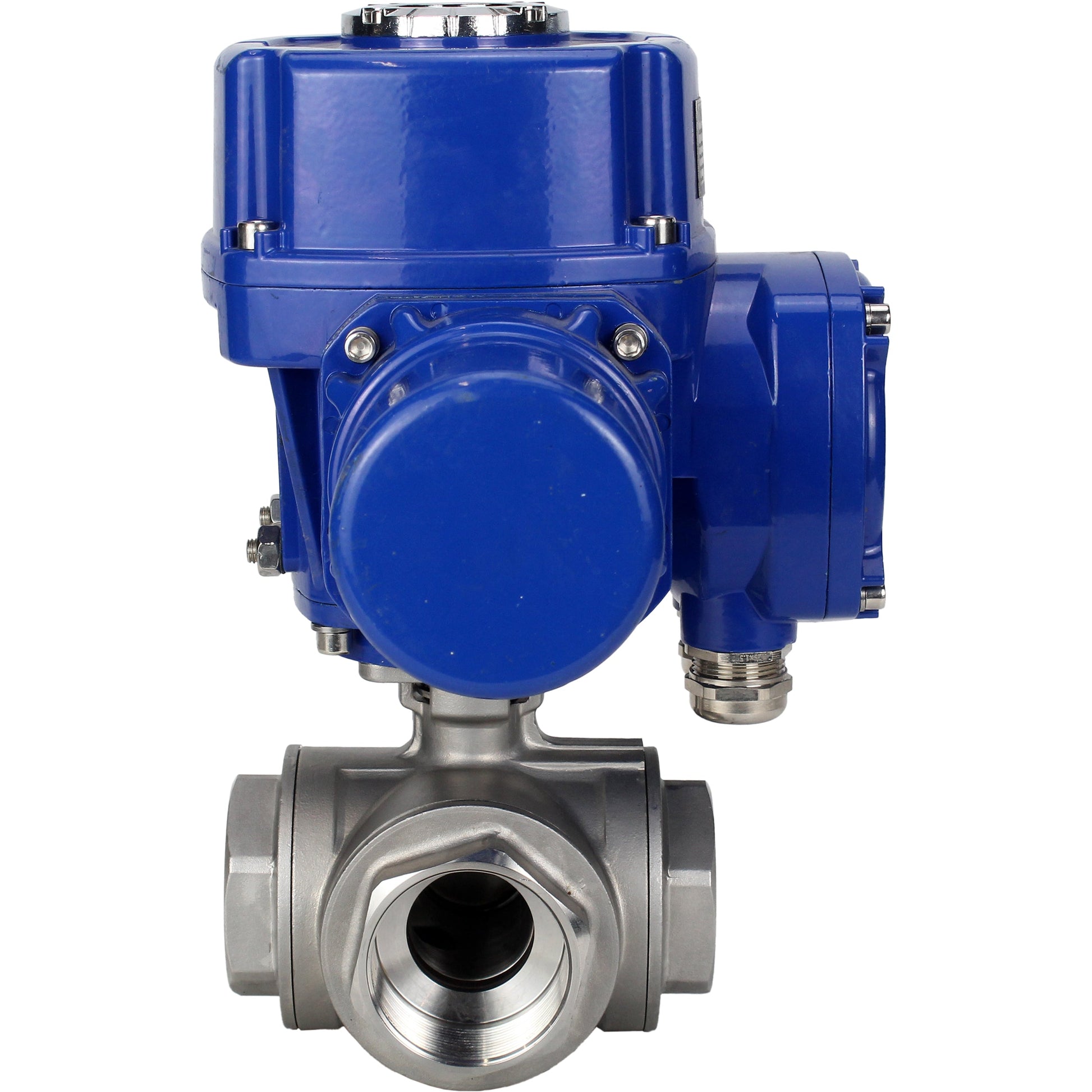

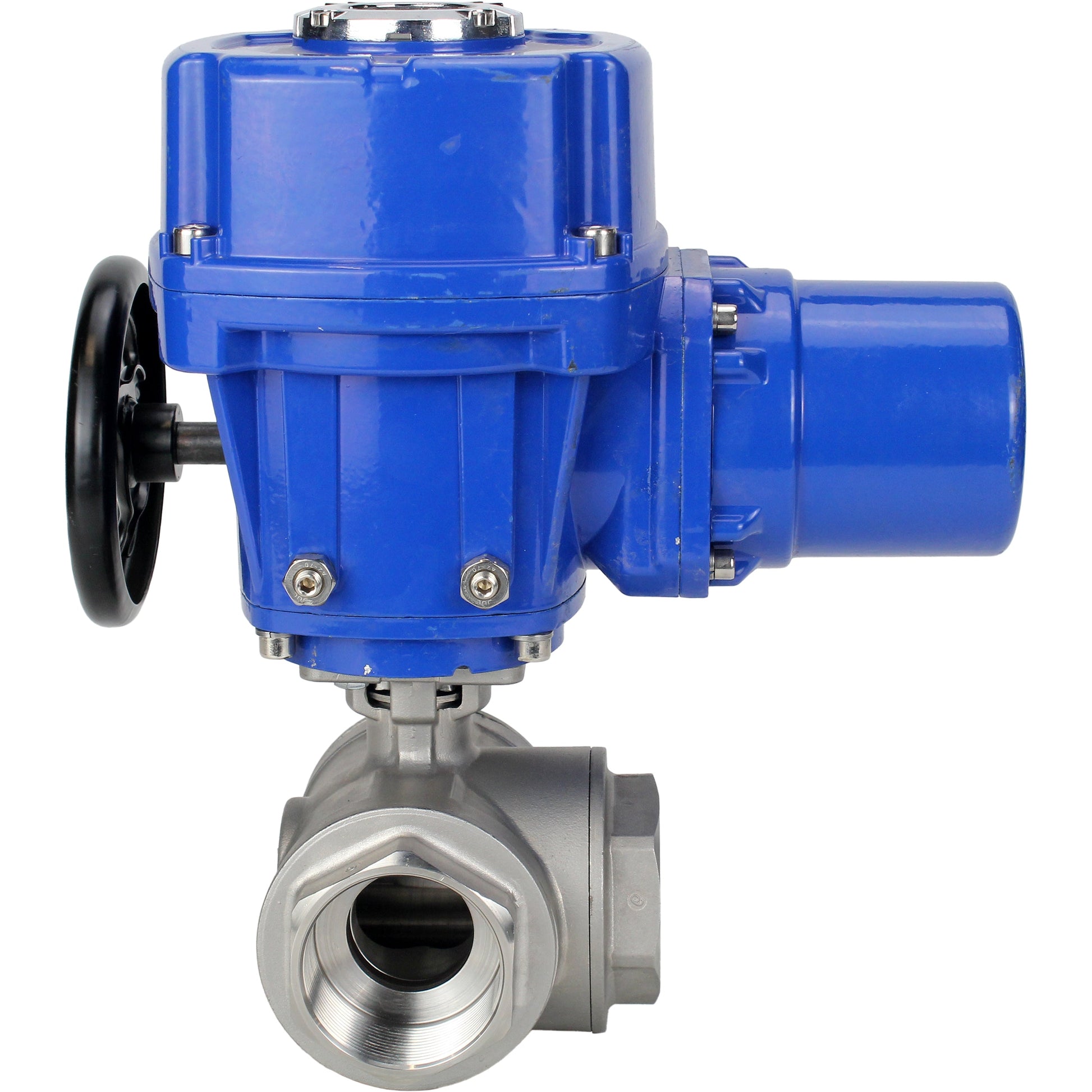

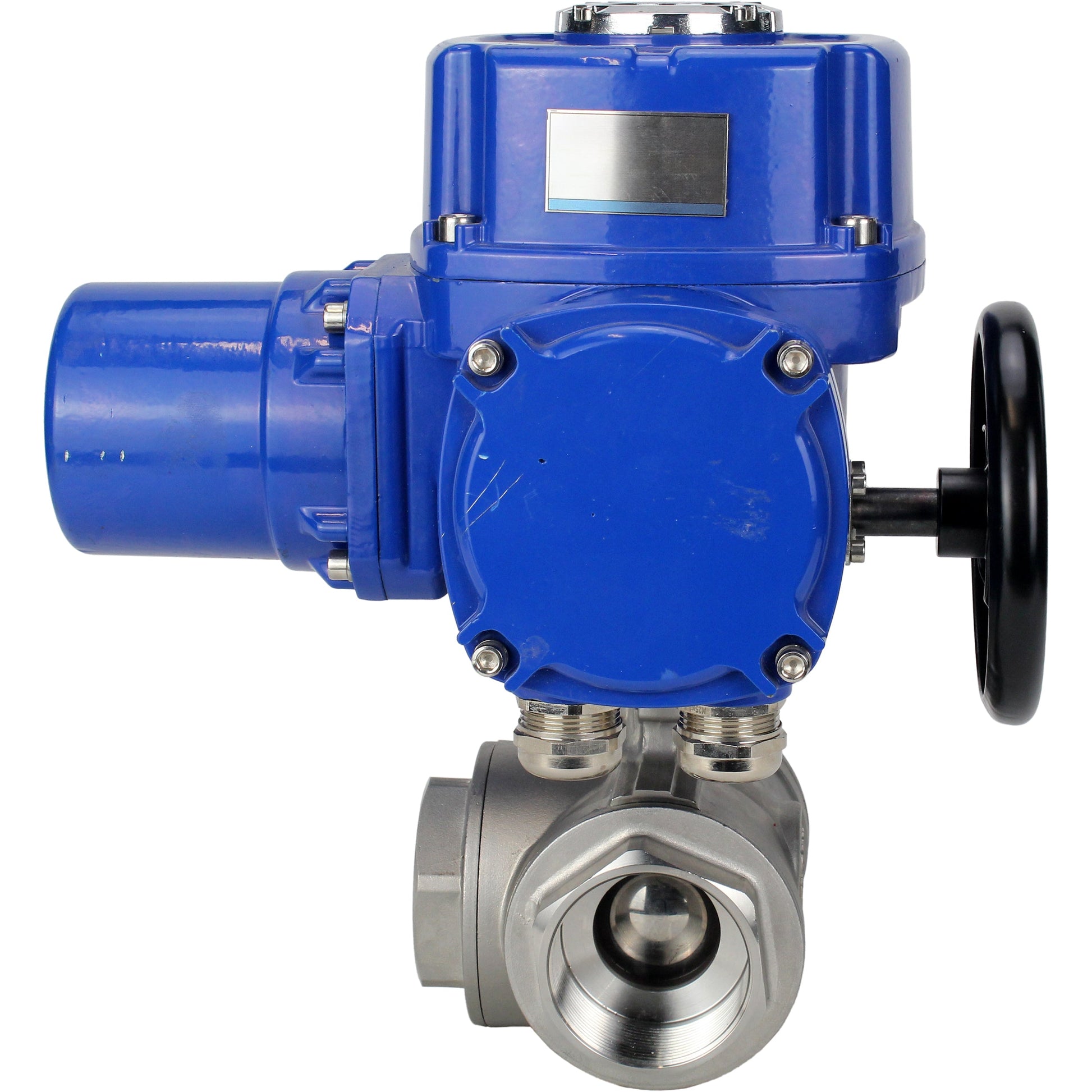

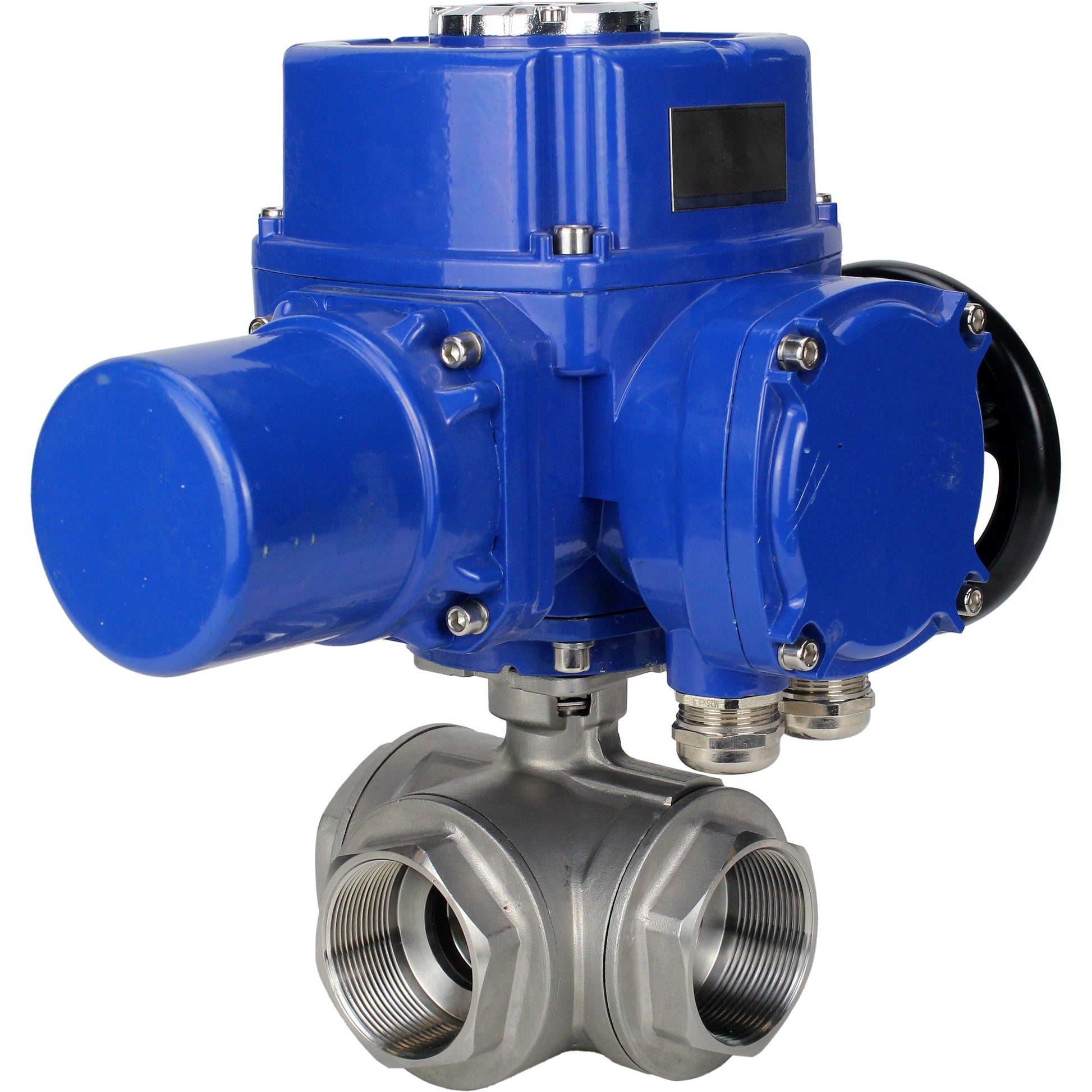

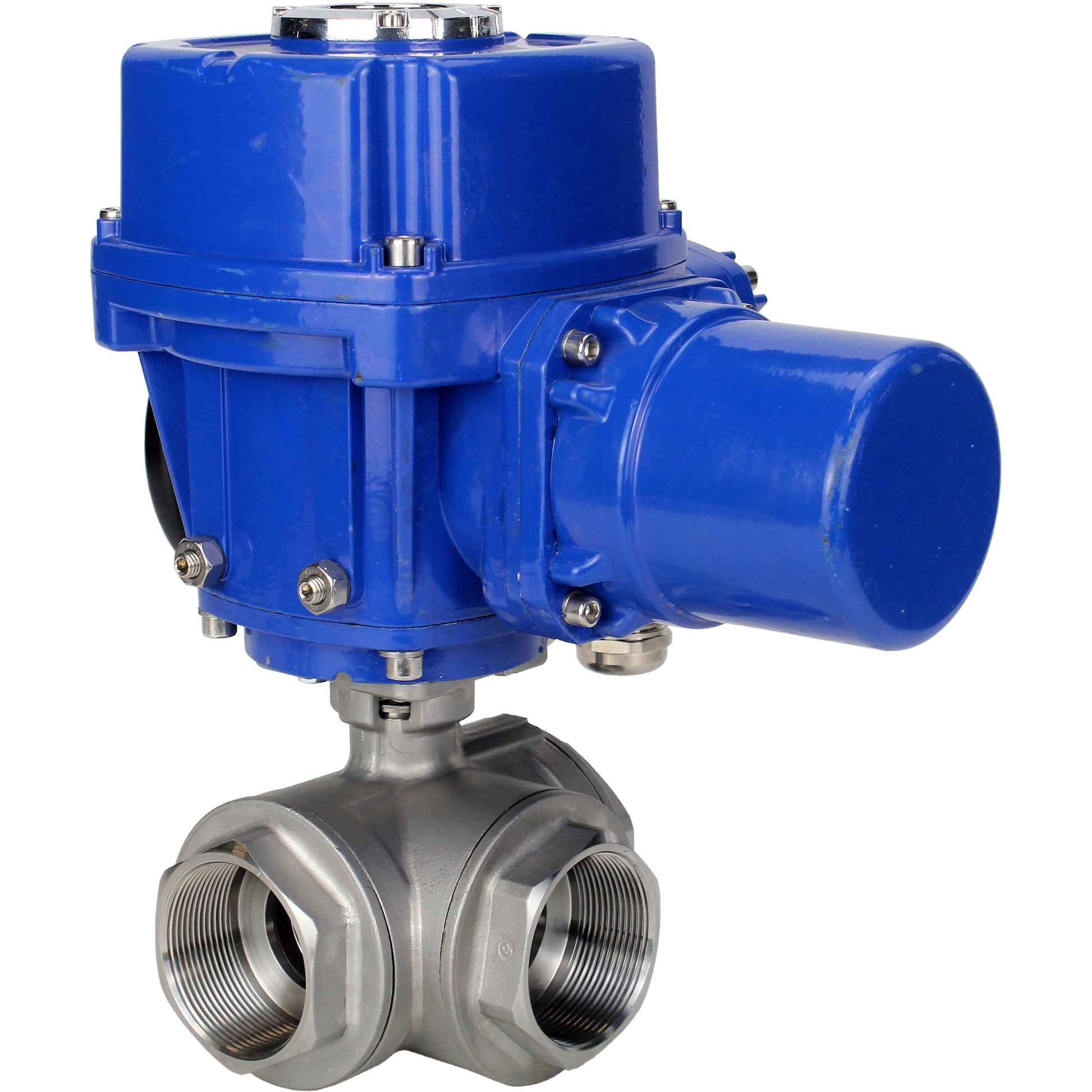

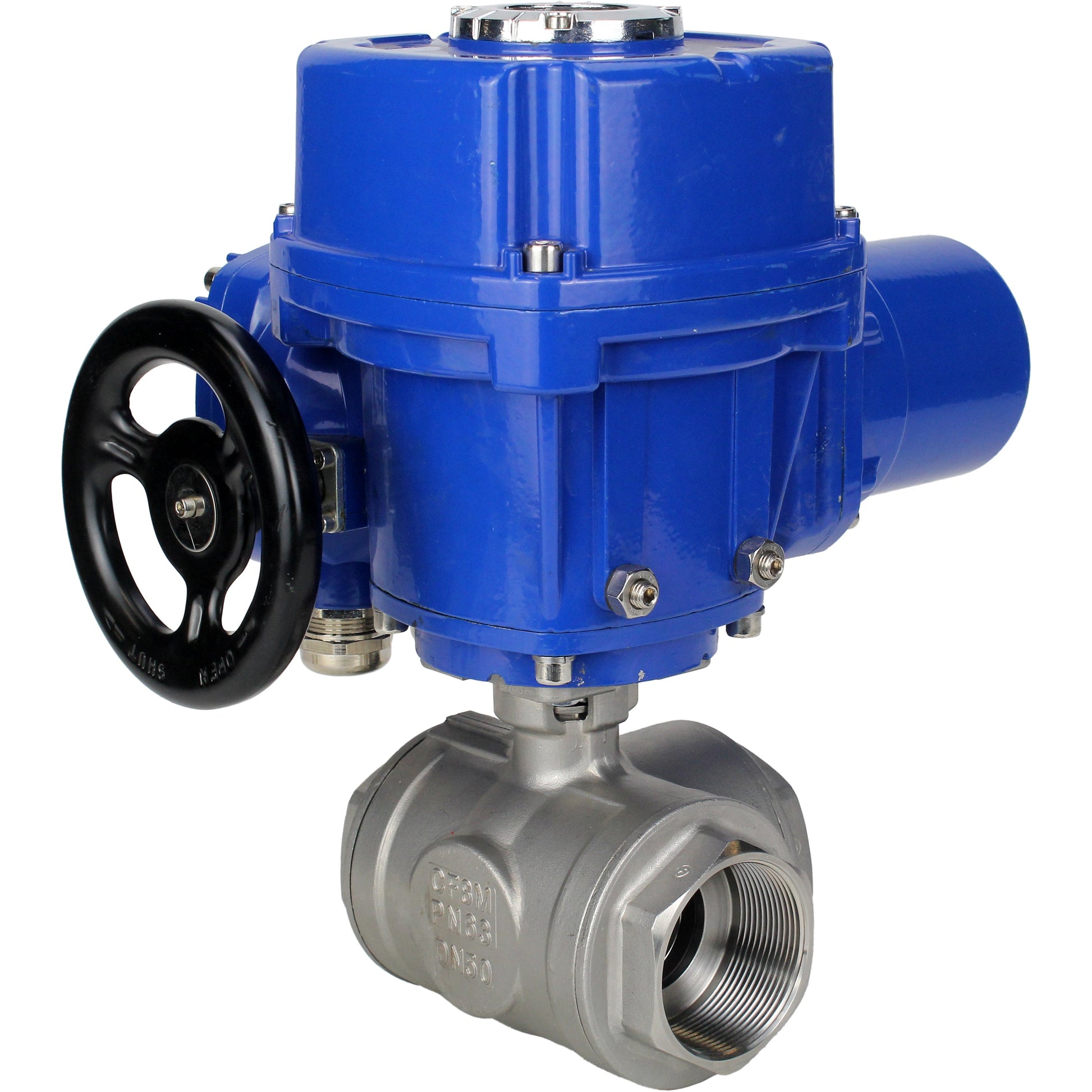

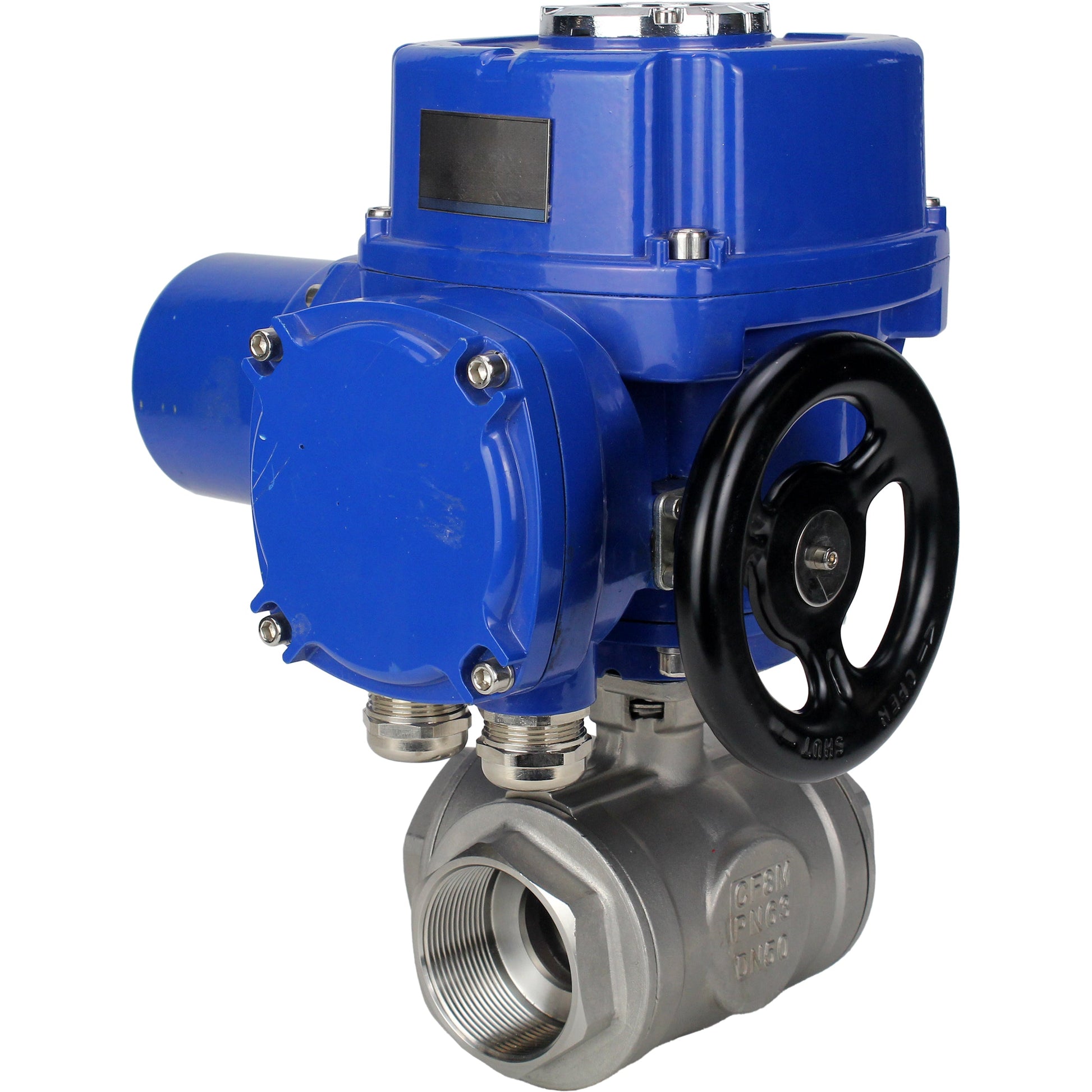

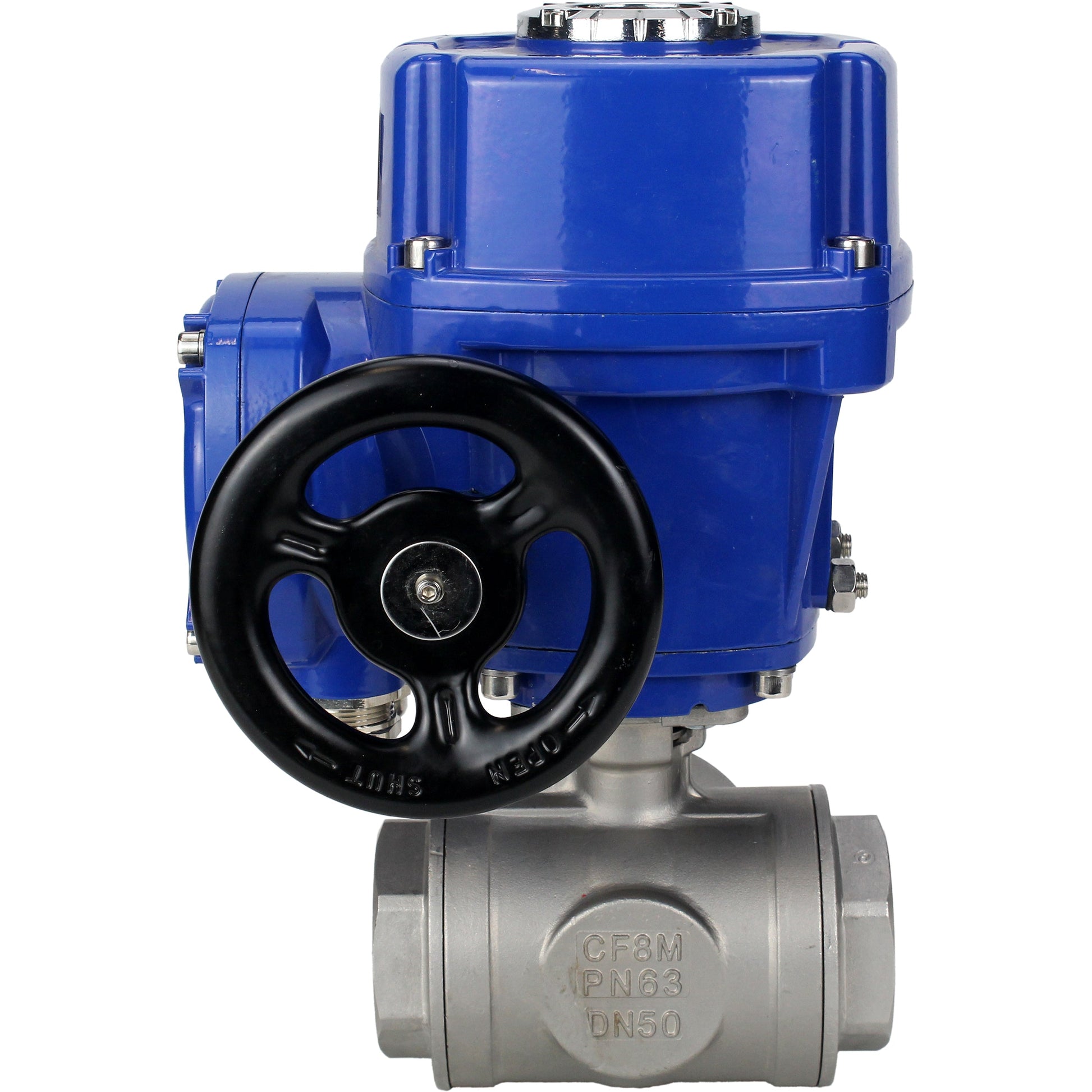

Electric quarter-turn actuator
Three-way L-port ball
The number that matters
Max. medium temperature
200°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.
Technical data of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H QT-N-M-O2-380VAC-U1
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63/40 |
| Temperature of working environment t, °C | from -20 to +200 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | threaded |
| Type of flow section | standard pass |
Sketch of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H QT-N-M-O2-380VAC-U1
Overall and installation dimensions of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H QT-N-M-O2-380VAC-U1
| D.N. | Drive model | L±1.5, mm | D, mm | H, mm | L1, mm |
| DN10 | QT-W(M)-005 | 71 | 10 | 281 | 215 |
| DN15 | QT-W(M)-005 | 71 | 12 | 281 | 215 |
| DN20 | QT-W(M)-005 | 82 | 15 | 281 | 215 |
| DN25 | QT-W(M)-005 | 98 | 18 | 281 | 215 |
| DN32 | QT-W(M)-005 | 118 | 25 | 281 | 215 |
| DN40 | QT-W(M)-005 | 122 | 32 | 281 | 215 |
| DN50 | QT-W(M)-005 | 150 | 38 | 281 | 215 |
| DN65 | QT-W(M)-005 | 178 | 50 | 281 | 215 |
| DN80 | QT-W(M)-010 | 202 | 64 | 281 | 215 |
| DN100 | QT-W(M)-010 | 231 | 78 | 281 | 215 |
Detail sketch of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H QT-N-M-O2-380VAC-U1
Materials of parts of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H QT-N-M-O2-380VAC-U1
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Characteristics of QT-N-M-0-380VAC actuators
| Electric drive model |
Torque, Nm |
Cycle time, sec |
Power, W |
| QT-W (M)-005 220V | 50 | 30 | 25 |
| QT-W (M)-010 220V | 100 | 30 | 30 |
| QT-W (M)-015 220V | 150 | 30 | 40 |
| QT-W (M)-020 220V | 200 | 30 | 50 |
| QT-W (M)-030 220V | 300 | 30 | 60 |
| QT-W (M)-040 220V | 400 | 30 | 90 |
| QT-W (M)-060 220V | 600 | 30 | 120 |
| QT-W (M)-120 220V | 1200 | 30 | 180 |
| QT-W (M)-180 220V | 1800 | 30 | 250 |
| QT-W (M)-300 220V | 3000 | 60 | 370 |
| QT-W (M)-500 220V | 5000 | 60 | 550 |
| Electric drive model |
Current, A |
Weight, kg |
Rod size square, mm |
| QT-W (M)-005 220V | 0.35 | 7.6 | 17x17 |
| QT-W (M)-010 220V | 0.48 | 7.8 | 17x17 |
| QT-W (M)-015 220V | 0.55 | 8 | 17x17 |
| QT-W (M)-020 220V | 0.65 | 12.7 | 22x22 |
| QT-W (M)-030 220V | 0.75 | 12.8 | 22x22 |
| QT-W (M)-040 220V | 0.95 | 13 | 22x22 |
| QT-W (M)-060 220V | 1,1 | 21.2 | 27x27 |
| QT-W (M)-120 220V | 1.3 | 23.2 | 27x27 |
| QT-W (M)-180 220V | 1.5 | 23.5 | 27x27 |
| QT-W (M)-300 220V | 1.6 | 37.5 | 36x36 |
| QT-W (M)-500 220V | 1.7 | 38 | 36x36 |
Wiring diagram for actuator QT-N-M-0-380VAC
- Port opening
- Standard Port
- Configuration
- Three-way
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 304/316/1.4301/1.4401
- Material ball seal
- PTFE
- Maximum allowable temperature
- 200 °C
- Connection type
- Threaded NPT/BSP
- Control type
- Electric actuator
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply and Heat Supply
- Voltage
- 380 V
- Actuator cycle time
- 30s
- Explosion-proof
- No
- Torque
- 50 Nm
- Electropneumatic positioner
- Electric actuator
- Type of electric actuator
- Quarter-turn
- Control signal
- ON/OFF
- Rated current consumption
- 0.35 A
- Power consumption
- 25 W
- Country of origin
- China
