Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.

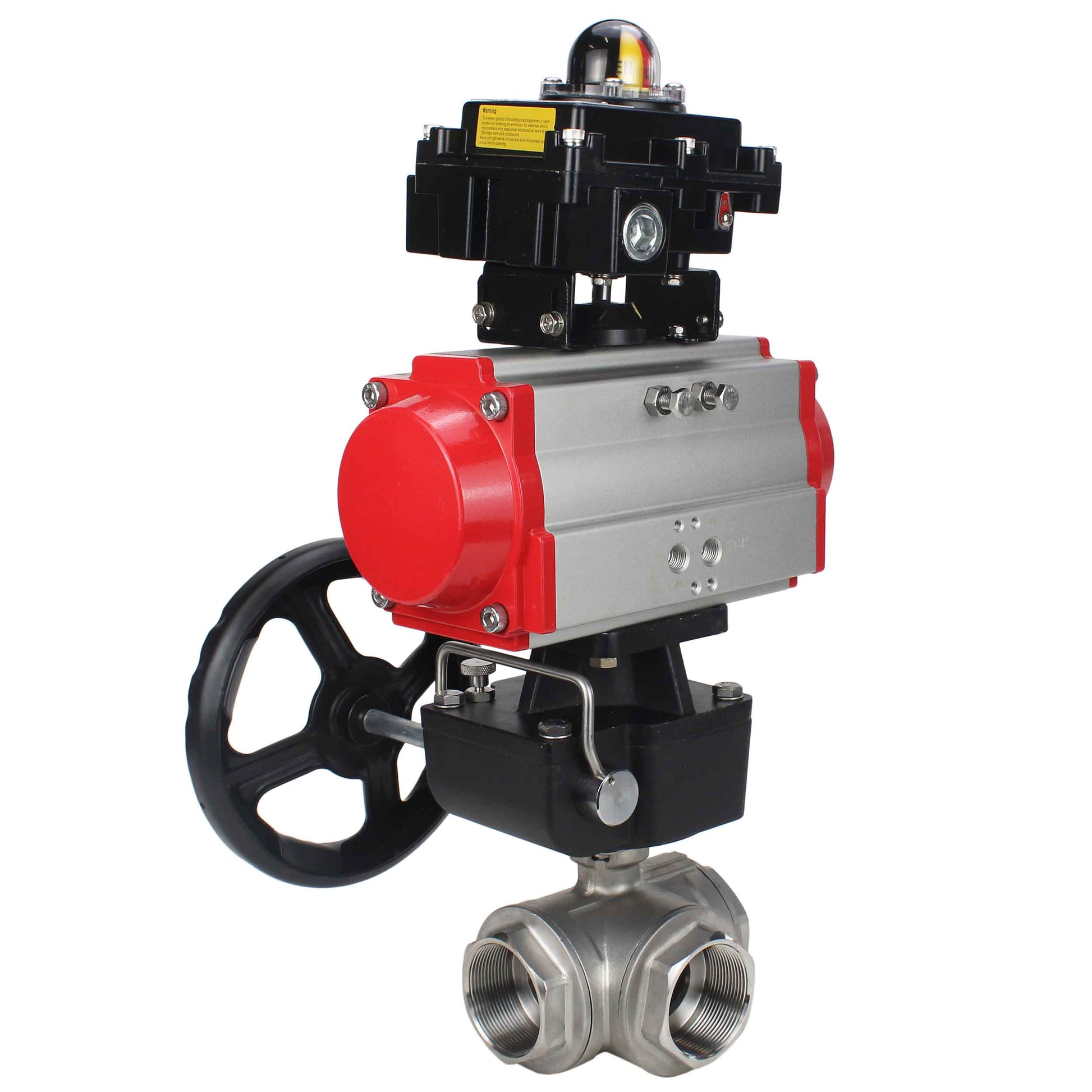

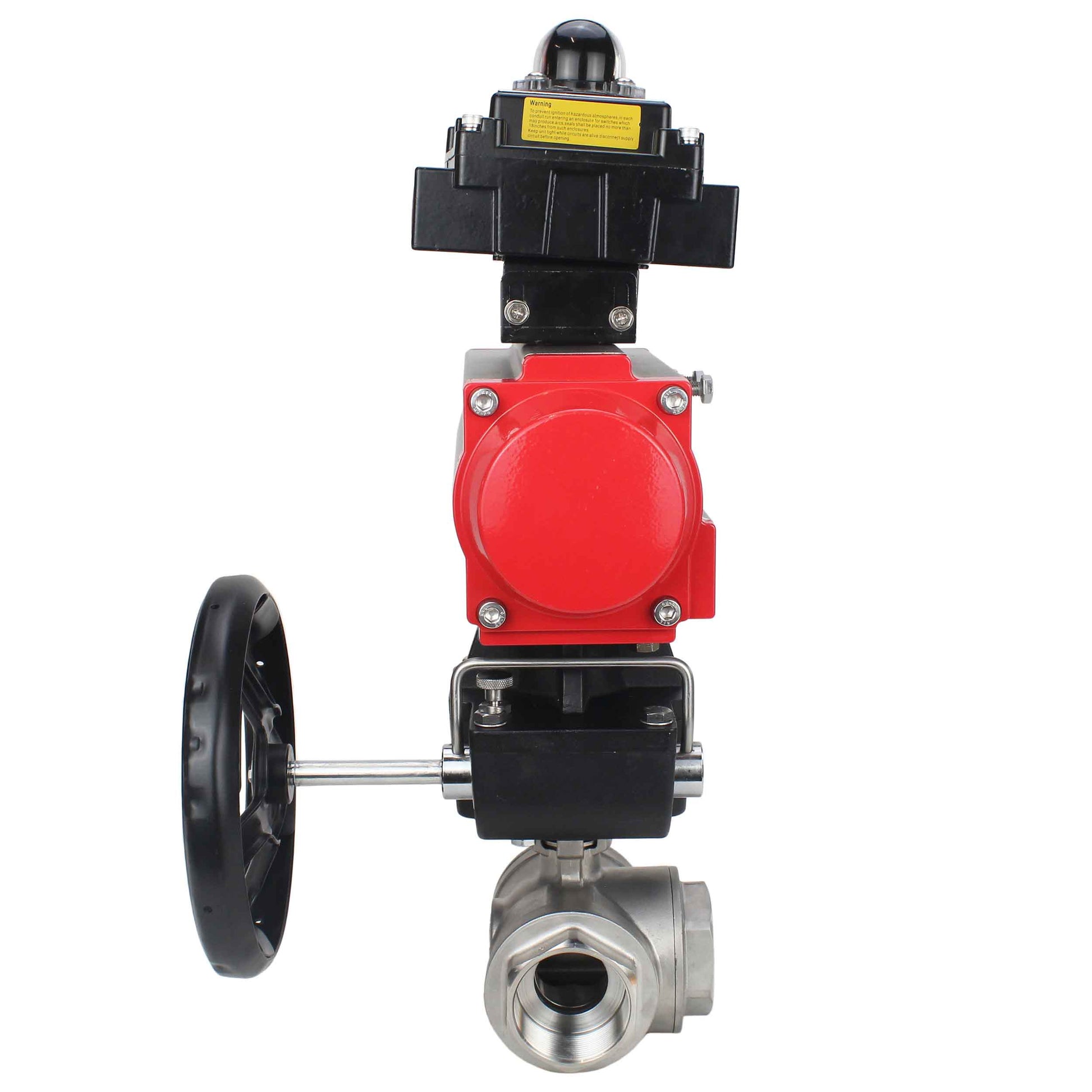

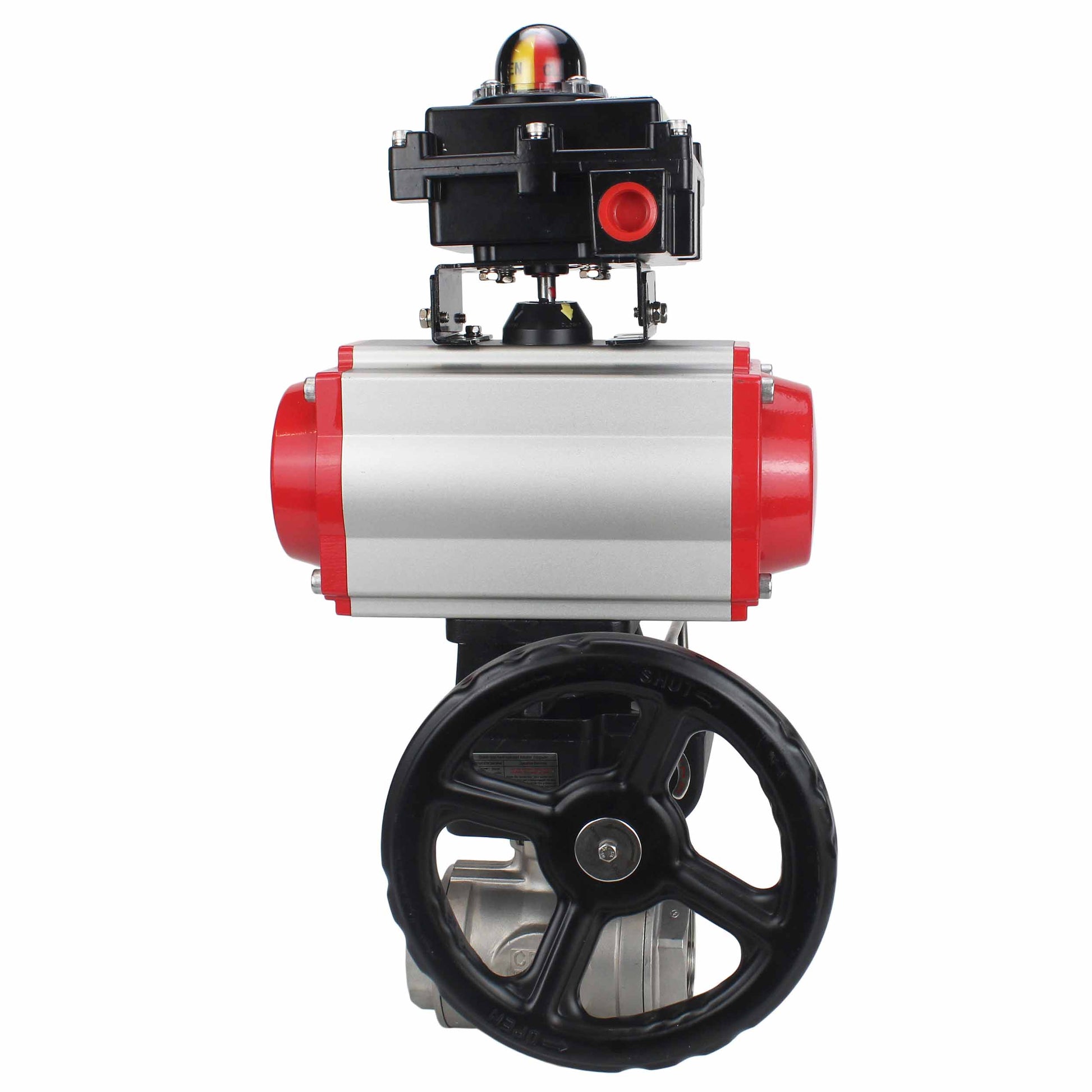

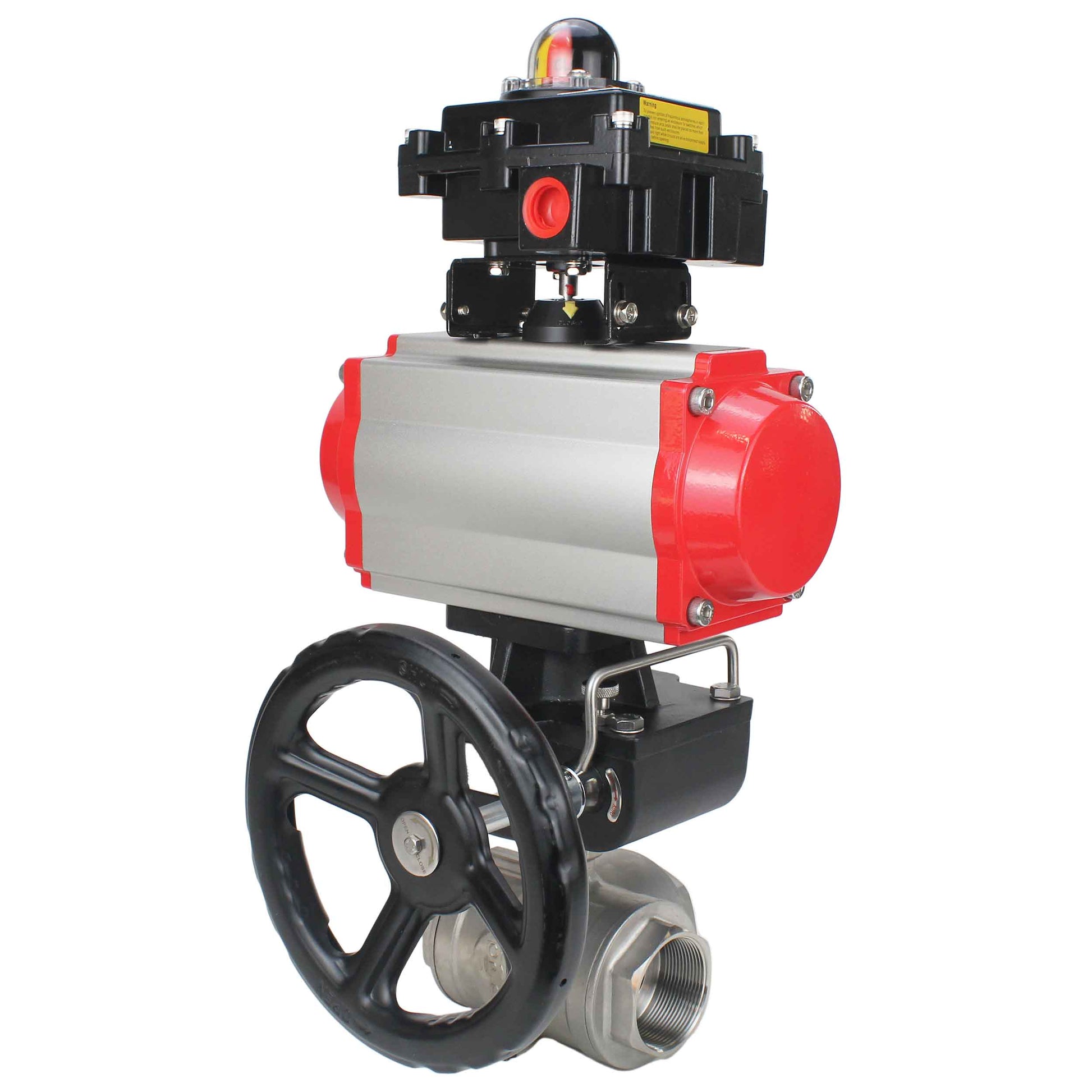

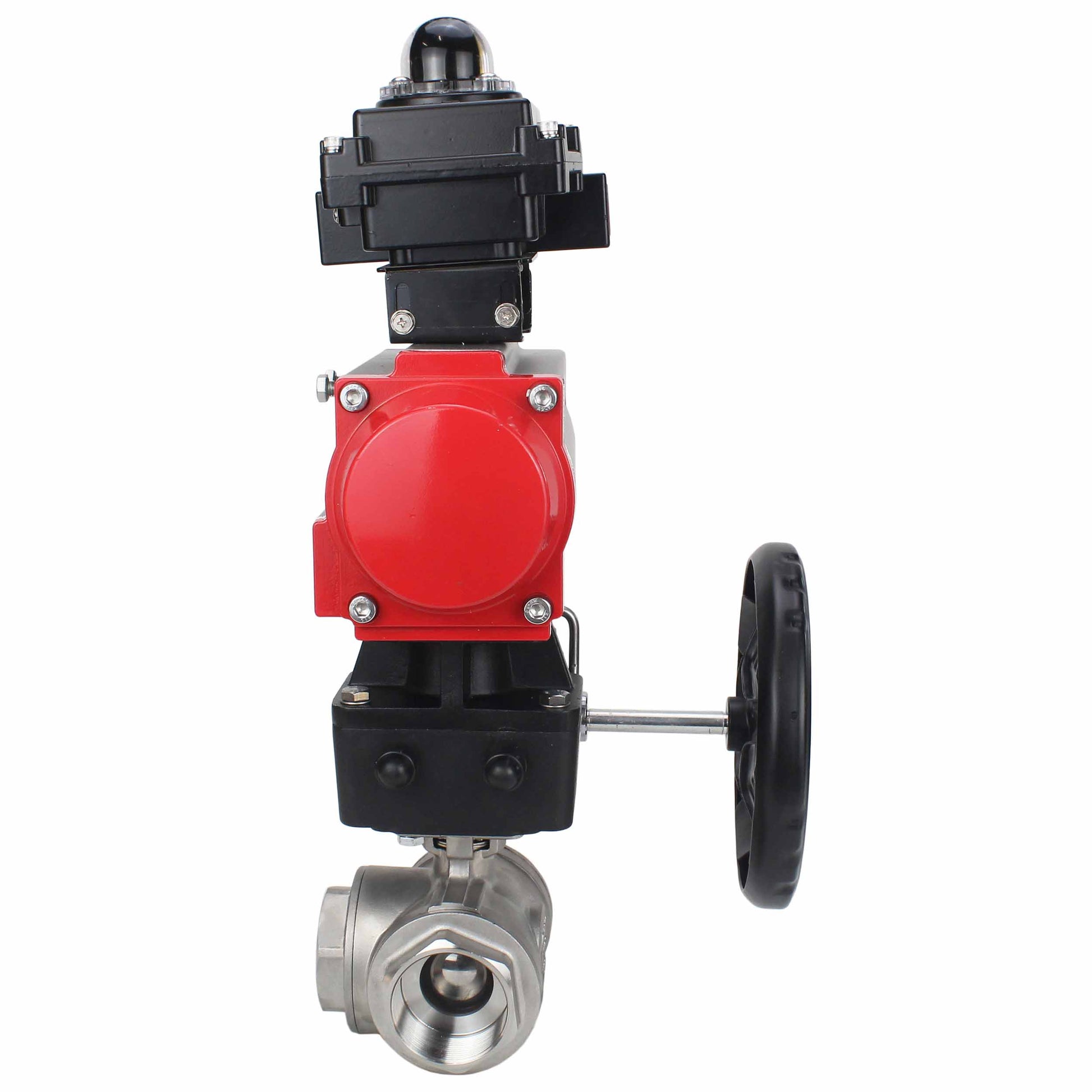

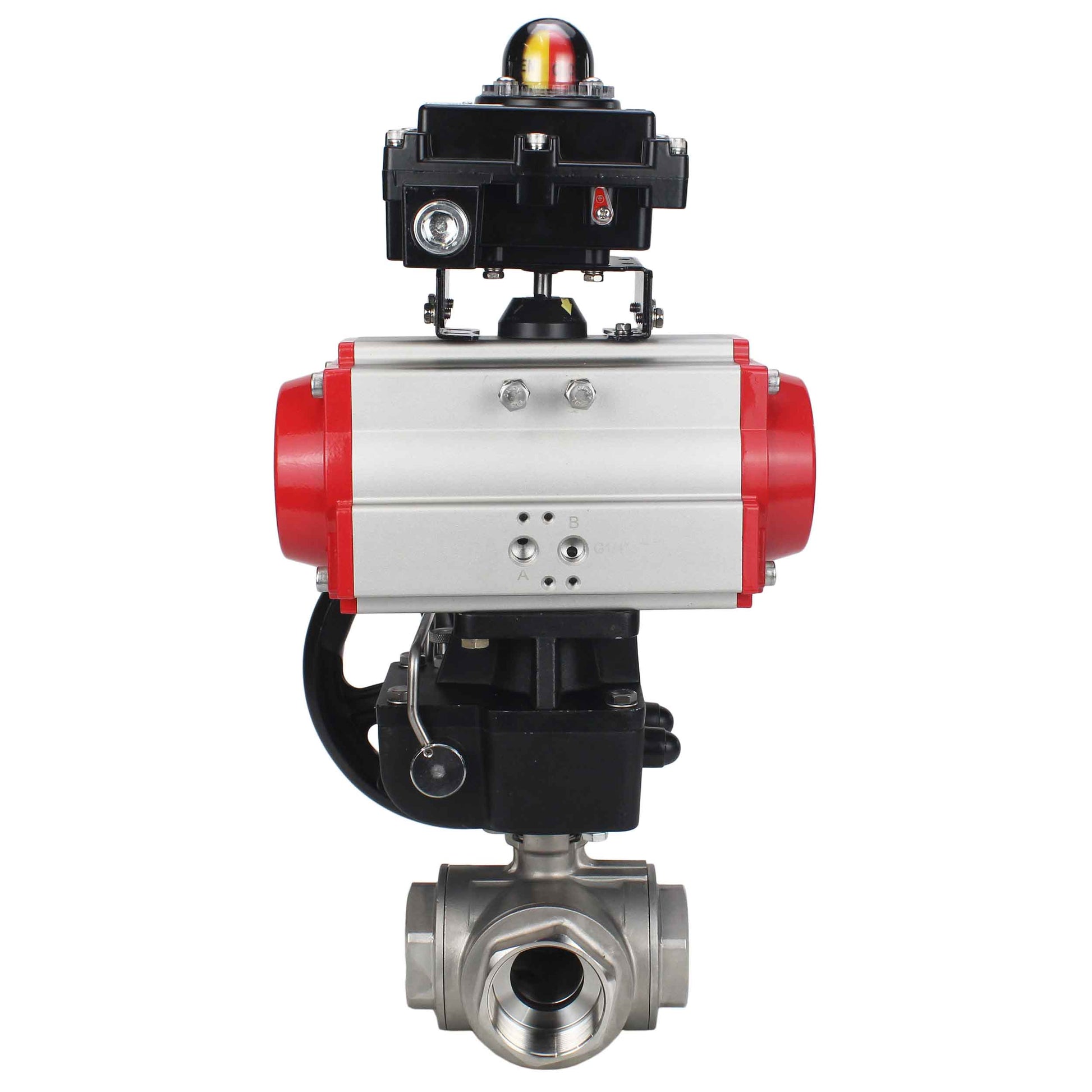

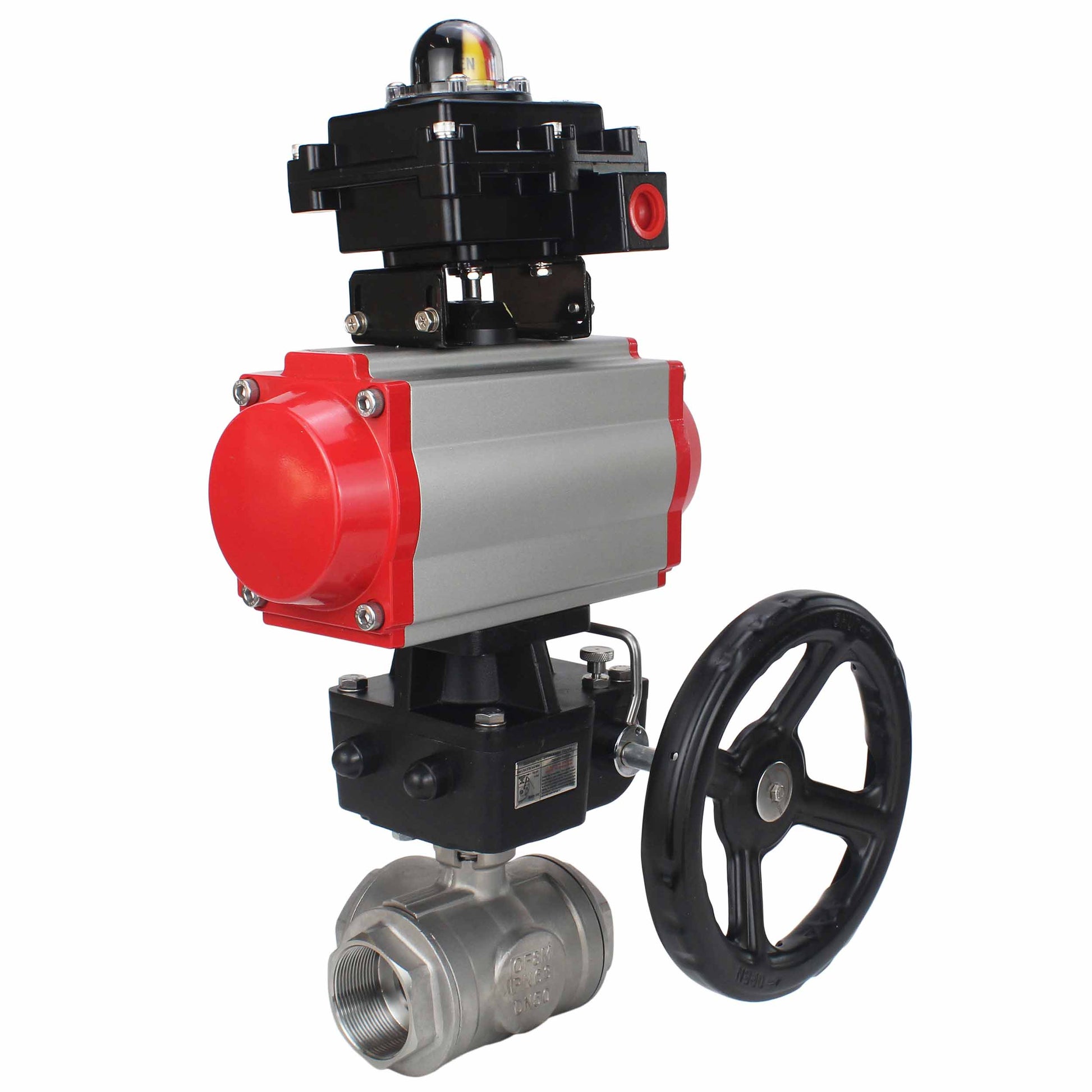

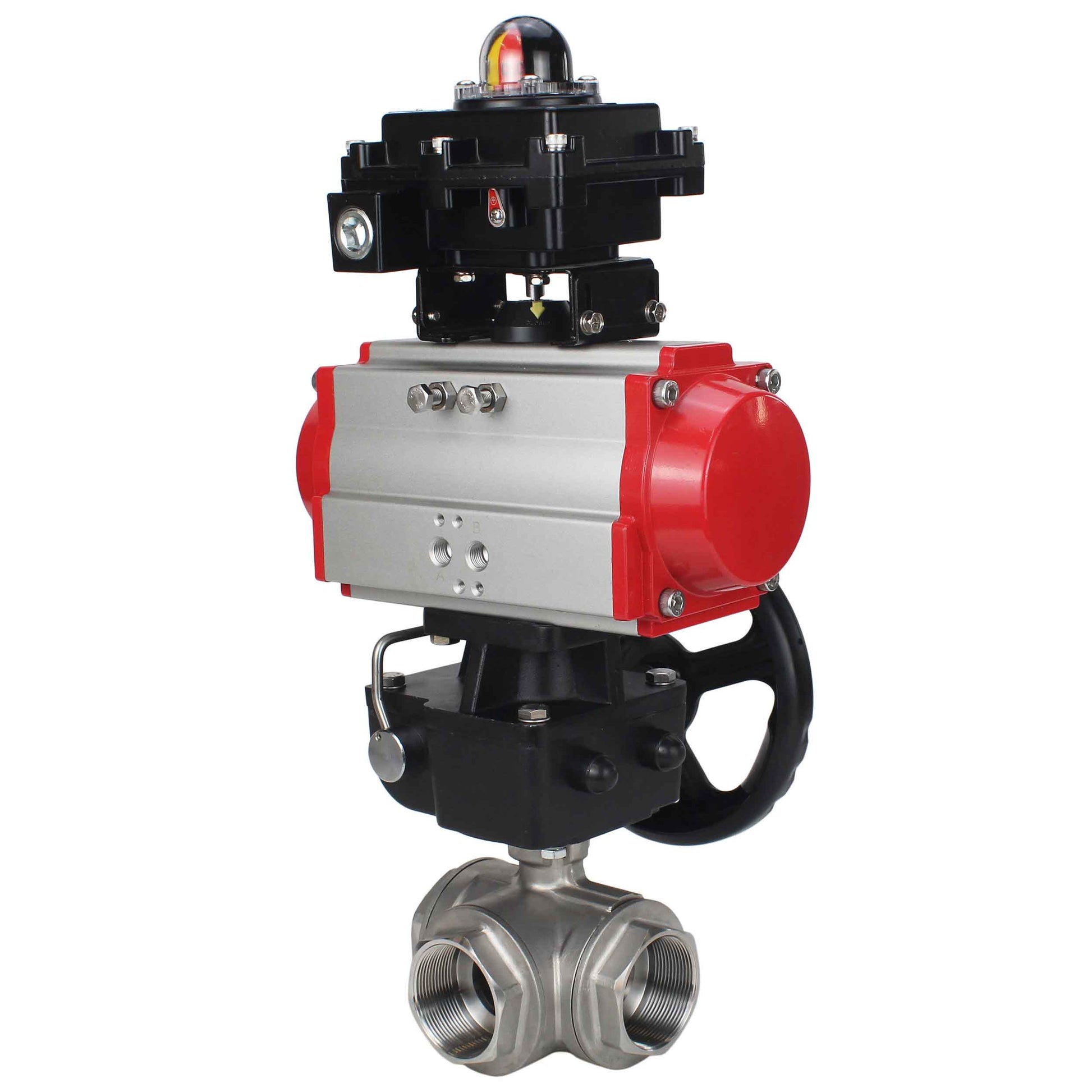

Parameters of the ball valve DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H DN10 with pneumatic actuator PA-DA-065, limit switch unit APL-410N EX and manual backup MON:
- Nominal diameter DN - 10 mm
- Nominal pressure PN - 63 bar
- Body material - Stainless steel AISI/SS 316/08X17H13M2
- ISO flange type of fittings - F03, F04
- The size of the reinforcement shaft (square) is 9x9 mm
- Torque on shaft - 2 Nm
- Ball material - stainless steel
- Seal type - PTFE
- Connection - Internal thread
- The type of the tap device is three-way
- The valve ball passage is standard passage
- Water tap - no
- Control type - double-acting pneumatic actuator
- Environment - water, air, steam, neutral media
- Country of manufacture of the drive - China
- Application area - heat supply
- Weight of shut-off valves - 0.53 kg
- Drive weight - 1.9 kg
- Total weight - 5.43 kg
Sketch of ball valve DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with PA-DA-065, limit switch block APL-410N EX and manual backup MON
Overall and installation dimensions of the ball valve DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H Du10 with pneumatic actuator PA-DA-065:
- DN - 10 mm
- D - 10 mm
- L±1.5 - 71 mm
- L1 - 174 mm
Sketch of materials of ball valve DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H Du10
Materials of the BV3232P(4pc)-SP-3WL-T-ISO-H ball valve parts:
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Parameters of the pneumatic actuator PA-DA-065:
- Pneumatic actuator type - double acting
- Nominal torque - 43 Nm
- Working pressure of the pneumatic drive - 8 bar
- Drive rotation angle - 90°
- Drive adjustment range - 5°
- Availability of manual backup - steering wheel
- Drive weight - 1.9 kg
- Country of origin - China
Sketch of materials of pneumatic drive PA-DA-065
Materials of pneumatic actuator PA-DA-065:
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Parameters of the limit switch block APL-410N EX:
- Limit switch block model - APL-410N EX
- Cable entry for limit switches - 2 x NPT1/2"
- Maximum current - 5 A
- Maximum voltage - 250 V
- Protection class of the case - 67
- Explosion protection - yes
Materials of the APL-410N EX limit switch block:
| Name | Materials |
| Case cover and body | aluminum die casting |
| Shaft | stainless steel |
| Indicator cover | polycarbonate |
| Cam | polycarbonate |
| Spring | stainless steel |
| Housing cover bolts | stainless steel |
| Sealing ring | NBR |
| Sleeve | bronze |
| Sealing ring (shaft) | stainless steel |
| Ground terminal | stainless steel |
| Indicator | ABS plastic / polycarbonate |
| bracket | stainless steel |
Passports and certificates
Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs
Data sheet for DNOVA HDM manual overrides for pneumatic actuators and quarter-turn valves
Data sheet for limit switch unit DNOVA APL-410N EX
- Port opening
- Standard Port
- Configuration
- Three-way
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 304/316/1.4301/1.4401
- Material ball seal
- PTFE
- Connection type
- Threaded NPT/BSP
- Control type
- Pneumatic actuator
- Operating environment
- Water, Air, and Oil Products
- Applications
- Heat Supply
- Valve feedback
- Limit switches
- Explosion-proof
- Yes
- Torque
- 43 Nm
- Pneumatic actuator
- Double acting
- Manual override
- Yes
- Limit switches
- Yes
- Country of origin
- China
