How it works
Electric quarter-turn actuator
Two-way ball valve
The number that matters
Max. medium temperature
180°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
- Pneumatic Systems
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

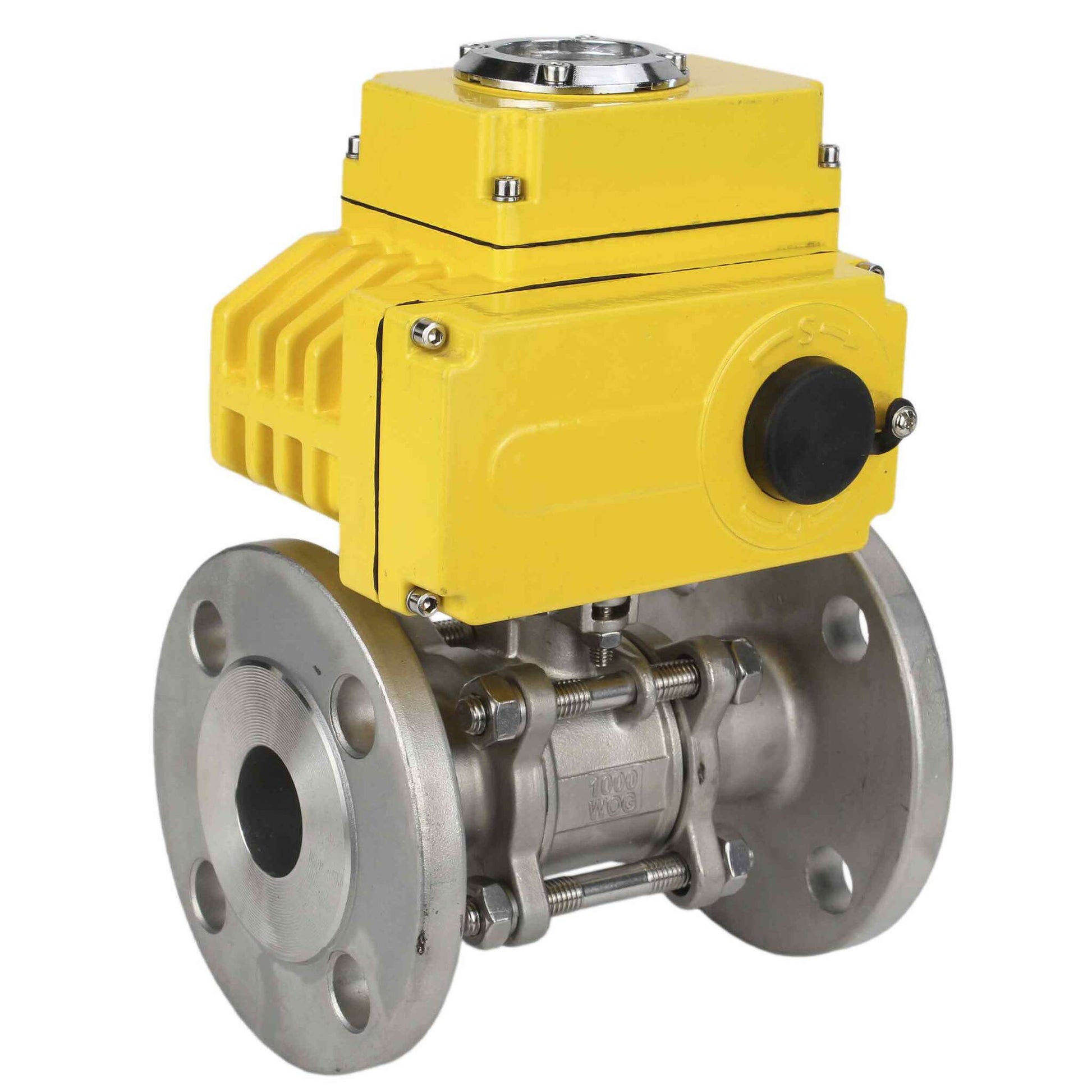

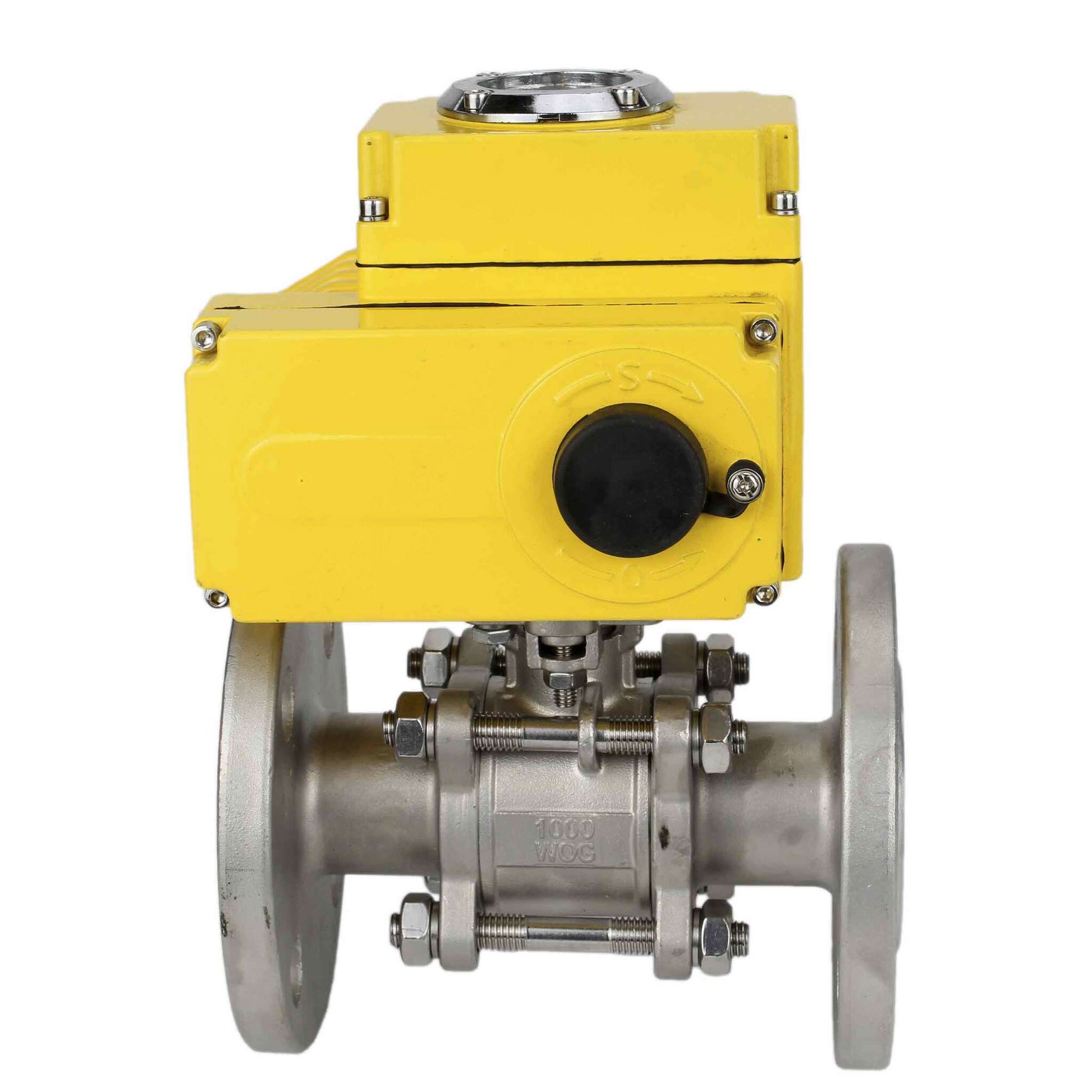

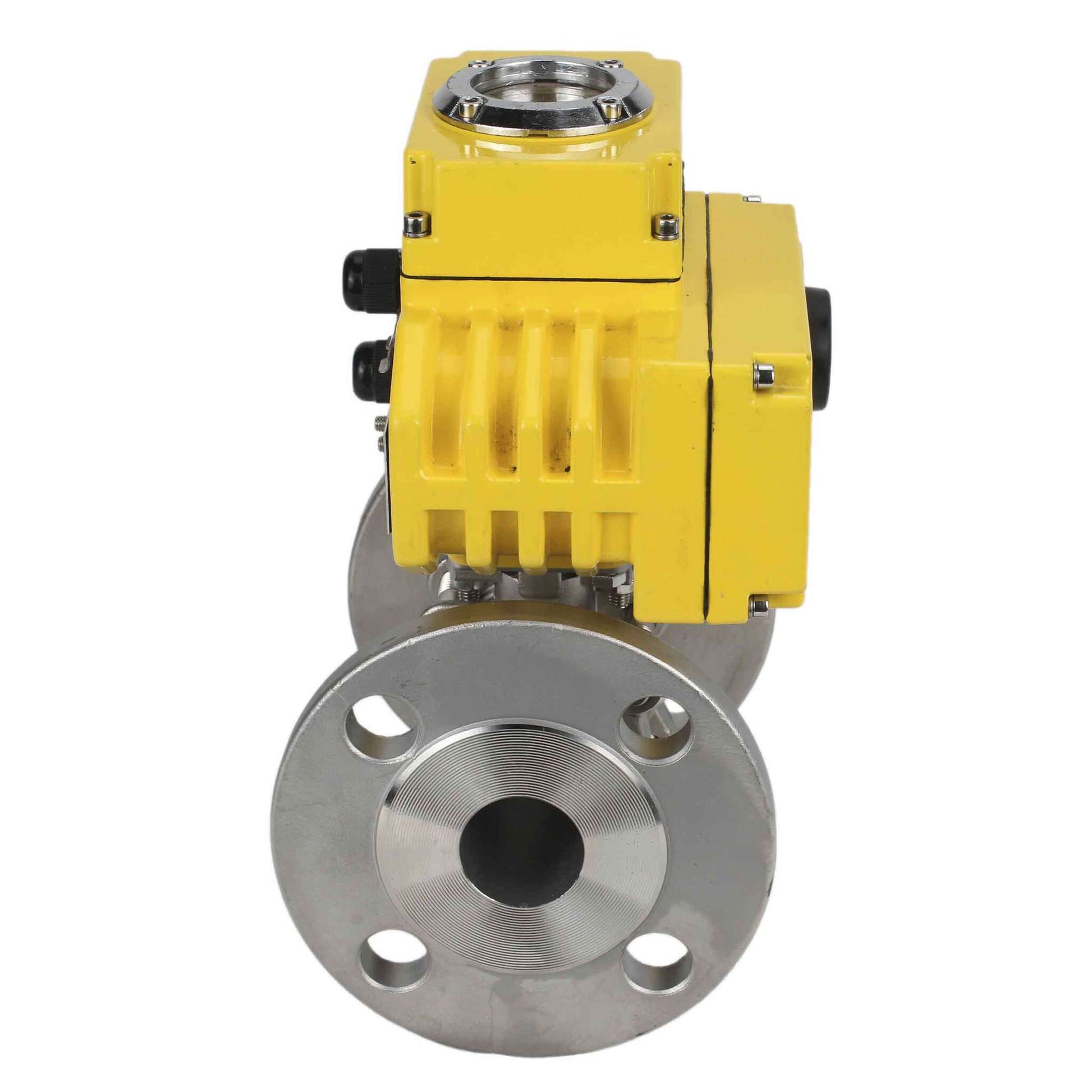

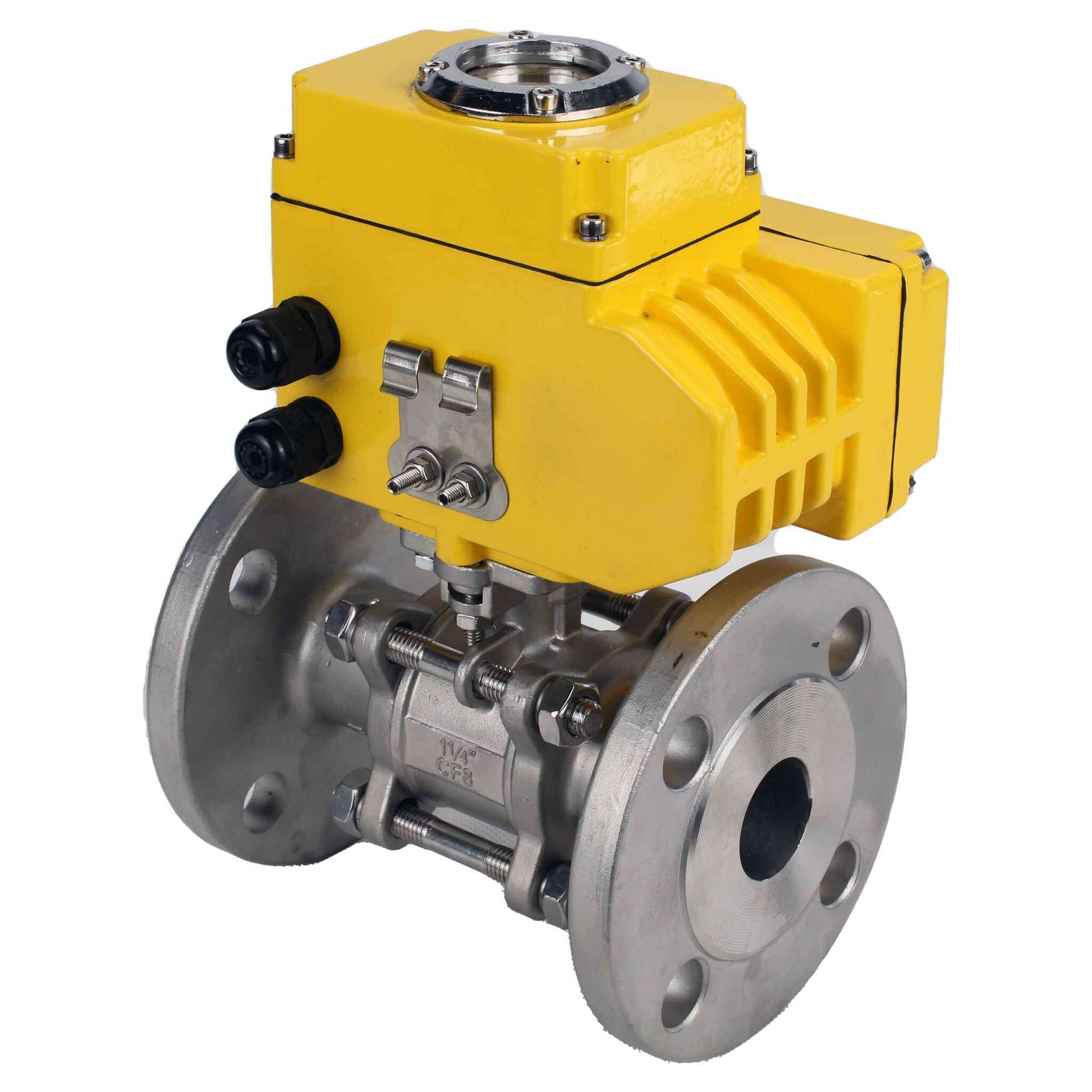

Characteristics of ball valve DNOVA BV3131P(3pc)-FP-F-F-ISO-H QT-N-EM-O1-220VAC-U1:
| Nominal diameter, mm | 15-100 |
| Working pressure PN, bar | 40 |
| Temperature of working environment t, °C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | Electric drive |
Detail of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1
Material specification of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1:
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
| 12 | Lever | SS201/SS304 | 1 |
| 13 | Handle shell | PVC | 1 |
| 14 | Stopper | SS201/SS304 | 1 |
Sketch of ball valve DNOVA BV3131P(3pc)-FP-F-F-ISO-H QT-N-EM-O1-220VAC-U1
Overall and installation dimensions of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1:
| DN | d, mm | D, mm | L1, mm | L±1.5, mm | H, mm |
| 15 MINI | 15 | 95 | 123 | 130 | 113 |
| 20 MINI | 20 | 105 | 123 | 150 | 113 |
| 25 MINI | 25 | 115 | 123 | 160 | 113 |
| 32 MINI | 32 | 140 | 123 | 180 | 113 |
| 15 | 15 | 95 | 123 | 130 | 113 |
| 20 | 20 | 105 | 123 | 150 | 113 |
| 25 | 25 | 115 | 123 | 160 | 113 |
| 32 | 32 | 140 | 123 | 180 | 113 |
| 40 | 40 | 150 | 160 | 200 | 146 |
| 50 | 50 | 165 | 160 | 230 | 146 |
| 65 | 65 | 185 | 189 | 290 | 163 |
| 80 | 80 | 200 | 268 | 310 | 212 |
| 100 | 100 | 234 | 268 | 350 | 212 |
| 100 22x22, F10 | 100 | 220 | 269 | 350 | 155 |
Characteristics of actuators
| Drive model | Torque, Nm | Power, W | Current, A | Rod size sq. mm | Weight, kg |
| DNOVA-003 | 30 | 9 | 0.15 | 11x11 | 2.35 |
| DNOVA-005 | 50 | 15 | 0.25 | 14x14 | 3.26 |
| DNOVA-010 | 100 | 30 | 0.35 | 17x17 | 4.6 |
| DNOVA-020 | 200 | 90 | 0.3 | 27x27 | 10 |
| DNOVA-030 | 300 | 60 | 0.31 | 27x27 | 10 |
- Port opening
- Full Port
- Configuration
- Two-way
- Body material
- Stainless steel AISI 304
- Material ball seal
- PTFE
- Maximum allowable temperature
- 180 °C
- Connection type
- Flanged
- Control type
- Electric actuator
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply, Heat Supply, and Pneumatic Systems
- Voltage
- 220 V
- Actuator cycle time
- 20s
- Valve feedback
- Limit switches
- Explosion-proof
- No
- Torque
- 30 Nm
- Limit switches
- Yes
- Type of electric actuator
- Quarter-turn
- Control signal
- ON/OFF
- Rated current consumption
- 0.15 A
- Country of origin
- China
