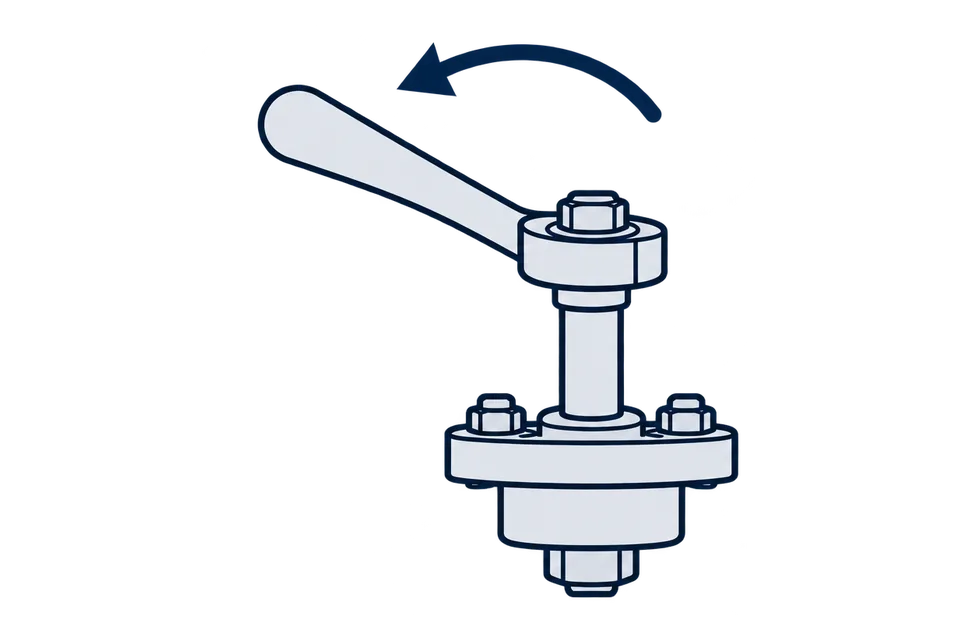

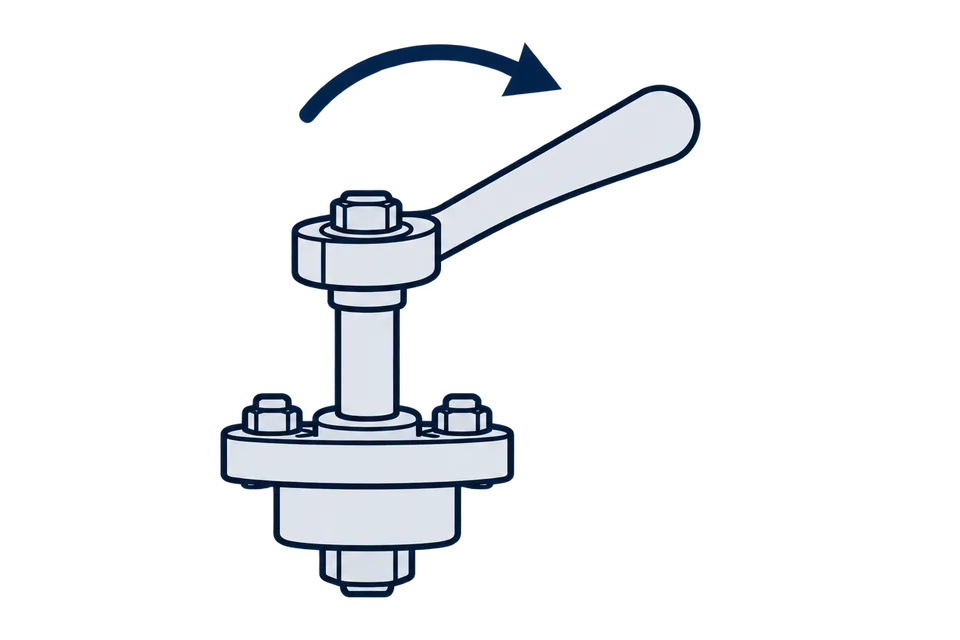

Quarter-turn lever
Two-way ball valve
The number that matters
Max. medium temperature
230°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
Stainless steel ball valve DNOVA BV3232P(2pn)-FP-T-H full port, threaded connection, with handle is used as shut-off valves in heat supply systems, water supply, steam, fuel systems with compressed air and neutral gases. Installation of cranes of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the crane. The use of ball valves as control valves is not allowed.
Ball valve overall dimensions DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
| DN, mm | Inches | D, mm | H, mm | W, mm | L, mm | Øòîê | ISO flange | Weight, kg |
| 8 | 1/4" | 9.2 | 41.5 | 76 | 42 | 7x7 | F03 | 0.13 |
| 10 | 3/8" | 10 | 42.7 | 76 | 43.7 | 7x7 | F03 | 0.14 |
| 15 | 1/2" | 14.5 | 47.7 | 85 | 52 | 9x9 | F03 | 0.22 |
| 20 | 3/4" | 19 | 56 | 95 | 61 | 9x9 | F03 | 0.32 |
| 25 | 1" | 24 | 68 | 120 | 72 | 11x11 | F05 | 0.54 |
| 32 | 1 1/4" | 30 | 72.3 | 120 | 84 | 11x11 | F05 | 0.80 |
| 40 | 1 1/2" | 37 | 85 | 150 | 94 | 14x14 | F07 | 1.26 |
| 50 | 2" | 47 | 90.8 | 150 | 115 | 14x14 | F07 | 1.69 |
| 65 | 2 1/2" | 61 | 115.3 | 215 | 142 | 17x17 | F07 | 3.52 |
| 80 | 3" | 76 | 125.8 | 215 | 165 | 17x17 | F10 | 5.12 |
| 100 | 4" | 94 | 155.5 | 300 | 215 | 22x22 | F10 | 10.46 |
Ball Valve Detail Sketch DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
Ball valve component materials DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
| ¹ | Part name | Material |
| 1 | Body | CF8M steel |
| 2 | Saddle | PTFE |
| 3 | Char | steel 316 |
| 4 | Gasket | PTFE |
| 5 | Housing cover | steel CF8M |
| 6 | Stem | steel 316 |
| 7 | Stem washer | PTFE |
| 8 | gland | PTFE |
| 9 | Gland cover | steel 304 |
| 10 | Handle | steel + PVC |
| 11 | spring washer | steel 304 |
| 12 | Nut | steel 304 |
Ball Valve Detail Sketch DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
- Port opening
- Full Port
- Configuration
- Two-way
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 316
- Material ball seal
- PTFE
- Maximum allowable temperature
- 230 °C
- Connection type
- Threaded NPT/BSP
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply and Heat Supply
- Country of origin
- China
