How it works
Quarter-turn lever

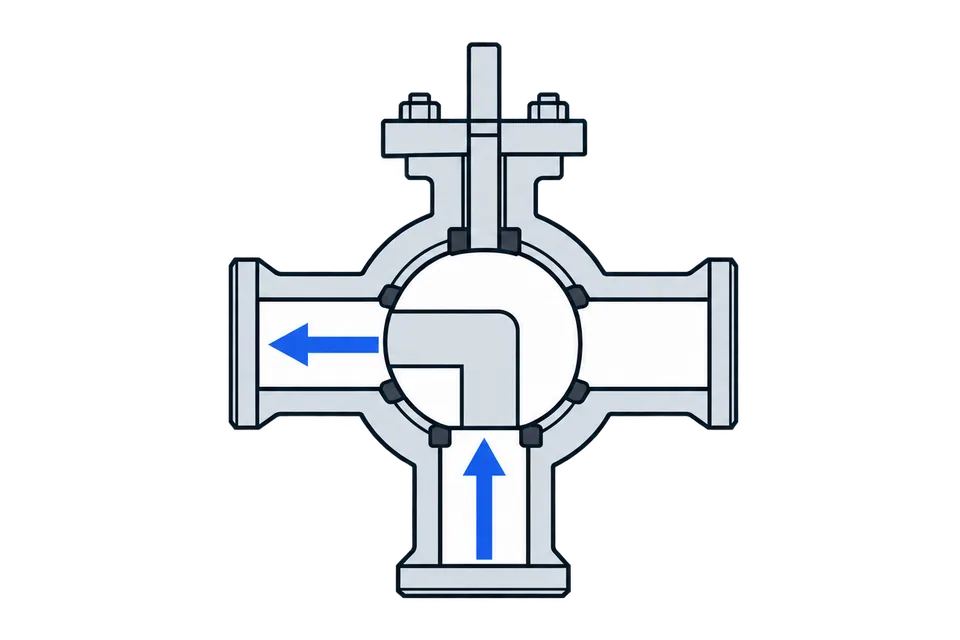

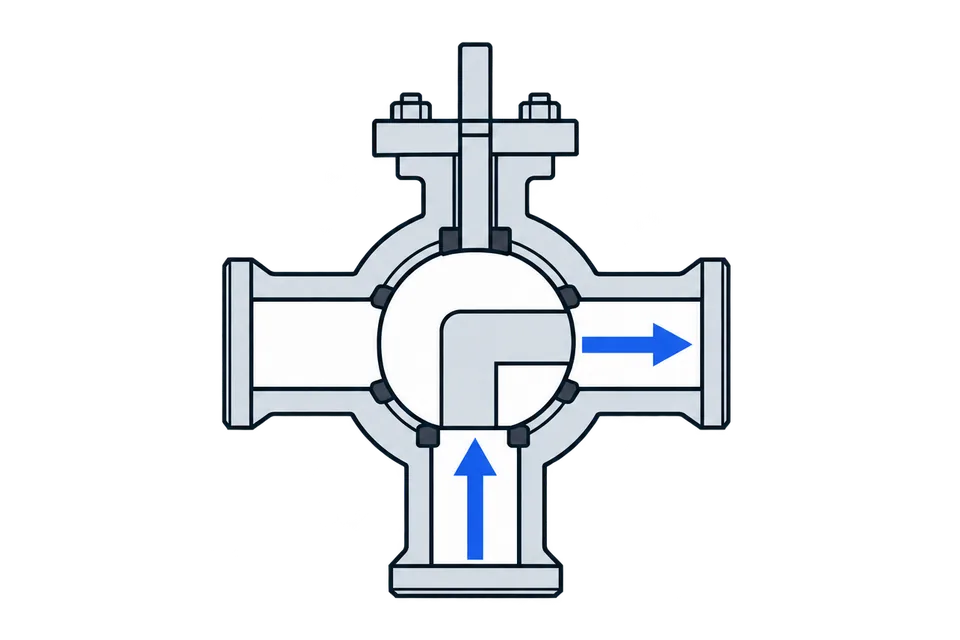

Three-way L-port ball
The number that matters
Max. medium temperature
392°F / 200 °C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
- Steam Supply
Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.
Ball valve overall dimensions DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H PN63 with ISO 5211 mounting pad and handle
| DN | D | L±1.5 | L1 | H1 | H | T | C | ISO 5211 | Weight L-type |
| 10 | 10 | 71 | 55 | 13 | 56 | 100 | 9 | F03/F04 | 0,530 |
| 15 | 12 | 71 | 55 | 13 | 55 | 131 | 9 | F03/F04 | 0,475 |
| 20 | 15 | 82 | 63 | 10 | 73 | 131 | 9 | F03/F04 | 0,800 |
| 25 | 18 | 98 | 72 | 13 | 78,5 | 167 | 11 | F04/F05 | 1,165 |
| 32 | 25 | 118 | 92 | 12 | 90 | 167 | 11 | F04/F05 | 2,255 |
| 40 | 32 | 122 | 100 | 20 | 115 | 193 | 14 | F05/F07 | 3,555 |
| 50 | 38 | 150 | 119 | 19 | 122 | 193 | 14 | F05/F07 | 4,730 |
| 65 | 50 | 178 | 142 | 20 | 138 | 242 | 17 | F07/F10 | 7,000 |
| 80 | 64 | 202 | 163 | 18 | 163 | 150 | 17 | F07/F10 | 9,970 |
| 100 | 78 | 231 | 192 | 25 | 192 | 154 | 17 | F07/F10 | 14,245 |
Ball Valve Detail Sketch DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H PN63 with ISO 5211 mounting pad and handle
Ball valve component materials DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H PN63 with ISO 5211 mounting pad and handle
| № | Part name | Material | Quantity |
| 1 | Cover | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Connection gasket | PTFE/RPTFE | 3 |
| 4 | thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE/RPTFE | 1 |
| 6 | Stem | S304 / S316 | 1 |
| 7 | gland | SS304 | 1 |
| 8 | Nut | SS304 | 2 |
| 9 | bolt ball | S304 / S316 | 1 |
| 10 | Body | SS316 | 1 |
| 11 | Handle | S304 | 1 |
| 12 | Handle shell | PVC | 1 |
| 13 | Stopper | SS304 | 1 |
Ball Valve Detail Sketch DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H PN63 with ISO 5211 mounting pad and handle
- Port opening
- Standard Port
- Configuration
- Three way Type L
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 316
- Material ball seal
- PTFE
- Maximum allowable temperature
- 392 °F / 200 °C
- Connection type
- Threaded NPT/BSP
- Control type
- Lever handle
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply, Heat Supply, and Steam Supply
- Country of origin
- China
