Spring check valve
The number that matters
Nominal pressure
63bar##40 bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products

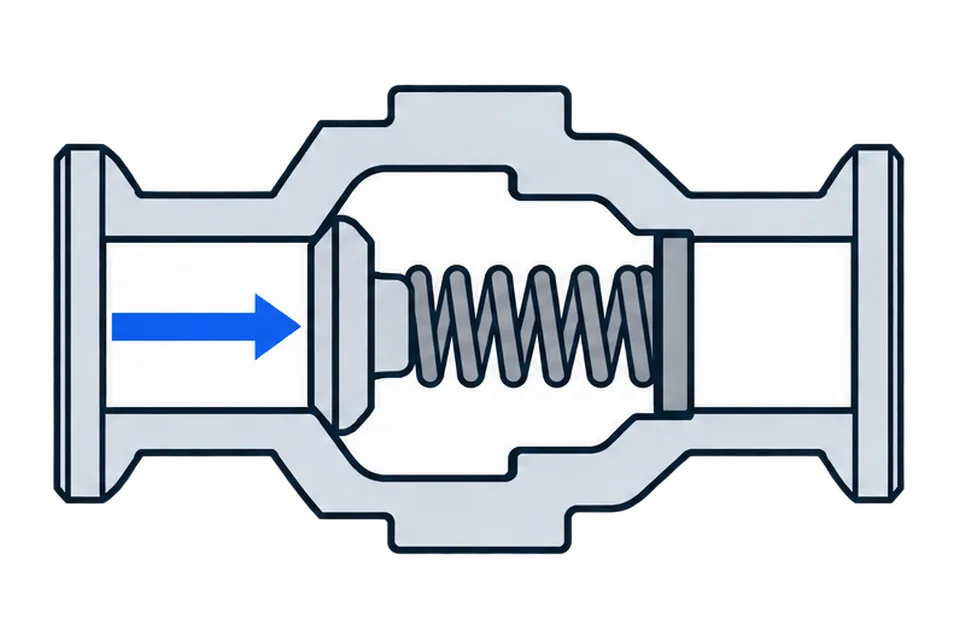

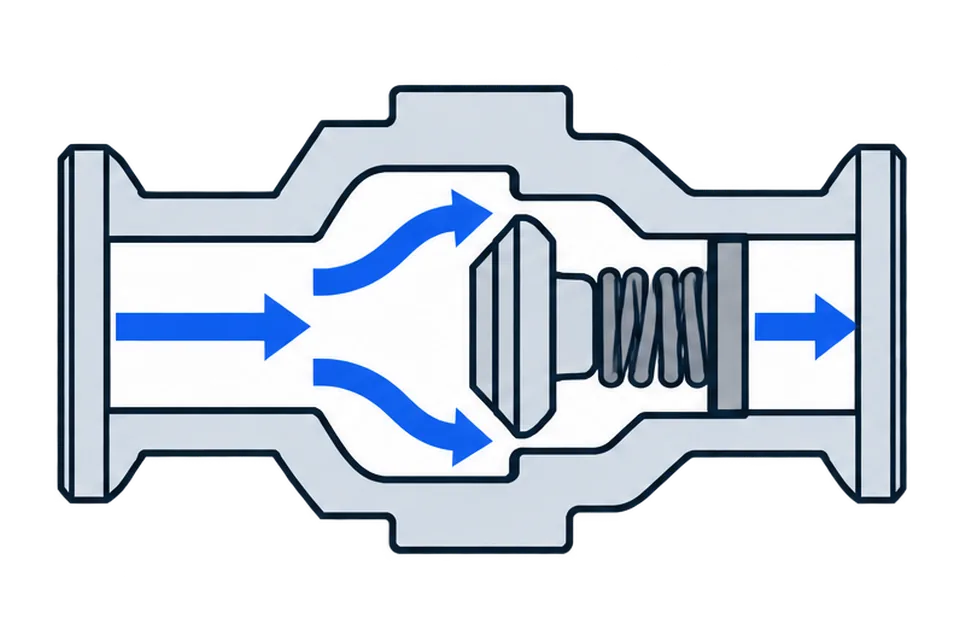

A spring check valve is designed to prevent the reverse flow of the working medium in the pipeline. The reverse flow is blocked by pressing the valve disc against its seat under the action of the spring and the reverse flow pressure. The valve opens due to the pressure differential of the medium flow in the required direction, with the valve disc moving and compressing the spring.
Weight and dimensional parameters of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection
| Size | d, mm | L, mm | Weight, kg |
| DN15 | 15 | 58 | 0.21 |
| DN20 | 20 | 62 | 0.29 |
| DN25 | 25 | 76 | 0.4 |
| DN32 | 32 | 87 | 0.65 |
| DN40 | 40 | 102 | 0.98 |
| DN50 | 50 | 113 | 1.4 |
| DN65 | 65 | 133 | 2.44 |
| DN80 | 80 | 157 | 3.8 |
| DN100 | 100 | 180 | 6.6 |
Sketch of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection
Materials of parts of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection
| № | Part name | Material |
| 1 | Case | SS316 stainless steel |
| 2 | Disk | SS316 stainless steel |
| 3 | Spring | SS316 stainless steel |
| 4 | Connecting cover | SS316 stainless steel |
| 5 | O-ring | PTFE |
Material sketch of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 200 °C
- Connection type
- Threaded NPT/BSP
- Operating environment
- Water, Air, and Oil Products
- Nominal pressure
- 63 bar##40 bar
- Type of seal
- PTFE
- Locking material
- Stainless steel AISI 316/1.4401
- Check valve type
- Spring
- Country of origin
- China
