How it works

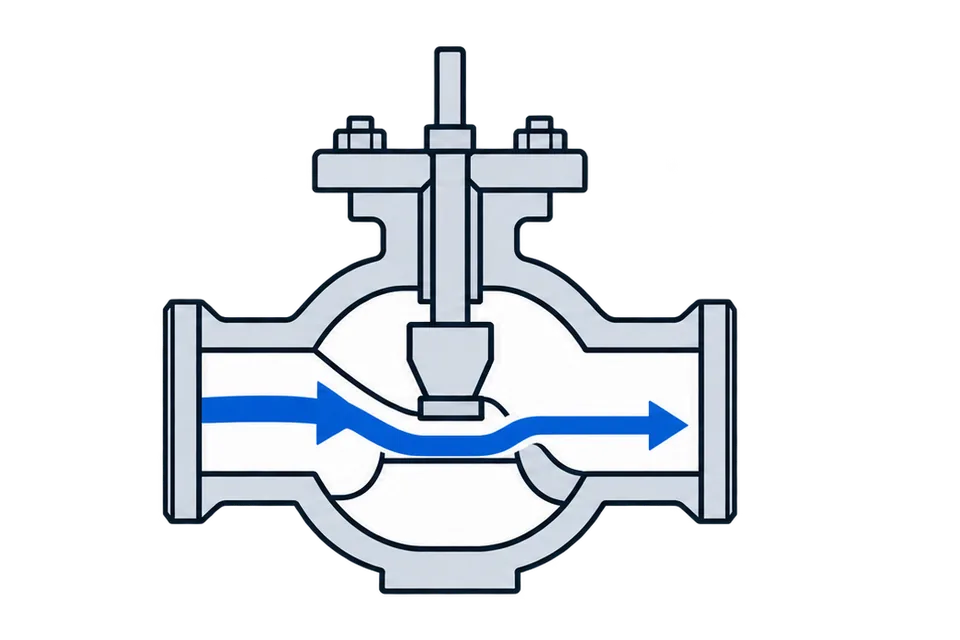

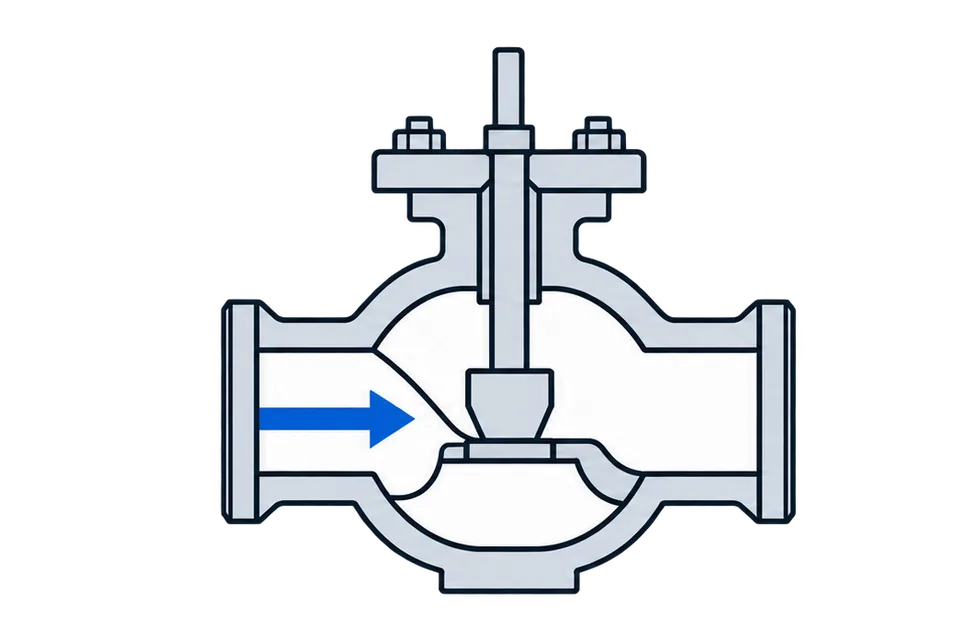

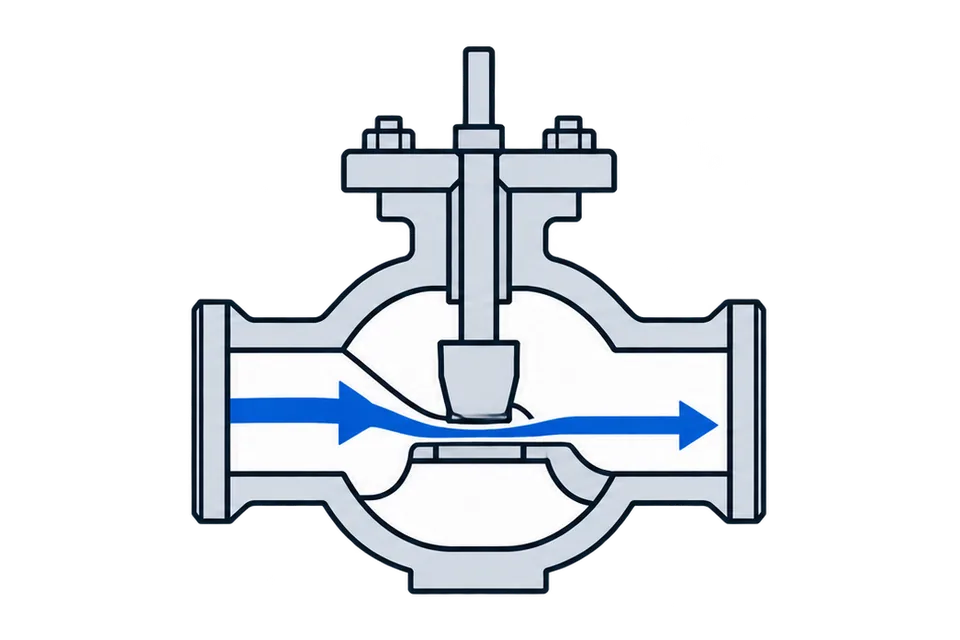

Two-way globe valve
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Heat Supply System
- Water Supply System
- Compressed Air Pipelines
- Steam Plants
- Industrial Pipelines
The pneumatic shut-off valve is designed for quickly shutting off the flow of working medium in a pipeline, which is especially important in emergency situations or for quickly isolating equipment.
Overall and installation dimensions of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
| DN | L | D | D1 | D2 | A | H | b | B | N | K | Weight, kg |
| 15 | 120 | 95 | 65 | 40 | 182 | 154 | 14 | 64 | 4 | G 1/4″ | 2.8 |
| 20 | 130 | 105 | 75 | 50 | 185 | 155 | 14 | 64 | 4 | G 1/4″ | 3.0 |
| 25 | 140 | 115 | 85 | 60 | 212 | 186 | 14 | 80 | 4 | G 1/4″ | 4.1 |
| 32 | 150 | 135 | 100 | 70 | 242 | 210 | 16 | 100 | 4 | G 1/4″ | 5.2 |
| 40 | 180 | 145 | 110 | 80 | 260 | 212 | 16 | 100 | 4 | G 1/4″ | 5.8 |
| 50 | 195 | 160 | 125 | 92 | 314 | 286 | 16 | 126 | 4 | G 1/4″ | 8.1 |
| 65 | 230 | 185 | 145 | 115 | 355 | 303 | 18 | 126 | 4 | G 1/4″ | 10.8 |
| 80 | 250 | 195 | 160 | 130 | 390 | 335 | 18 | 156 | 8 | G 1/4″ | 18.3 |
| 100 | 280 | 215 | 180 | 150 | 410 | 355 | 18 | 156 | 8 | G 1/4″ | 28.2 |
Sketch of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
Materials of parts of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
| № | Name | Material |
| 1 | Case | steel CF8M |
| 2 | Plunger | steel CF8M |
| 3 | Plunger seal | PTFE |
| 4, 5 | Stem seal | PTFE |
| 6 | Valve cover | steel CF8M |
| 7 | Stem | steel CF8M |
| 8 | Indicator cover | plastic |
| 9 | Drive housing | plastic |
| 10 | Spring | steel 60Si2MnA |
| 11 | piston | aluminum alloy AD31 |
| 12 | Piston O-ring seal | VITON |
| 13 | Sealing | NBR |
| 14 | Spring | steel 60Si2MnA |
| 15 | Stem seal | VITON |
Material sketch of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
- Body material
- Stainless steel CF8M
- Connection type
- Flanged
- Operating environment
- Water, Air, and Oil Products
- Applications
- Heat Supply System, Water Supply System, Compressed Air Pipelines, Steam Plants, and Industrial Pipelines
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
