Description

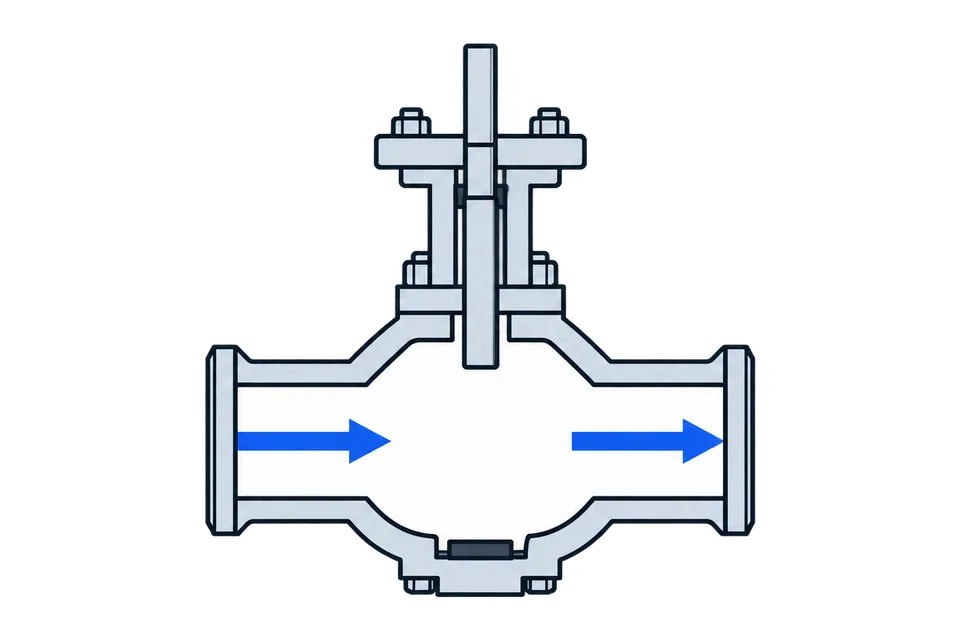

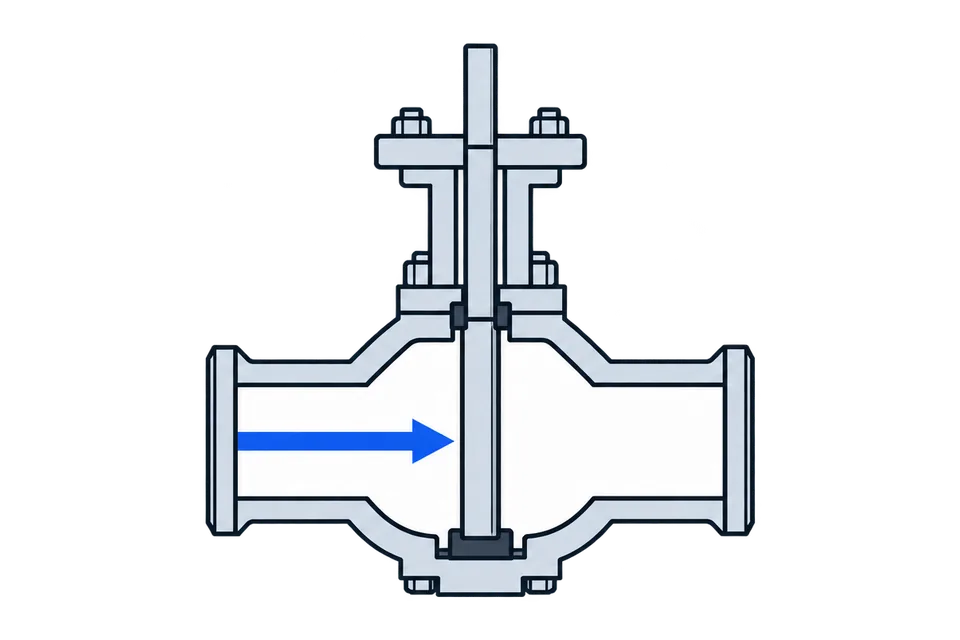

Knife Gate Valve wafer type Elephant GGG40-SS304-EPDM-2W-DA PSI145 Class 125 with pneumatic actuator and 4V210-08 KUOIN 220V pneumatic solenoid valve is designed to shut off the flow of the working medium in pipelines in sewerage systems and treatment facilities, the food and mining industries. A 4V210-08 KUOIN-220 pneumatic distributor is installed on the pneumatic drive housing and is designed to change the direction, start, and stop of compressed air flows in the pneumatic system depending on external control input.
Overall and installation dimensions of the gate valve Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator
| DN | L±2 | ØD | ØD1 | ØD2 | D0 | Ød | H | N-Th, pcs-thread | Weight |
| mm | |||||||||
| 50 | 48 | 165 | 125 | 99 | 80 | 18 | 455 | 4-M16 | 9 |
| 65 | 48 | 185 | 145 | 118 | 100 | 18 | 500 | 4-M16 | 11 |
| 80 | 51 | 200 | 160 | 132 | 100 | 18 | 530 | 8-M16 | 14 |
| 100 | 51 | 220 | 180 | 156 | 125 | 18 | 635 | 8-M16 | 17,5 |
| 125 | 57 | 250 | 210 | 184 | 125 | 18 | 715 | 8-M16 | 21 |
| 150 | 57 | 285 | 240 | 212 | 160 | 23 | 810 | 8-M20 | 29 |
| 200 | 70 | 340 | 295 | 266 | 160 | 23 | 955 | 8-M20 | 41 |
| 250 | 70 | 395 | 350 | 319 | 200 | 23 | 1090 | 12-M20 | 62 |
| 300 | 76 | 445 | 400 | 370 | 200 | 23 | 1225 | 12-M20 | 75 |
Valve sketch Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated
Construction and materials of the gate Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator
| № | Part name | Material |
| 1 | Body | Cast iron GGG40 |
| 2 | Gland seal | EPDM |
| 3 | Knife | Steel AISI304 |
| 4 | Guide | PTFE |
| 5 | gland | Carbon steel WCB |
| 6, 13 | Bolt | Steel AISI201 |
| 7-8 | Nut/Bolt | Steel AISI201 |
| 9 | Stem | Steel AISI201 |
| 10 | Split pin | Steel AISI201 or WCB (DN150-300) |
| 11 | Protective plate | Steel A3 |
| 12 | Support plate | Carbon steel WCB |
| 14 | Nut/Bolt | Steel AISI201 |
| 15 | Pneumatic actuator | - |
| 16 | Seat seal | NBR nitrile |
Valve sketch Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated
Specifications
