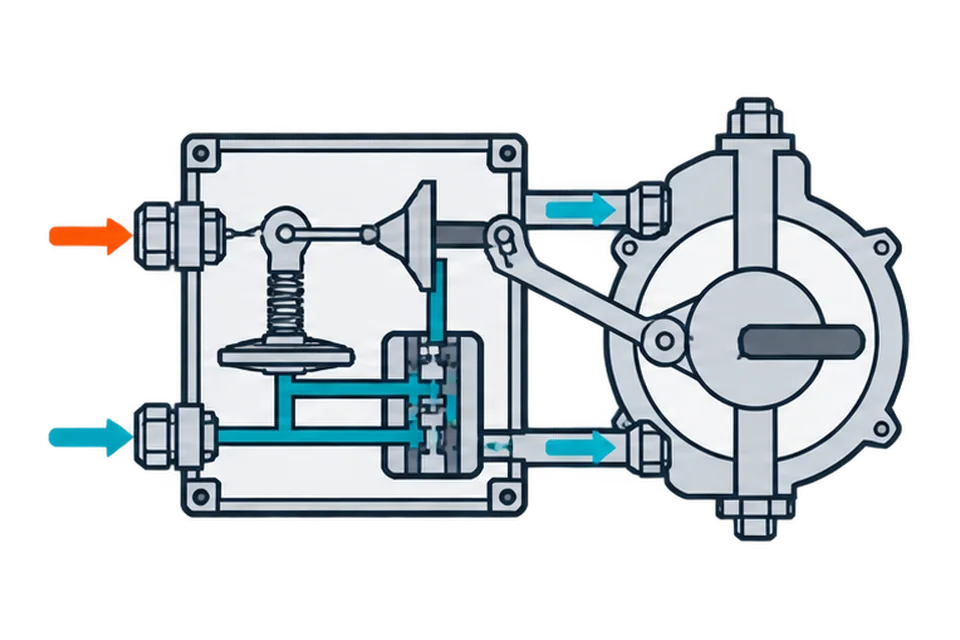

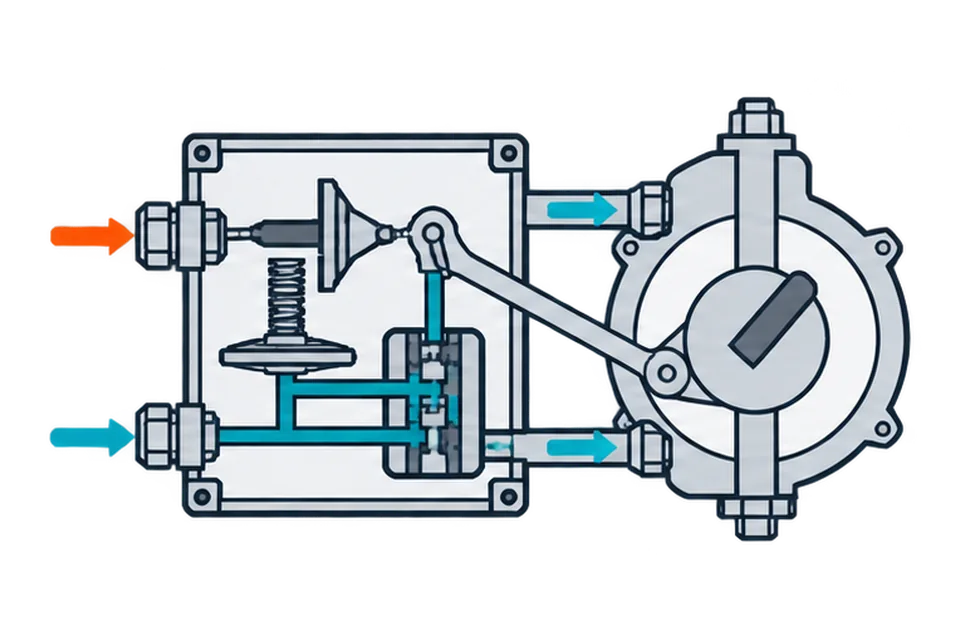

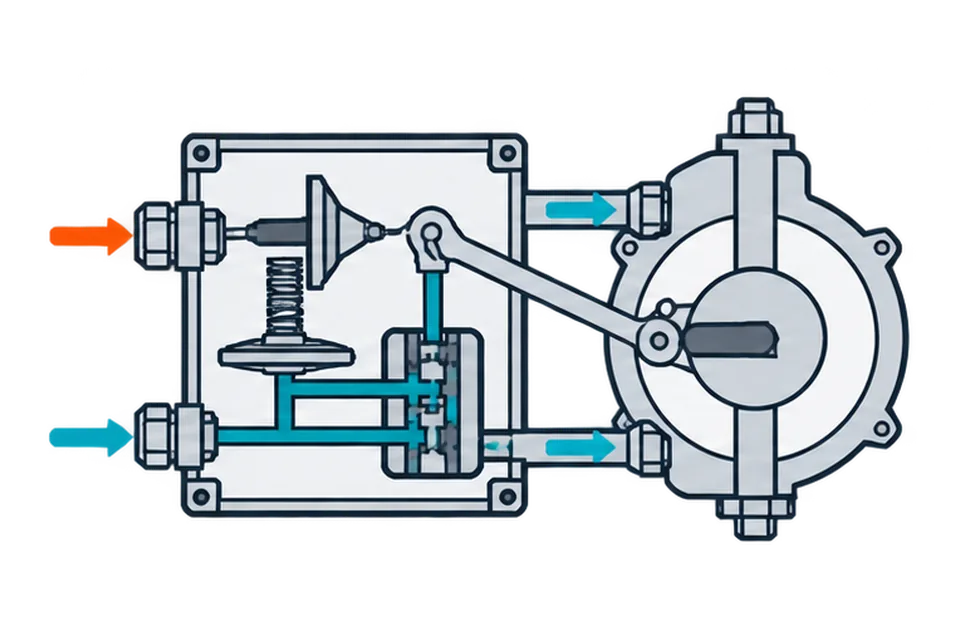

How it works
Rotary positioner
The number that matters
Nominal pressure
7bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
A device used to rotate mechanical components such as valves, dampers, or other similar devices by combining electrical and pneumatic control signals. This type of actuator enables automation in various industrial processes by allowing remote control of the rotation of different devices. It finds widespread use in automated control and regulation systems, particularly in industrial and manufacturing environments.
Parameters Electropneumatic rotary positioners DNOVA YT-1000RSN without feedback, body material - aluminium alloy
| Type of action | Unilateral |
| Inlet pressure | 1.7 to 7 bar |
| Compressed air consumption | 2 l/min |
| Operating temperature | -20°C to 70°C |
| Explosion protection | no |
| Airtightness class | IP66 |
| Case | Aluminum casting |
Dimension summary table Electropneumatic rotary positioners DNOVA YT-1000RSN without feedback, body material - aluminium alloy
| L | L1 | H | A | B | R (compressed air connection thread) |
|---|---|---|---|---|---|
| 129 | 245 | 178 | 92 | 71 | NPT 1/4" |
Sketch Electropneumatic rotary positioners DNOVA YT-1000RSN without feedback, body material - aluminium alloy
- Body material
- Aluminium alloy
- Maximum allowable temperature
- 70 °C
- Connection type
- Threaded NPT/BSP
- Nominal pressure
- 7 bar
- Feedback sensor
- No
- Country of origin
- China
