How it works

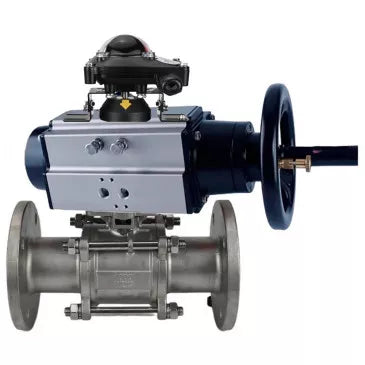

Double-acting rotary actuator
Two-way ball valve
Limit-switch box
The number that matters
Max. medium temperature
180°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Oil Products
- Liquid Media
- Neutral Media
- Gaseous Media
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Technical parameters of Ball valves DNOVA BV3232P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
Here is the translation of your table:
| Parameter | Value |
|---|---|
| Operating Medium Temperature, °C | from -20 to 180 |
| Valve Type | Two-way |
| Application | Water supply, heating supply, pneumatic systems |
| Working Medium | Water, steam, petroleum products, liquid medium, neutral media, gaseous media |
| Pipeline Connection | Flanged |
| Water-dispensing | No |
| Bore Type | Full bore |
| Tightness Class | A |
| Control Type | Pneumatic actuator |
| Connection Type | Flanged |
| Actuation | Double-acting pneumatic actuator |
| Limit Switches | No |
| Pneumatic Distributor | No |
| Electro-pneumatic Positioner | Yes |
| Warranty, years | 1 |
| Country of Manufacture | China |
Dimensions and dimensions of Ball valves DNOVA BV3232P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
| DN | ØD, mm | ØD1, mm | ØD2, mm | L, mm | A, mm | E, mm |
| 65 | 185 | 145 | 122 | 290 | 495 | 200 |
| 80 | 200 | 160 | 140 | 310 | 495 | 200 |
| 100 22x22, F10 | 220 | 180 | 158 | 350 | 495 | 200 |
Sketch of Water Butterfly Valve Ball valves DNOVA BV3232P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
Table of parts and materials for Ball valves DNOVA BV3232P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
| No. | Part Name | Material | Quantity |
|---|---|---|---|
| 1 | Body | Steel SS304 / SS316 | 1 |
| 2 | Ball Closure | Steel S304 / S316 | 1 |
| 3 | Bolt | Steel S201 / S304 | 4~6 |
| 4 | Nut | Steel S201 / S304 | 6~12 |
| 5 | Seal | PTFE | 1 |
| 6 | Stem | Steel SS304 / SS316 | 1 |
| 7 | Packing | Steel S201 / S304 | 1 |
| 8 | Cover | Steel WCB/CF8/CF8M | 2 |
| 9 | Seat Rings | PTFE | 2 |
| 10 | Thrust Washer | PTFE | 1 |
Sketch of parts and materials for Ball valves DNOVA BV3232P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4" |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of limit switch units DNOVA APL-210N
| Name | Value |
|---|---|
| Limit Switch Box Model | APL-210N |
| Enclosure Protection Rating, IP | 65 |
| Service Life, years | 10 |
Dimensions and dimensions of DNOVA APL-210N limit switch units
| Model | H | L | B | D | D1 | M |
| APL-210N | 77 | 112 | 88 | 10 | 5 | 20x1.5 |
Sketch of dimensions and dimensions of DNOVA APL-210N limit switch units
- Port opening
- full bore
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 180 °C
- Connection type
- Flanged
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
- Type of seal
- PTFE
- Voltage
- 220V
- Explosion-proof
- No
- Torque
- 85 Nm
- Limit switches
- have
- Type of pneumatic actuator
- double action
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
