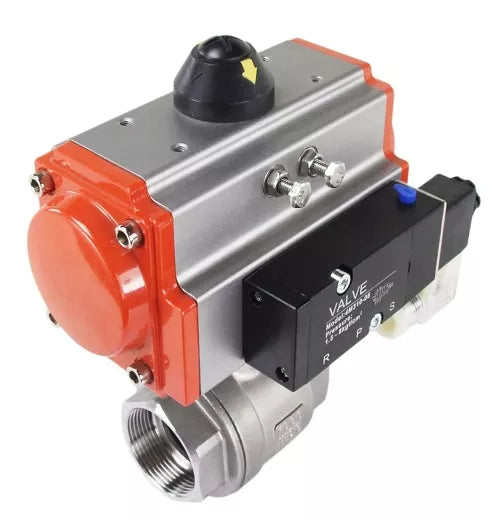

• Ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-08 220V
1 1

Parts

Ball valve BV3232P(2pc)-FP-T-ISO-H with pneumatic spring-return actuator

Spring-return · 4V320-08 220 V pilot · threaded · full bore · AISI 316 body · PTFE seal

Model BV3232P(2pc)-FP-T-ISO-H SKU D160-46541
$26.53 USD
$26.53 USD
Sale Sold out
Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.
Request a quote
View full details

How it works

Spring-return rotary actuator

Spring-return rotary actuator: Air supplied
Air suppliedAir turns the shaft against the springs.
Spring-return rotary actuator: Air removed
Air removedThe springs return the shaft to its rest position.

Two-way ball valve

Two-way ball valve: Closed
ClosedThe ball bore stands across the pipe.
Two-way ball valve: Open
OpenThe bore lines up with the pipe.

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Coil 14 pulse
Coil 14 pulseSupply 1 feeds port 4; port 2 exhausts through 3.
5/2 double-solenoid pilot: Coil 12 pulse
Coil 12 pulseSupply 1 feeds port 2; port 4 exhausts through 5.
5/2 double-solenoid pilot: Both coils off
Both coils offThe spool keeps its last position; the drawing retains the coil-14 example.

The number that matters

Max. medium temperature

230°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

  • Water
  • Air
  • Steam
  • Mildly Aggressive Media
  • Oils
  • Industrial Water
  • Water-Glycol Solutions
  • Petroleum Products

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

Technical parameters of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-08 220V:

Parameter

Value

Working medium temperature, °C

From -20 to 200

Application

Heat supply

Working medium

Water, air, steam, mildly aggressive media, oils, service water, water-glycol solutions, petroleum products

Pipeline connection

Coupling (threaded)

Type of passage section

Full bore

Control type

With pneumatic actuator

Connection

Female thread

Control

Pneumatic actuator with return springs

Presence of limit switches

No

Availability of pneumatic distributor

Yes

Warranty, years

1


Dimensions and sizes of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-08 220V:

Model D, mm L, mm B1, mm E, mm H2, mm
DN10 10 63 153 72 34
DN15 15 58 153 72 37
DN20 20 66 153 72 40
DN25 25 72 153 72 54
DN32 32 83 153 72 60
DN40 40 95 174 89 70
DN50 50 95 174 89 70
DN65 65 147 216 109 94.5
DN100 100 204 279 134 122


Table of parts and materials of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-08 220V:

№ Part name Material
1, 6 Body steel 316
2, 4 Ball seal PTFE
3 Char steel 316
5 O-ring PTFE
7 Stem steel 316
8 Stem seal PTFE
9 Stem nut steel 316
10 Handle stainless steel



Technical parameters of pneumatic actuator DNOVA

Parameter

Value

Construction

With return springs

Working pressure, bar

6

Working medium

Filtered compressed air or non-aggressive gases, oils

Availability of manual doubler

No


Dimensions and sizes of pneumatic actuator DNOVA:

Actuator model SA-052 SA-065 SA-083 SA-105 SA-130 SA-160
G, mm 15 15 15 25 25 30
M, mm 80 80 80 80 80 130
N, mm 30 30 30 30 30 30
F0, mm 34 34 34 41 62 62
P, mm 20 20 20 20 30 30
B1, mm 153 174 216 279 308 465
C, mm 30 36 46 55 67.5 87.5
E, mm 72 89 109 134 157 199
J 4-M5x8 4-M6x10 4-M6x10 4-M8x12 4-M8x12 4-M10x16
K 4-M6x10 4-M8x12 4-M8x12 4-M10x16 4-M10x16 4-M12x20
F, mm 26 26 26 26 36 38
A1, mm 108 125 152 189 210 310
D, mm 41 46 55 64 70 87.5
H F03 F05 F05 F07 F10 F10
I F05 F07 F07 F10 F12 F12
L 11x11 14x14 17x17 22x22 22x22 27x27


Parts and materials table for the pneumatic actuator DNOVA:

№

Name

Quantity

Material

Coating

1

Body

1

Extruded aluminum

Hard anodized

2

Side plugs

2

Cast aluminum

-

3

Gear

1

Stainless steel

Nickel-plated

4

Piston

2

Steel/Aluminum

Oxidation/galvanized

5

Plugs

8

Stainless steel

-

6

Piston ring

2

NBR

-

7

Springs

0–12

Spring steel

Epoxy coating

8

Piston bearing

2

Engineering plastic

-

9

Piston ring

2

NBR

-

10

Plug

2

NBR

-

11

Thrust ring

2

Engineering plastic

-

12

Ring

1

Engineering plastic

-

13

Washer

1

Stainless steel

-

14

Spring clip

2

Stainless steel

-

15

Indicator

1

Plastic

-

16

Indicator body

1

Plastic

-

17

Bearing

1

Engineering plastic

-

18

Cam

1

Steel

Oxidation/ galvanized steel

19

Bearing

1

NBR

-

20

Bearing

1

Engineering plastic

-

21

Bearing

1

Engineering plastic

-

22

Sealing ring

2

NBR

-

23

Sealing ring

2

NBR

-

24

Bearing

2

Stainless steel

-

25

Adjustment nut

2

Stainless steel

-

26

Adjustment screw

2

Stainless steel

-

27

Bushing

2

Aluminum

-


Technical parameters of pneumatic valve DNOVA

Name

Value

Type of pneumatic valve

Pool valve

Working pressure, bar

1.5 ÷ 8

Supply voltage, V

220 V

Full power, Va

4.5

Control

Two-way electromagnetic

Response frequency, cycle/sec

5


Dimensions and sizes of pneumatic valve DNOVA:

Model of pneumatic valve 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Port opening
full bore
Body material
Stainless steel AISI 316
Maximum allowable temperature
230 °C
Connection type
Threaded
Control type
Pneumatically actuated
Operating environment
Water, Air, Steam, Mildly Aggressive Media, Oils, Industrial Water, Water-Glycol Solutions, and Petroleum Products
Type of seal
PTFE
Voltage
220V
Explosion-proof
No
Torque
4 Nm
Limit switches
No
Type of pneumatic actuator
spring loaded
Country of origin
China

Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.

Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.

To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.

Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
