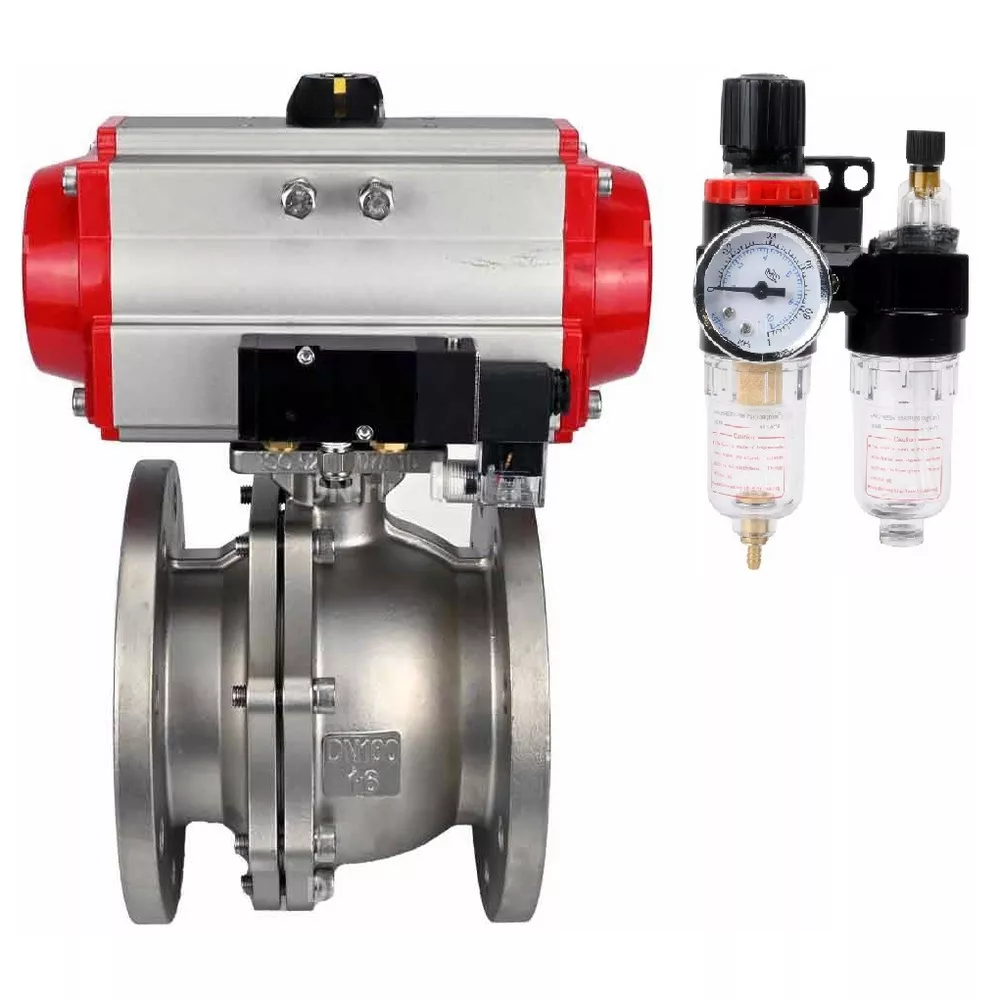

• Ball valves DNOVA BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with PA-SA pneumatic actuator with return springs, pneumatic distributor 4M310-08 220V and BPV AFC2000
1 1

Parts

Ball valve BV3232P(2pc)-FP-F-ISO-R with pneumatic spring-return actuator

PA-SA · 4M310-08 220V pilot · filter-regulator · flanged, AISI 316 body, PTFE seal

Model BV3232P(2pc)-FP-F-ISO-R SKU D160-49532
$804.36 USD
$804.36 USD
Sale Sold out
Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.
Request a quote
View full details

How it works

Spring-return rotary actuator

Spring-return rotary actuator: Air supplied
Air suppliedAir turns the shaft against the springs.
Spring-return rotary actuator: Air removed
Air removedThe springs return the shaft to its rest position.

Two-way ball valve

Two-way ball valve: Closed
ClosedThe ball bore stands across the pipe.
Two-way ball valve: Open
OpenThe bore lines up with the pipe.

5/2 single-solenoid pilot

5/2 single-solenoid pilot: Coil off
Coil offSupply 1 feeds port 2; port 4 exhausts through 5.
5/2 single-solenoid pilot: Coil on
Coil onSupply 1 feeds port 4; port 2 exhausts through 3.

The number that matters

Max. medium temperature

150°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

  • Water
  • Air
  • Neutral Media

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

DNOVA pneumatic double-acting rotary actuators PADA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.



Technical parameters of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

Parameter Value
Nominal Pressure PN, bar 16
Operating Temperature, °C -29 to 150
Valve Type Two-way
Application Water supply, heating, industry
Working Medium Water, air, neutral media
Pipeline Connection Flanged
Water-drawing No
Bore Type Full bore
Control Type With pneumatic actuator
Connection Type Flanged
Operation Double-acting pneumatic actuator
Limit Switches No
Pneumatic Distributor Yes
Electro-pneumatic Positioner No
Average Service Life, years 10
Warranty, years 1
Country of Manufacture China

Dimensions and dimensions of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

DN L D D1 D2 f b H n–Ød Rod square ISO 5211 Weight, kg
mm
200 400 340 295 268 2 24 180 12–Ø22 27x27 F12/F14 118
250 450 405 355 320 2 26 296 12–Ø26 27x27 F12/F14 206
300 610 460 410 378 2 28 305 12–Ø26 36x36 F14 266

Sketch dimensions and dimensions of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

Table of parts and materials for ball valves DNOVA BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

№ Part Name Material
1 Body Stainless steel 316
2 Gasket Stainless steel 316 + Graphite
3 Cover Stainless steel 316
4 Nut Stainless steel ASTM A193 Gr.B8M Cl2
5 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
6 Ball Seal PTFE
7 Ball Stainless steel 316
8 Stem Stainless steel 316
9 Support Pad PTFE
10 Stem Seal PTFE
11 Packing Seal Stainless steel 316
12 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
13 Support Frame Stainless steel 304
14 Gasket Stainless steel 304
15 Stud Stainless steel ASTM A193 Gr.B8M Cl2
16 Nut Stainless steel ASTM A193 Gr.B8M Cl2
17 Cushioning Gasket Stainless steel
18 Stud Stainless steel ASTM A193 Gr.B8M Cl2
19 Nut Stainless steel ASTM A193 Gr.B8M Cl2
20 Gear Transmission Steel 45
22 Screw Stainless steel ASTM A193 Gr.B8M Cl2

Parts and materials sketch for ball valves DNOVA BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, °C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs


Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs

Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs

Technical parameters of pneumatic valve DNOVA 4M310-08 220V

Parameter Value
Type of Pneumatic Valve Spool-type
Pneumatic Valve Model 4M310-08 220V
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Actuation Frequency, cycles/sec 5

Dimensions and dimensions of DNOVA 4M310-08 220V pneumatic directional control valve

Model 4M310-08
D mm 32
E, mm 69
F, mm 40
I, mm 45
K, mm 40
L, mm 134.5
M, mm 40
N, mm 24
S, mm 27
U, mm 2.4
H, mm 17.5

Sketch of dimensions and dimensions of pneumatic valve DNOVA 4M310-08 220V




Technical parameters of DNOVA AFC2000 air treatment unit

Parameter Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395



Dimensions and dimensions of DNOVA AFC2000 air treatment unit

Parameter Value
Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5

Sketch of dimensions and dimensions of DNOVA AFC2000 air treatment unit

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Port opening
full bore
Body material
Stainless steel AISI 316
Maximum allowable temperature
150 °C
Connection type
Flanged
Control type
Pneumatically actuated
Operating environment
Water, Air, and Neutral Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
No
Torque
380 Nm
Limit switches
No
Type of pneumatic actuator
spring loaded
Country of origin
China

Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.

Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.

To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.

Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
