How it works
Spring-return rotary actuator
Three-way L-port ball
Limit-switch box
The number that matters
Max. medium temperature
200°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Oil Products
- Liquid Media
- Neutral Media
- Gaseous Media
Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuators PA-SA are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators DNOVA are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

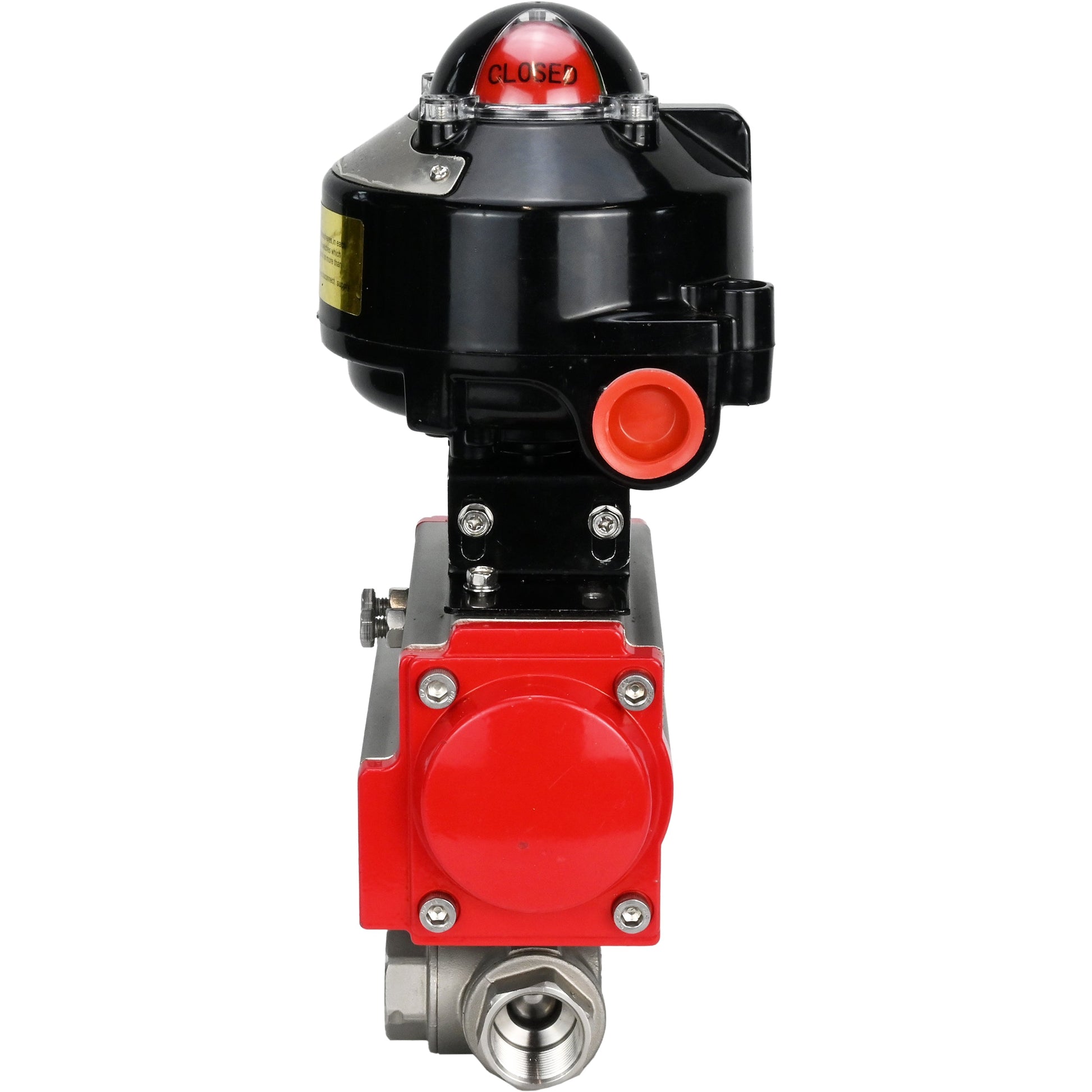

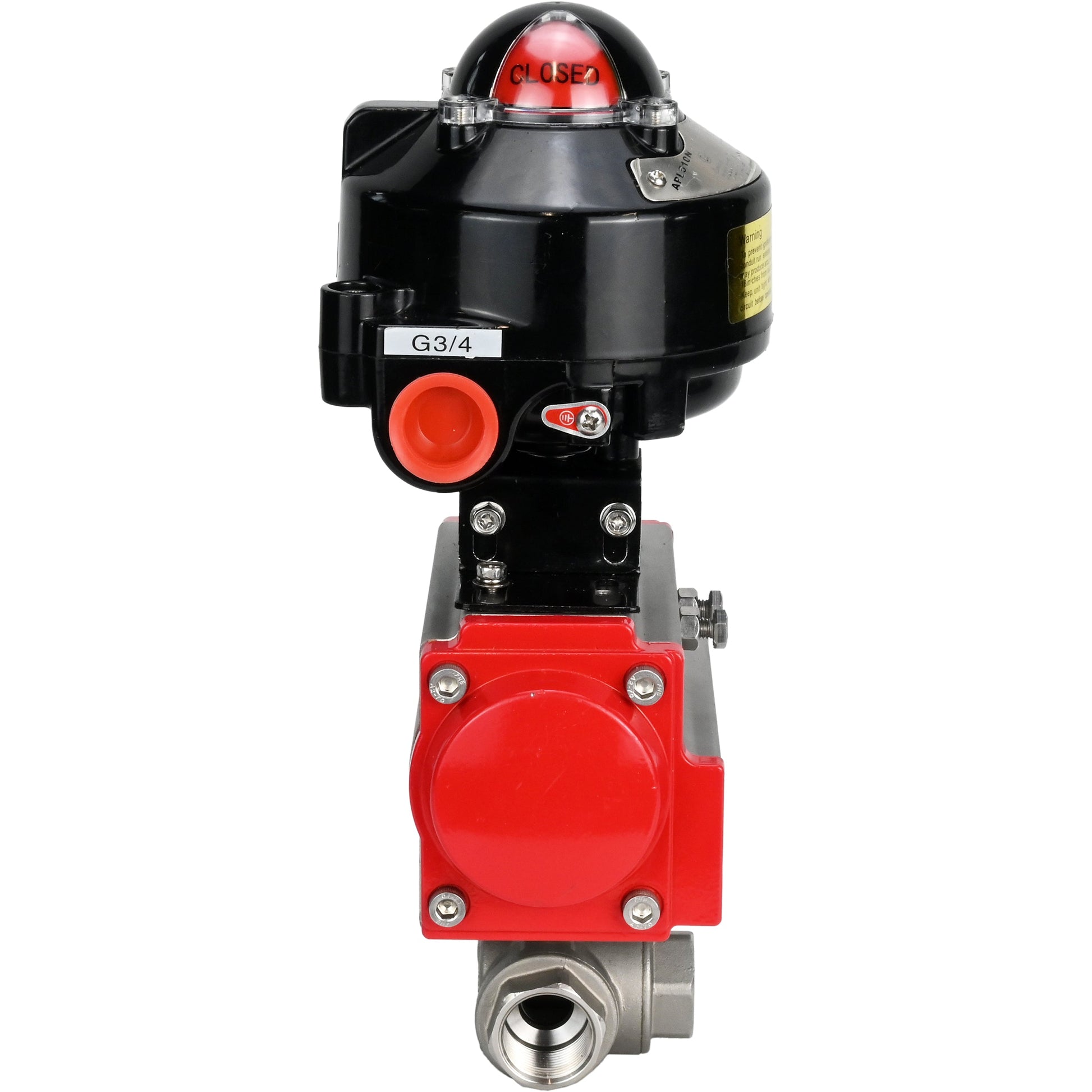

Limit switch unit DNOVA APL-510N-EX is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.

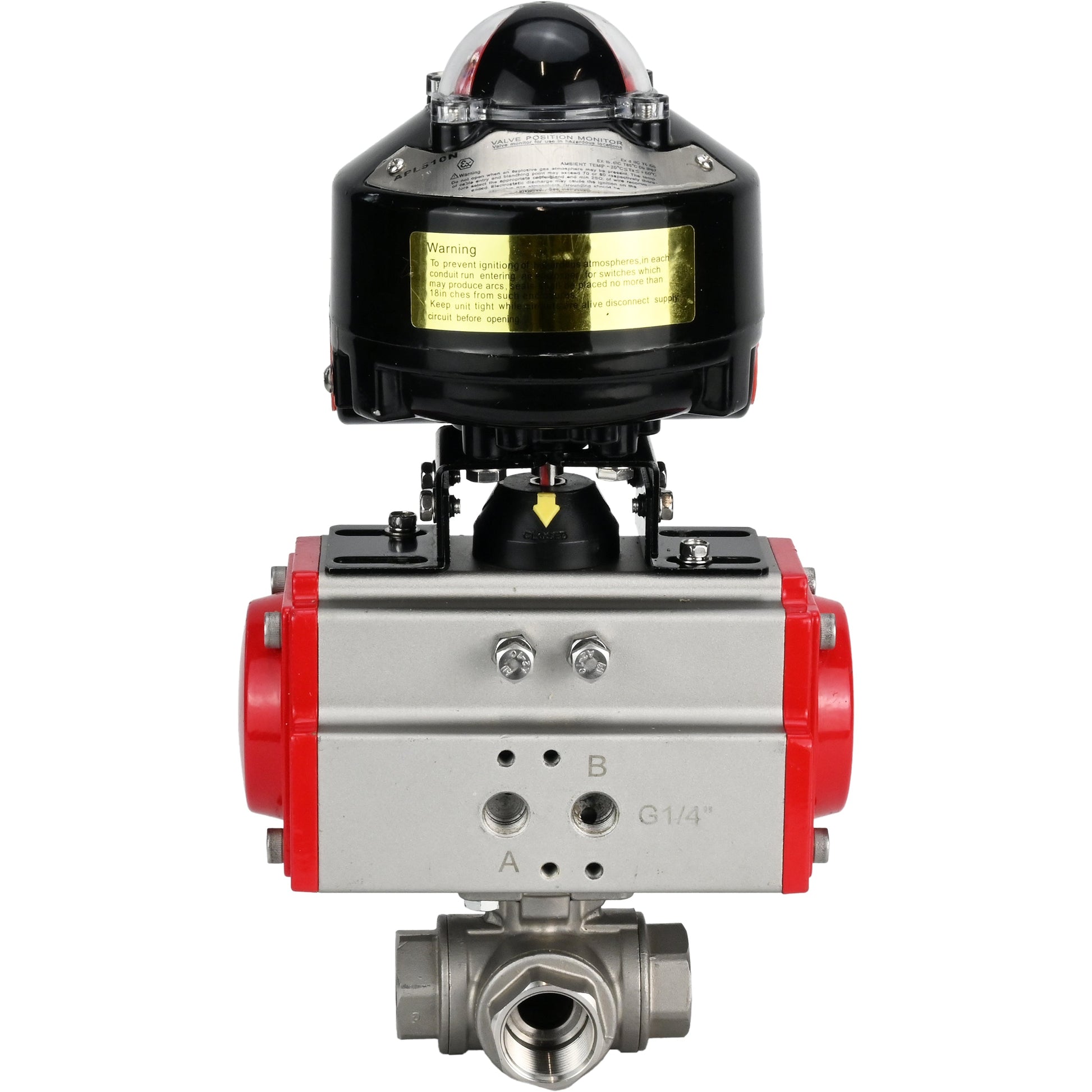

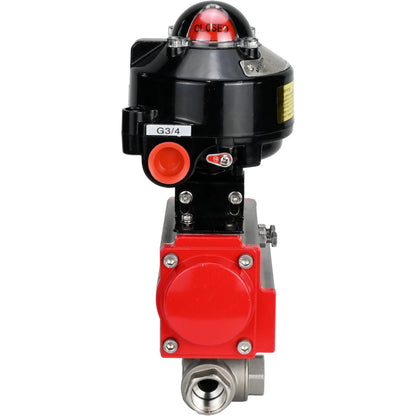

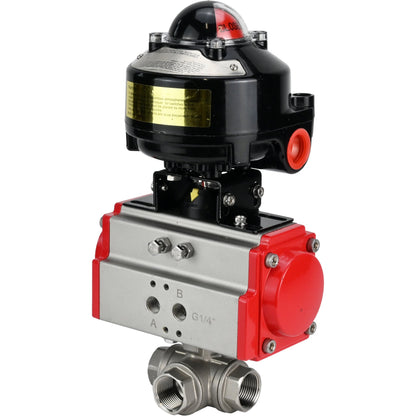

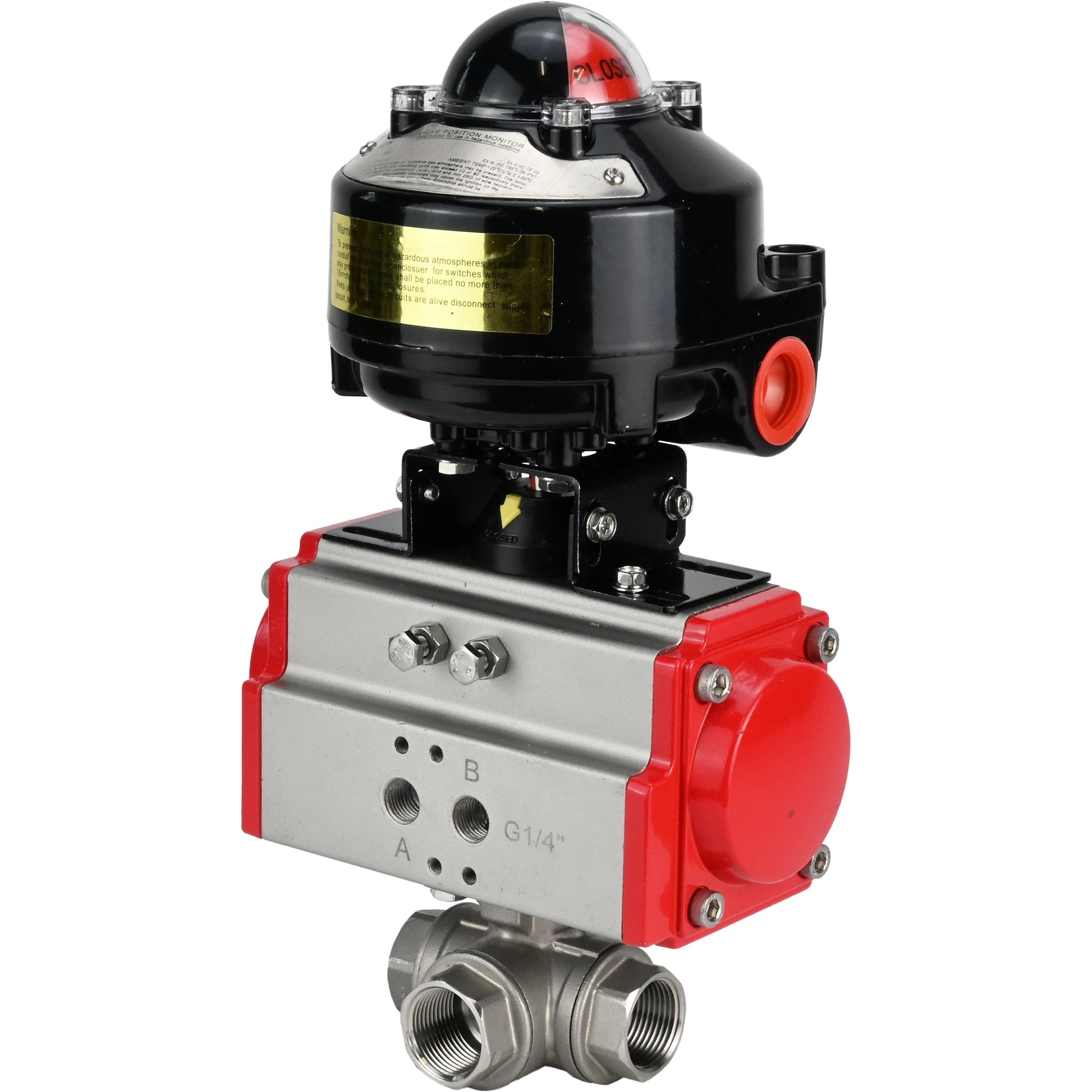

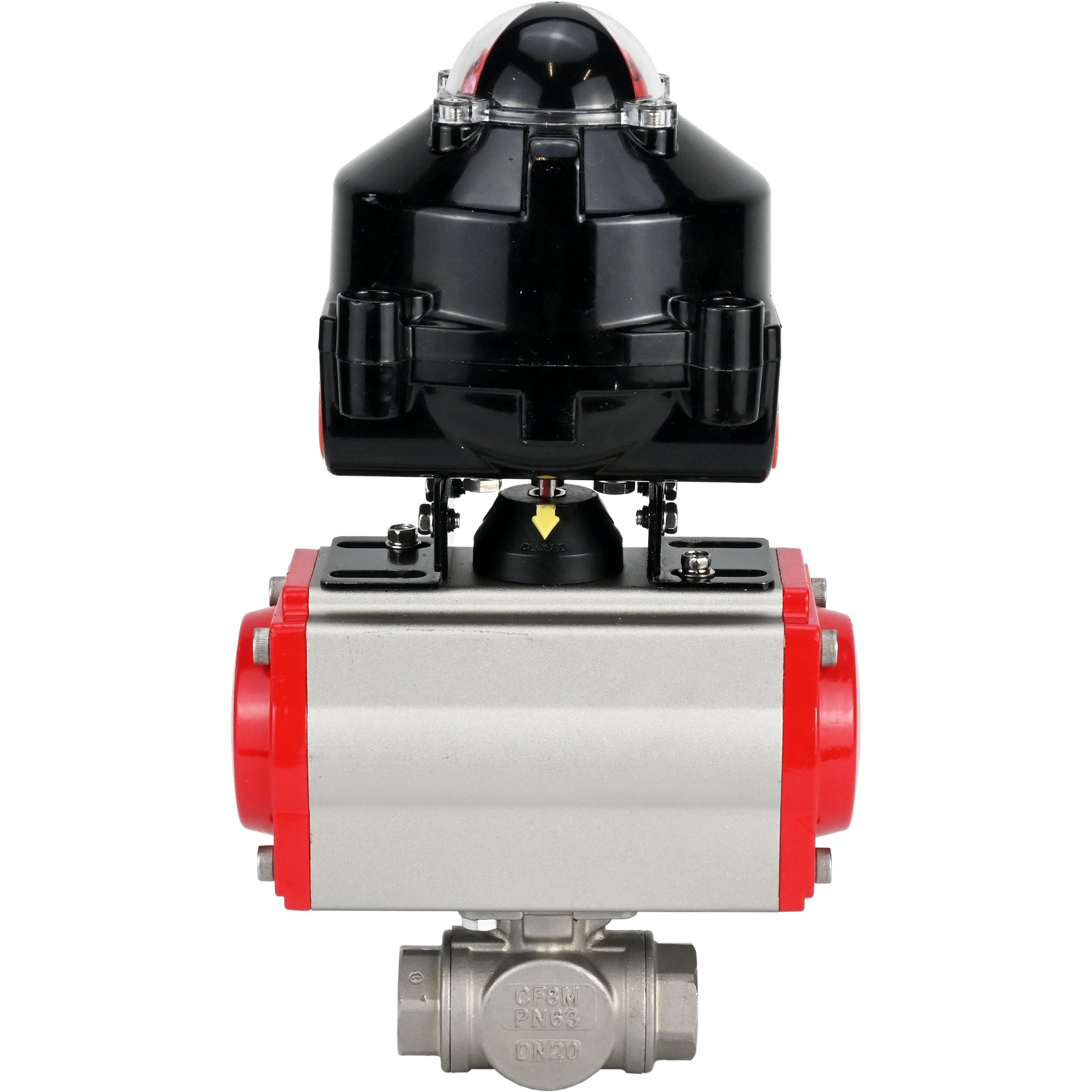

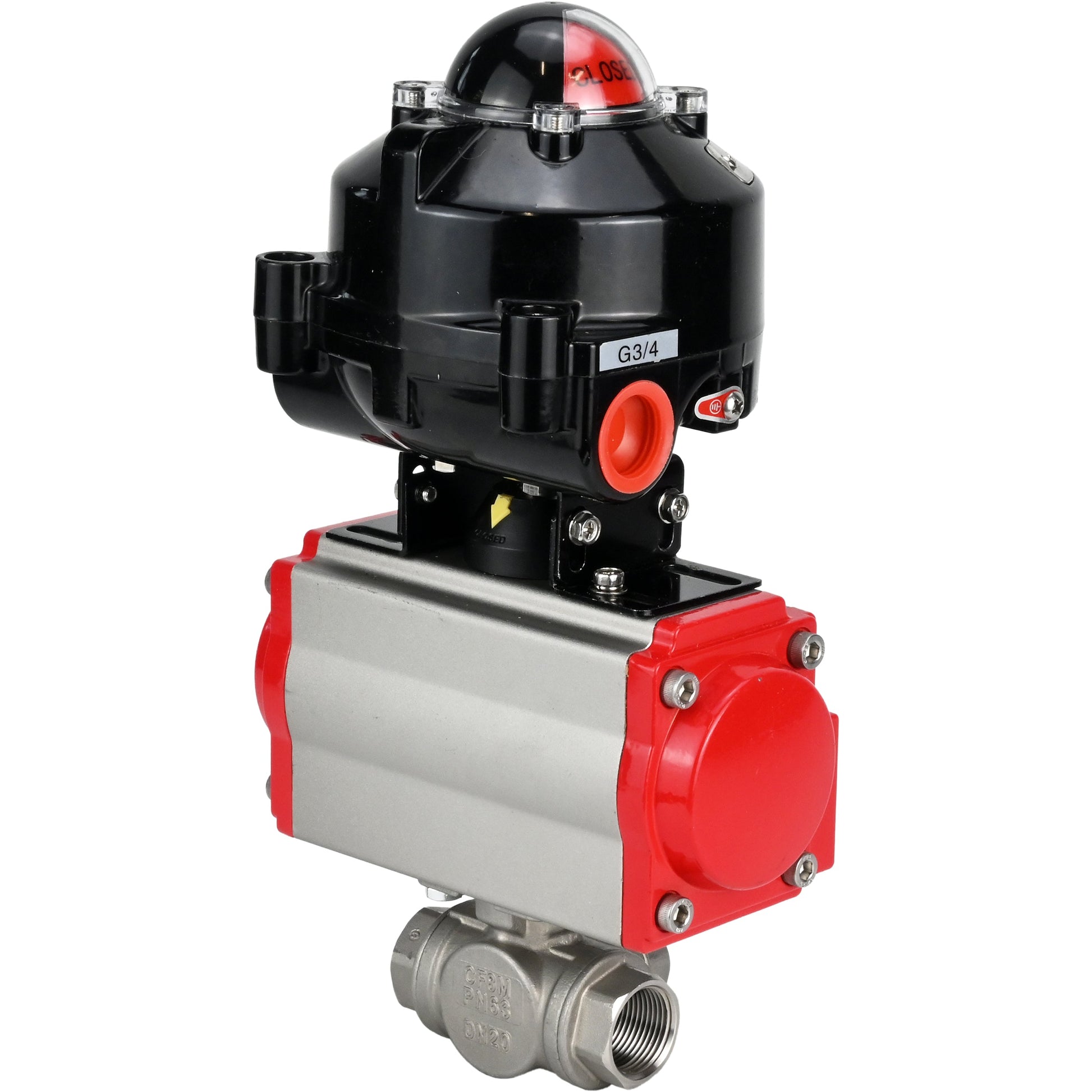

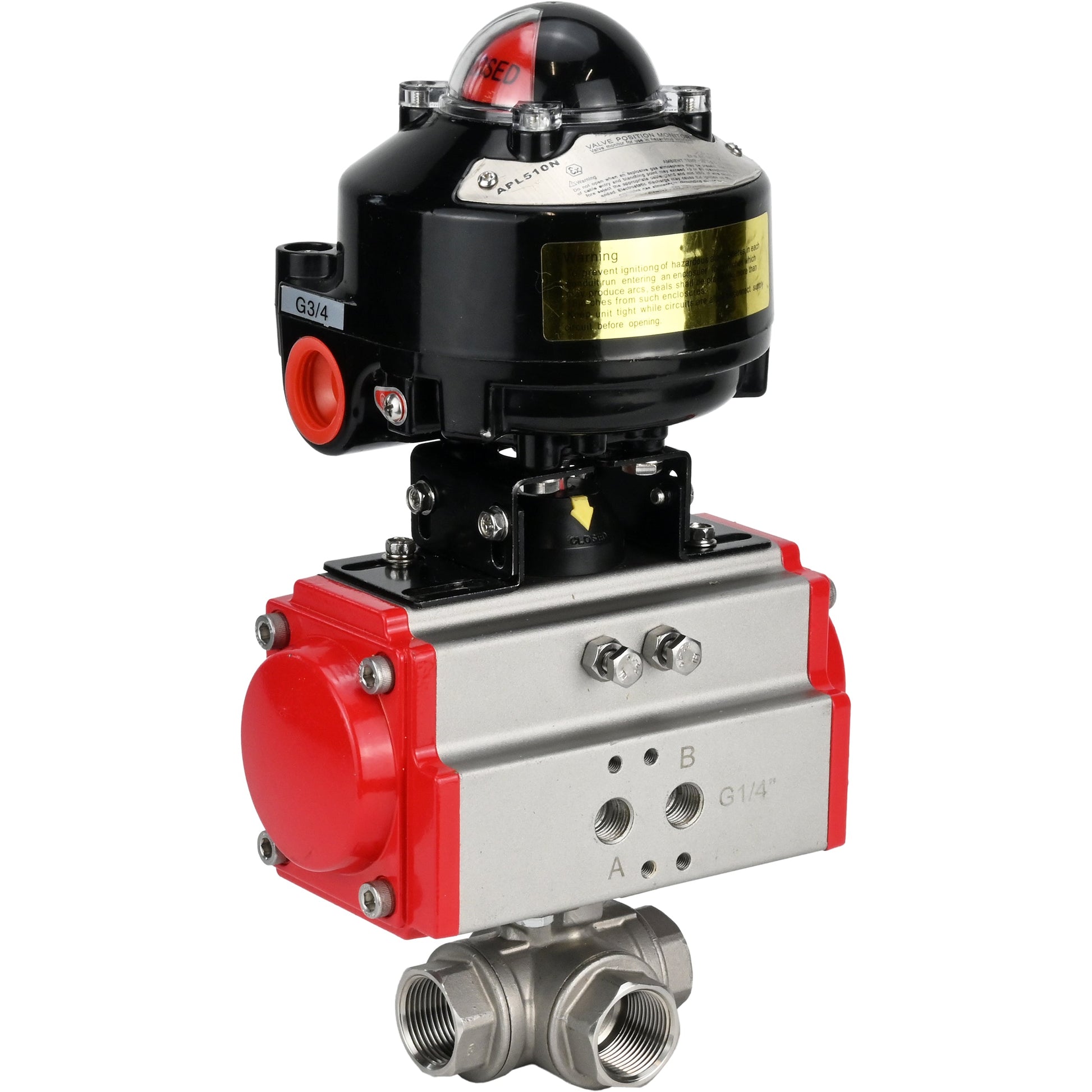

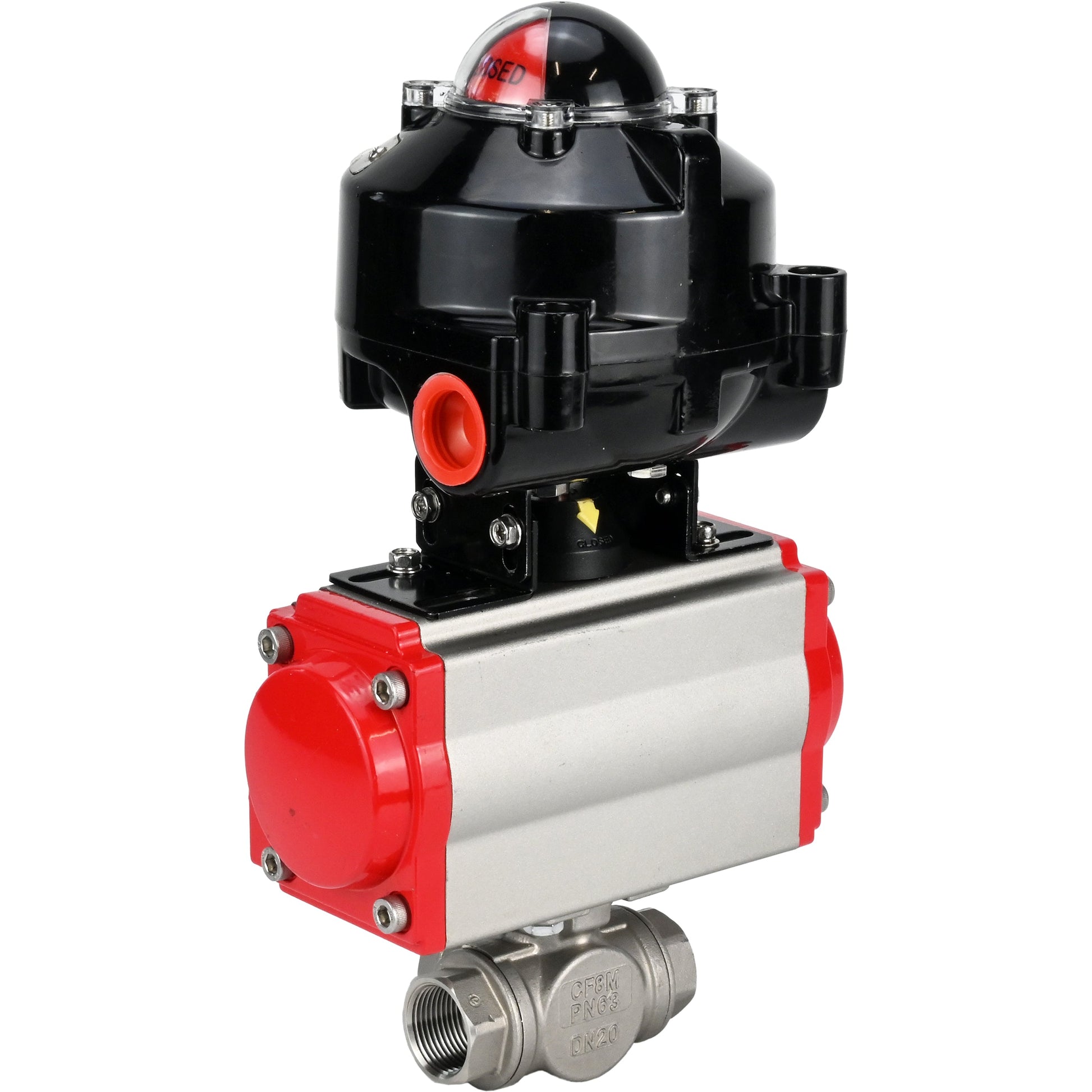

Technical parameters of ball valves DNOVA BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator DNOVA PA-SA 052 -105 and LSU APL-510N-EX:
|
Parameter |
Value |
|
Nominal diameter DN, mm |
40 – 300 |
|
Nominal pressure PN, MPa (kg/cm²) |
1.6 (16) |
|
Flow direction |
Two-way |
|
Maximum working medium temperature t, °C |
Up to +110 |
|
Working medium |
Cold and hot water, air without oil and grease, stationary conditioning, slightly aggressive media, other media neutral to the material |
|
Control type |
Bare stem (without handle) / with handle / with electric actuator / with gearbox |
Materials of ball valves DNOVA BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator DNOVA PA-SA 052 -105 and LSU APL-510N-EX:
|
№ |
Part name |
Material |
Quantity |
|
1 |
Cover |
SS316 |
3 |
|
2 |
Seat rings |
PPL |
4 |
|
3 |
Connection gasket |
PTFE/RPTFE |
3 |
|
4 |
Thrust washer |
PTFE/RPTFE |
1 |
|
5 |
Seal |
PTFE |
1 |
|
6 |
Stem |
SS304 / SS316 |
1 |
|
7 |
Gland |
SS304 |
1 |
|
8 |
Ball |
S304 / S316 |
1 |
|
9 |
Body |
SS316 |
1 |
Overall and installation dimensions of ball valves DNOVA BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator DNOVA PA-SA 052 -105 and LSU APL-510N-EX:
| DN | D | L | L1 | H |
| 10 | 10 | 71 | 153 | 98 |
| 15 | 12 | 71 | 153 | 98 |
| 20 | 15 | 82 | 153 | 98 |
| 25 | 18 | 98 | 153 | 98 |
| 32 | 25 | 118 | 174 | 115 |
| 40 | 32 | 122 | 216 | 135 |
| 50 | 38 | 150 | 216 | 135 |
| 65 | 50 | 178 | 279 | 160 |
| 80 | 64 | 202 | 279 | 160 |
| 100 | 78 | 231 | 279 | 160 |
Technical data of pneumatic actuators PA-SA:
| Design | With return springs | |
| Nominal pressure PN, bar | 12 | |
| Operating pressure, bar | 2…8 | |
| Operating medium | Filtered compressed air or non-aggressive gases, oils | |
| Maximum particle diameter | less than 30 µm2 | |
| Operating temperature t, °C | • from -20 to +80 • from -40 to +80 (low-temperature version) • from -20 to +160 (in dry air) |
|
| Adjustment range | ± 5° for rotation at 0° and 90° | |
| Manual duplication | yes | |
| Position indicator | open/closed | |
| Operating environment | indoors and outdoors. (All internal and external parts have an anti-corrosion coating) | |
Pneumatic actuator component materials PA-SA:
| № | Name | Material |
| 1 | Body | extruded aluminum |
| 2 | Side caps | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator body | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Bushing | aluminum |
Characteristics of limit switch unit APL-510N-EX:
| Parameter | Value |
| Body | weatherproof IP67/ NEMA4 4X,7,9 explosion-proof E EX d IIC T6 |
| Compatible devices | - quarter-turn pneumatic actuators; - any actuators with a 90° shaft rotation |
| Full swivel angle | 90° |
| Cable glands | 2 x NPT 3/4” |
| Electrical connection | Screw terminal clamps, 8 points (0.08 – 2.5 mm²) |
| Cable entry thread | 2 x NPT 3/4” |
| Type of visual indicator | two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Nominal current, A | 16 |
| Permissible ambient temperature, °C | from -20 to +66 |
| Average life, cycles | 10 000 000 |
| Weight, kg | 1.8 |
Passports and certificates
Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs
- Port opening
- standard bore
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 200 °C
- Connection type
- Threaded
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
- Type of seal
- PTFE
- Explosion-proof
- have
- Torque
- 2 Nm
- Limit switches
- have
- Type of pneumatic actuator
- spring loaded
- Country of origin
- China
