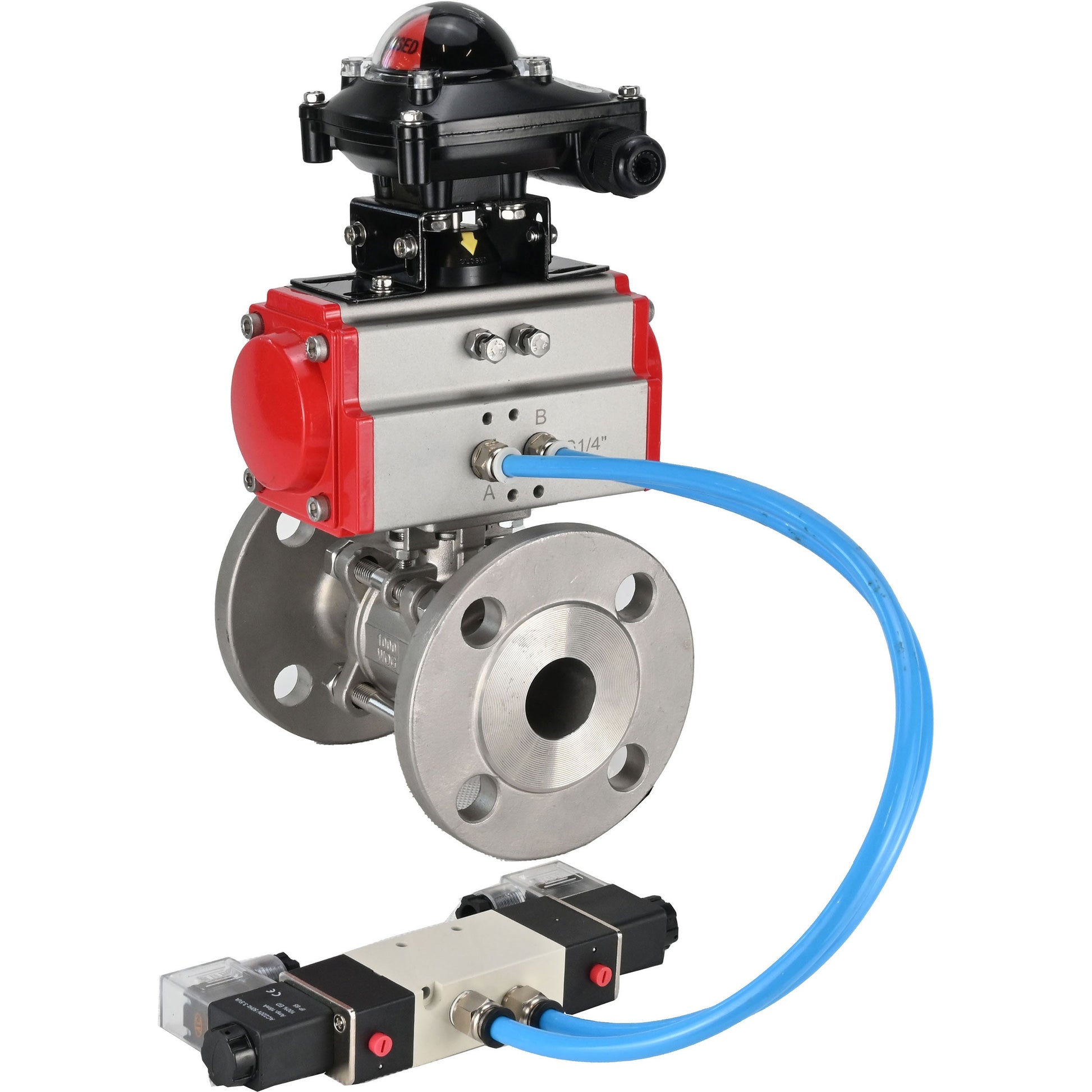

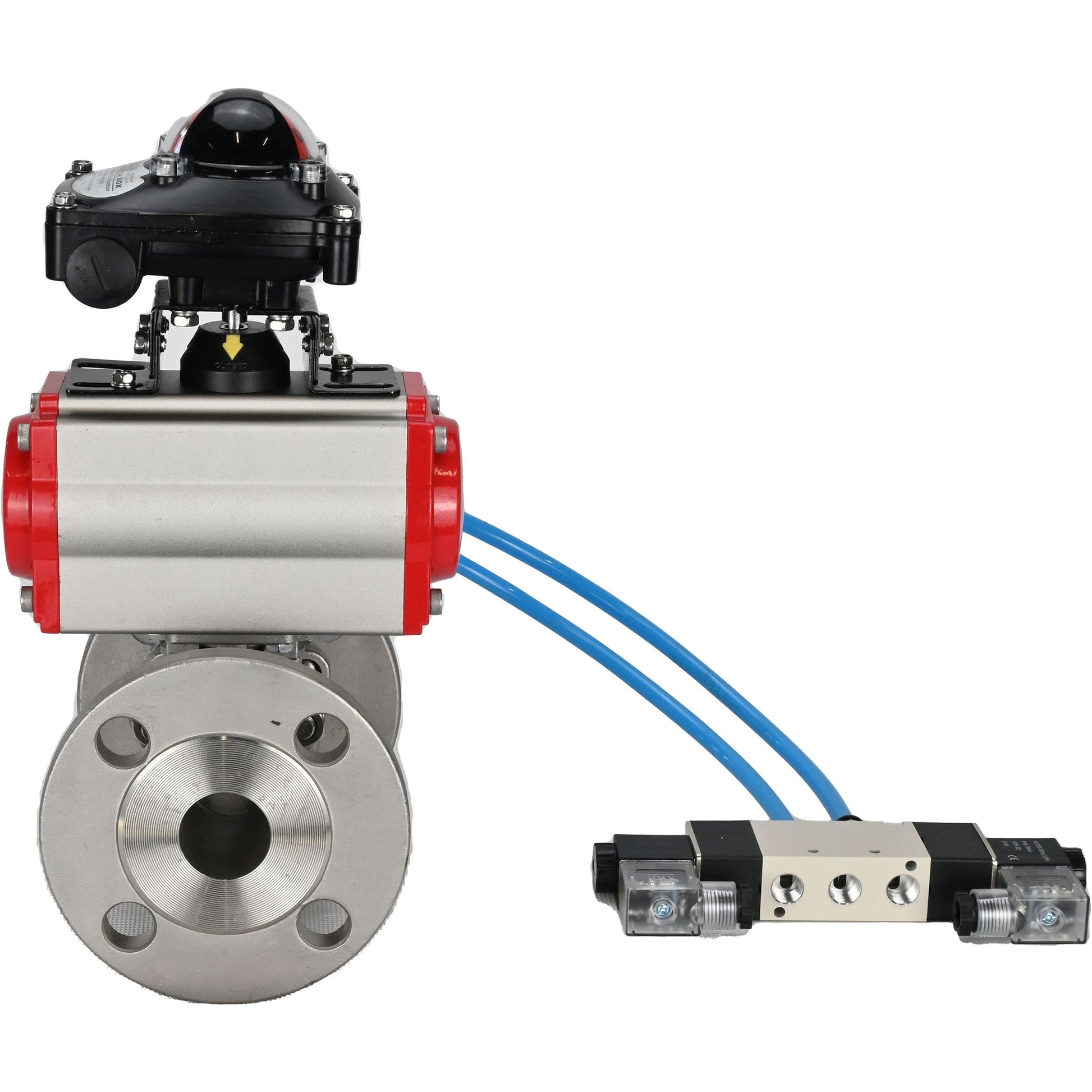

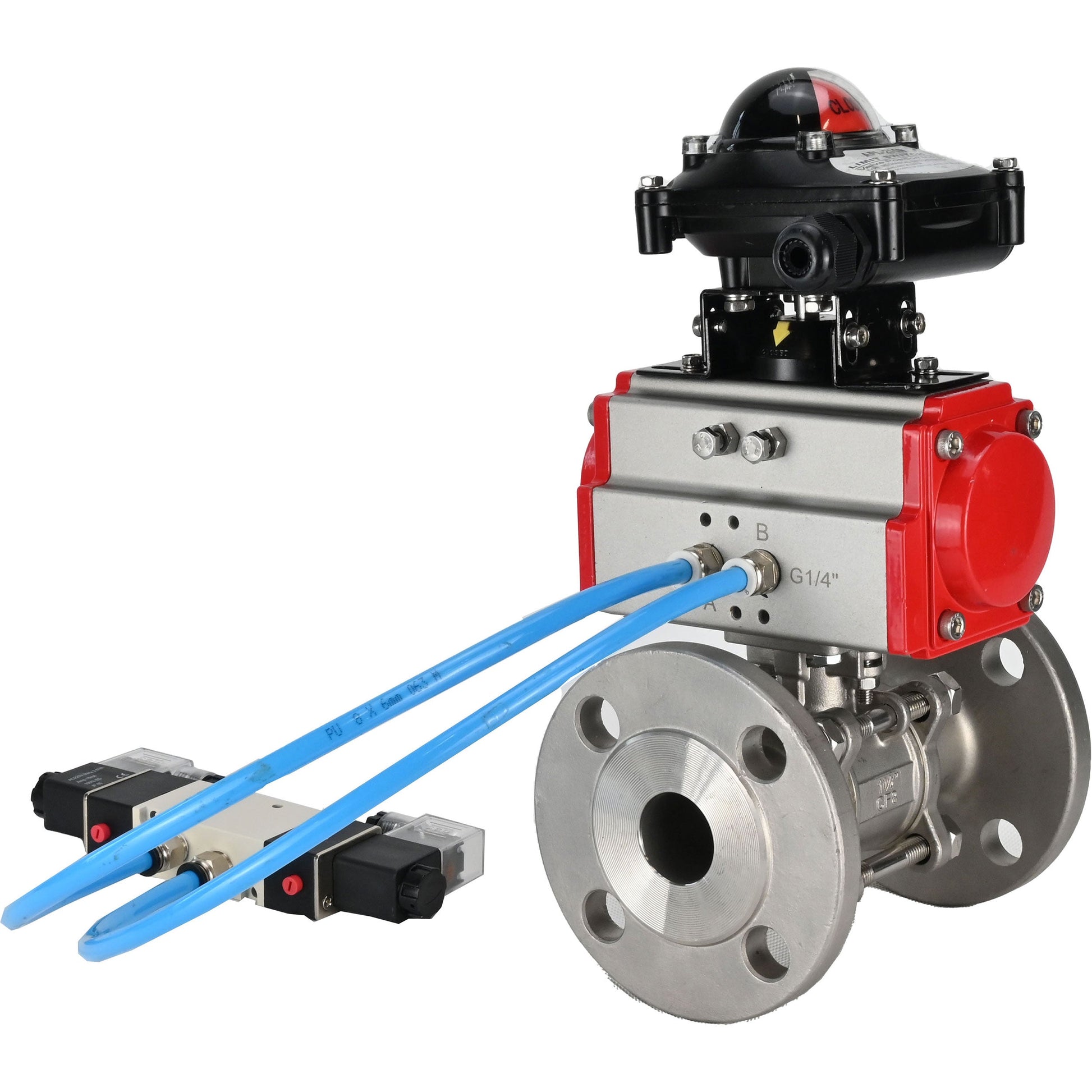

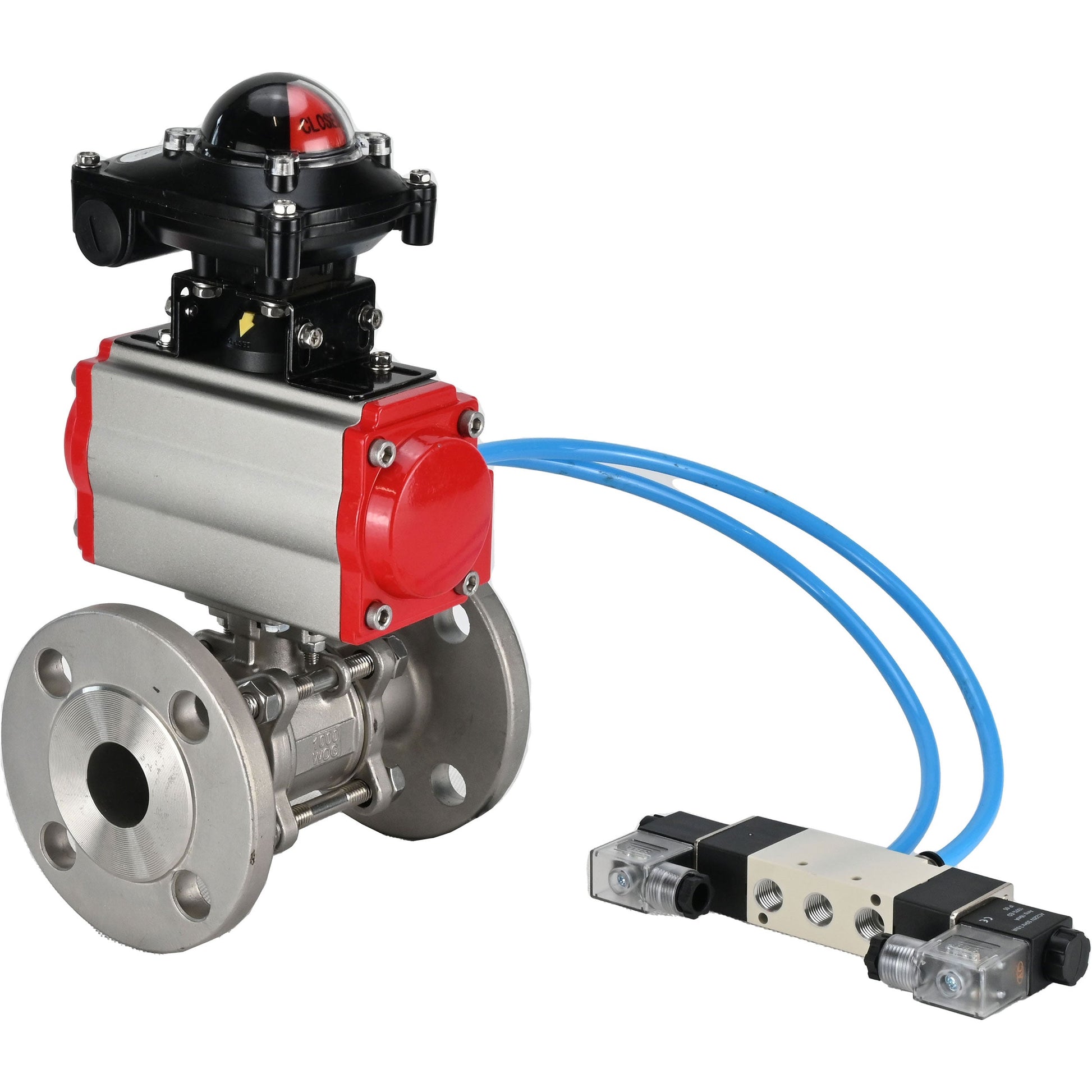

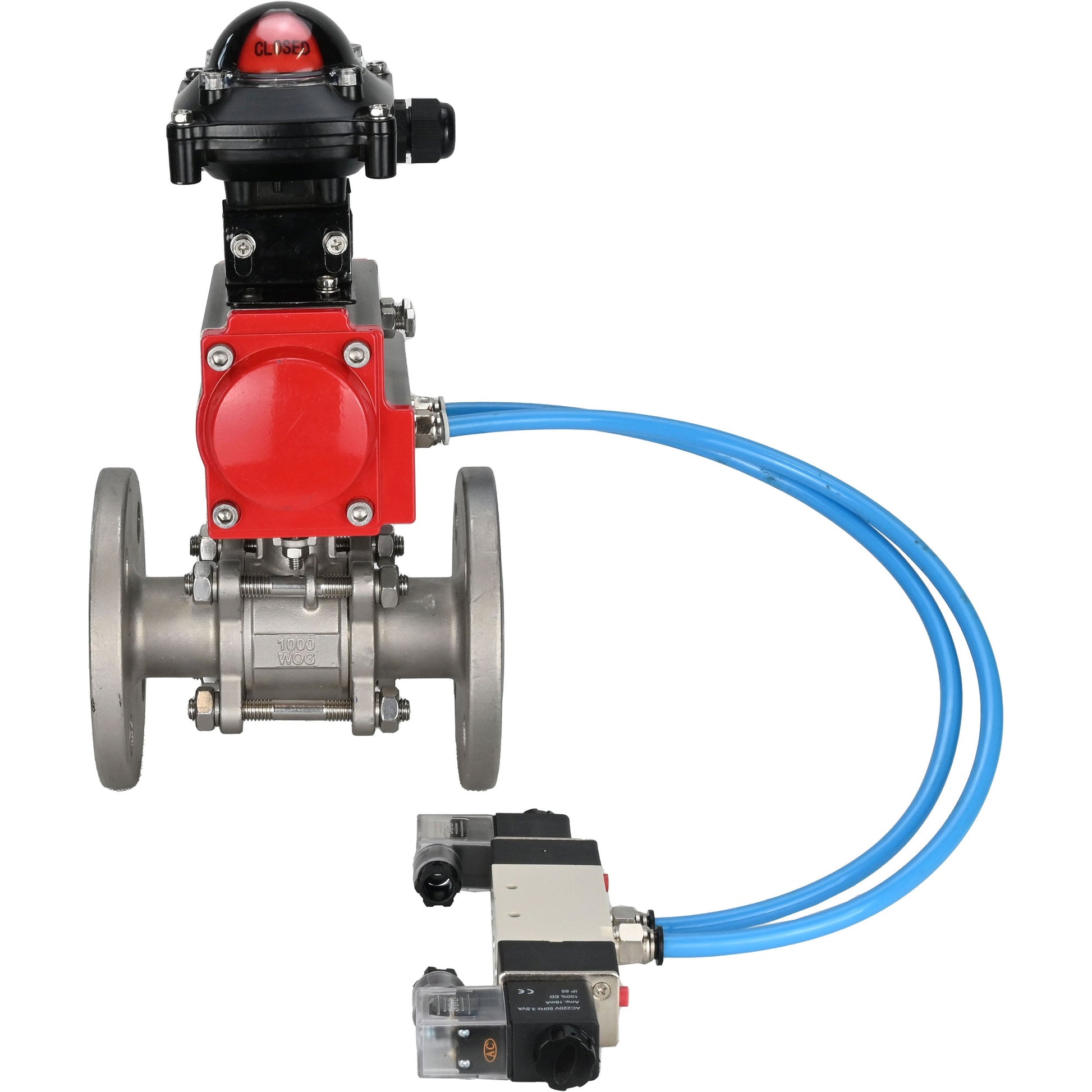

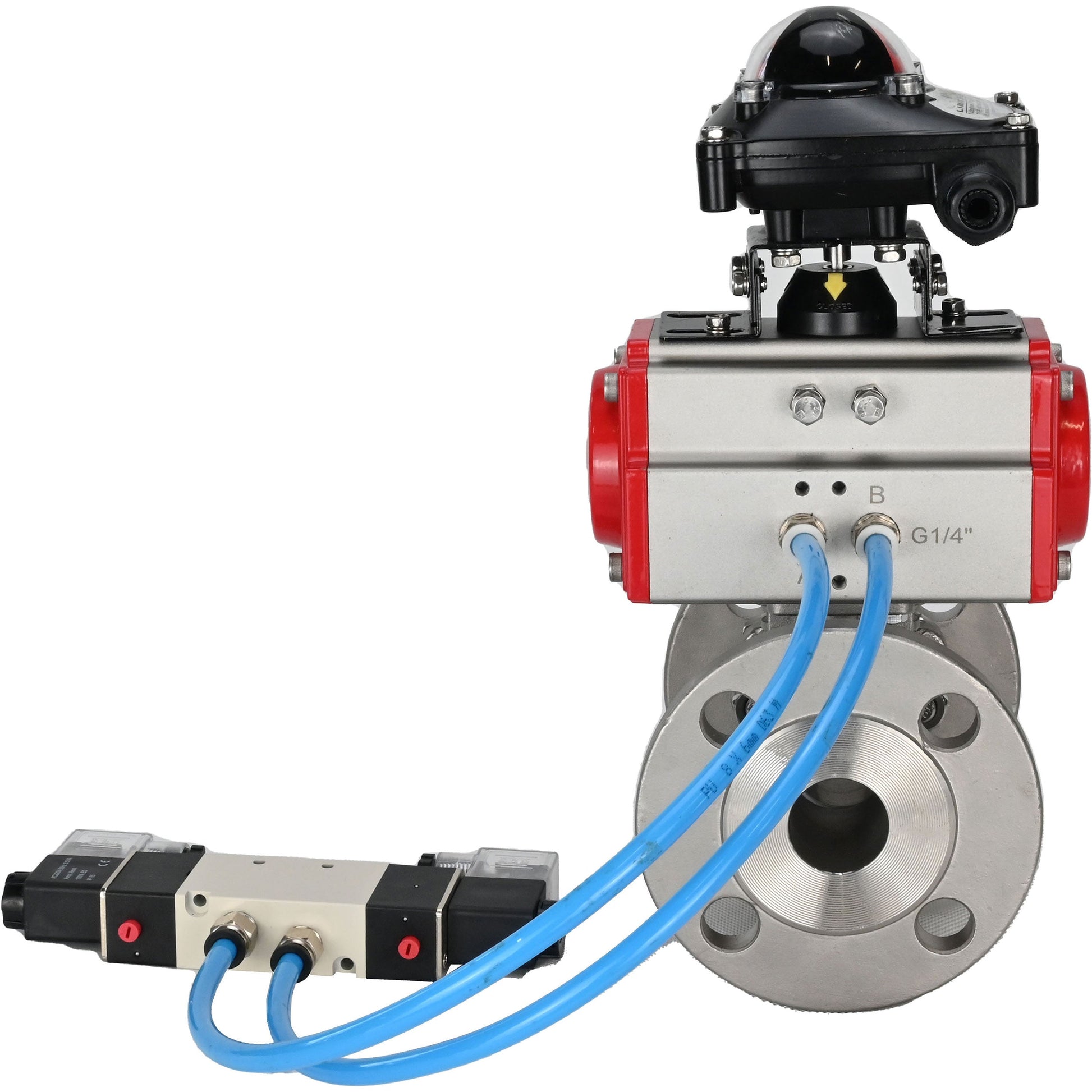

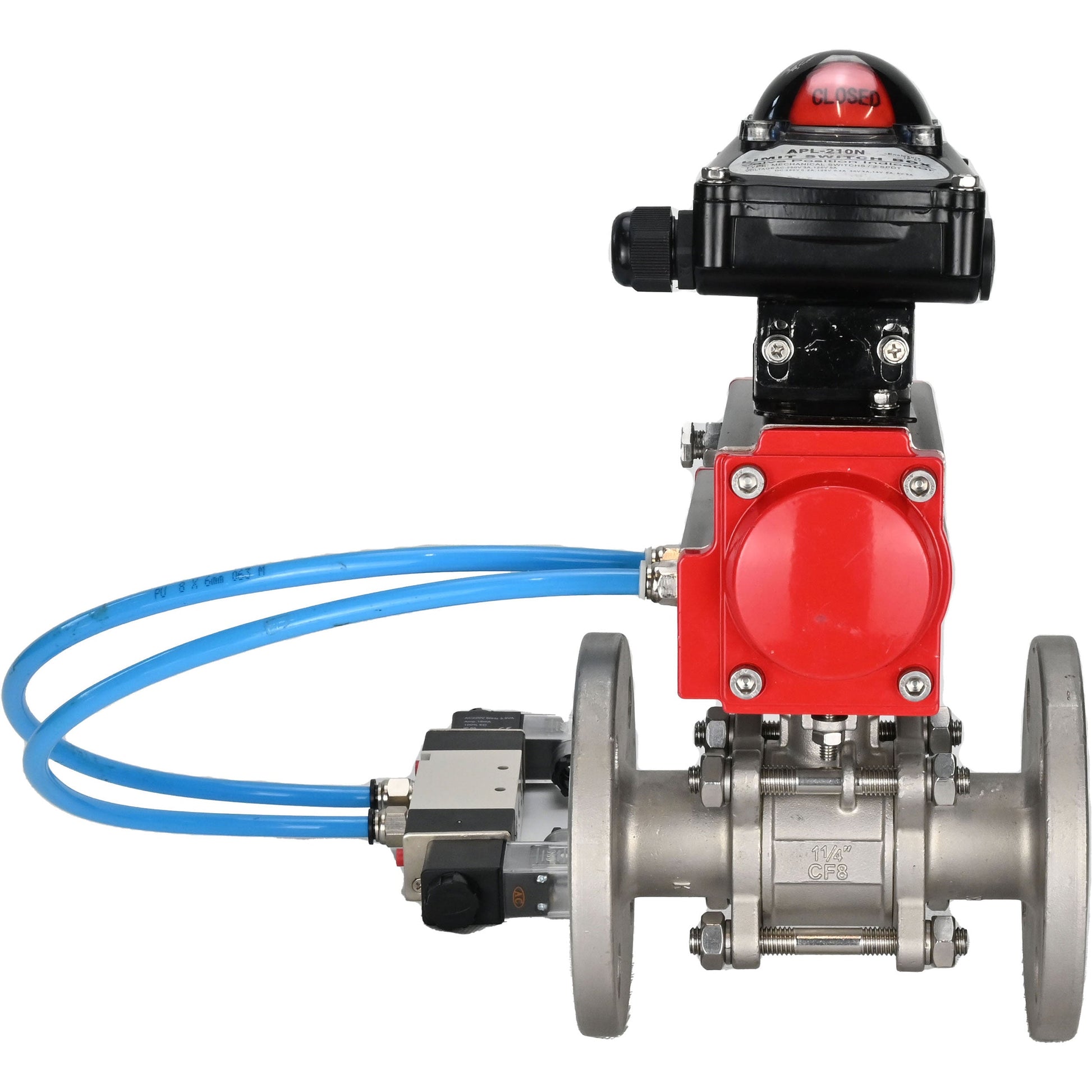

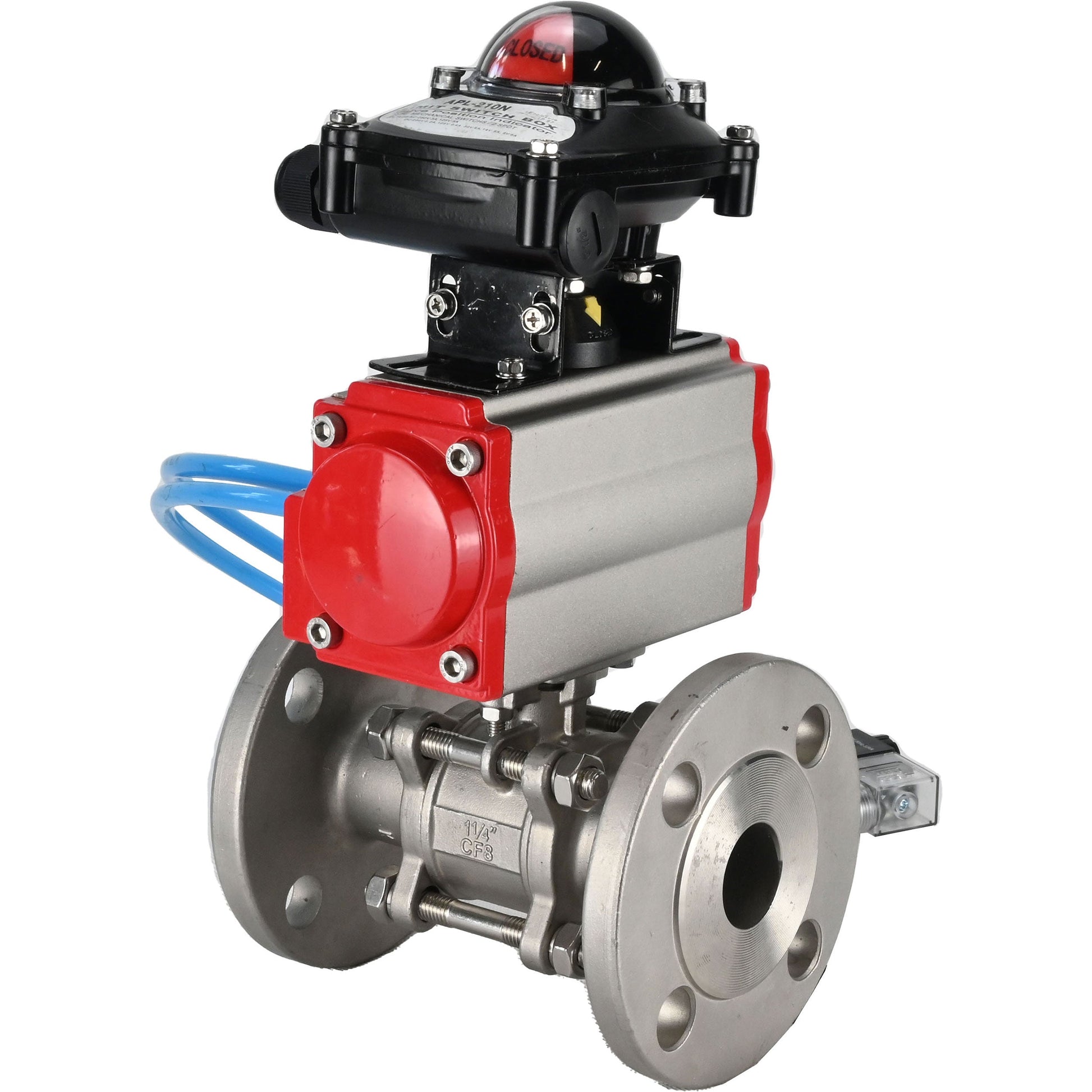

Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-08 220V, with LSU APL-210N

From $314.27 USD
From $314.27 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control with maximum torque up to 2128 Nm.

Technical parameters Ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Parameter Value
Operating Medium Temperature, °C -20 to 180
Application Water supply, heating, pneumatic systems
Working Medium Water, steam, petroleum products, liquid media, neutral media, gaseous media
Pipeline Connection Flanged
Water-drawing No
Passage Type Full bore
Ball Valve Tightness Class A
Control Type With pneumatic actuator
Connection Flanged
Actuation Pneumatic actuator with return springs
Presence of Limit Switches Yes
Presence of Pneumatic Distributor Yes
Warranty, years 1
Country of Manufacture China

Dimensions and dimensions Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

DN Ød, mm L, mm ØD, mm L1, mm H, mm
15 15 130 95 168 108
20 20 150 105 168 108
25 25 160 115 204 128.7
32 32 180 140 204 128.7
40 40 200 150 268 153
50 50 230 165 268 153
65 65 290 185 301 185
80 80 310 200 390 202
100 100 350 234 458 227
100 22x22, F10 100 350 220 390 202

Краны шаровые DN.ru BV3131P(3pc)-FP-F-ISO-H Ду15-100 Ру16-40, трехсоставные полнопроходные фланцевые, нержавеющая сталь SS304, уплотнение - PTFE, с пневмоприводом PA-SA с возвратными пружинами, с пневмораспределителем 4V320-08 220В, с БКВ APL-210N

Sketch Ball Valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Parts and materials table Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

№ Part Name Material Quantity
1 Body Stainless steel SS304 / SS316 1
2 Ball Valve Stainless steel S304 / S316 1
3 Bolt Stainless steel S201 / S304 4~6
4 Nut Stainless steel S201 / S304 6~12
5 Seal PTFE 1
6 Stem Stainless steel SS304 / SS316 1
7 Gland Stainless steel S201 / S304 1
8 Cover Steel WCB/CF8/CF8M 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1

Sketch Ball Valves DNOVA BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Technical parameters of pneumatic actuator DNOVA

Parameter Value
Design With return springs
Operating Pressure, bar 6
Working Medium Filtered compressed air or non-aggressive gases, oils
Manual Override No

Dimensions and dimensions of pneumatic actuator DNOVA

Here's the table based on the provided data:

Model SA-065 SA-083 SA-105 SA-130 SA-140 SA-160
G, mm 15 15 25 25 30 30
M, mm 80 80 80 80 130 130
N, mm 30 30 30 30 30 30
F0, mm 34 34 41 62 62 62
P, mm 20 20 20 30 30 30
B1, mm 174 216 279 308 405 465
C, mm 36 46 55 67.5 76 87.5
E, mm 89 109 134 157 174 199
J 4-M6x10 4-M6x10 4-M8x12 4-M8x12 4-M10x16 4-M10x16
K 4-M8x12 4-M8x12 4-M10x16 4-M10x16 4-M12x20 4-M12x20
F, mm 26 26 26 36 36 38
A1, mm 125 152 189 210 268 310
D, mm 46 55 64 70 77 87.5
H F05 F05 F07 F10 F10 F10
I F07 F07 F10 F12 F12 F12
L 14x14 17x17 22x22 22x22 27x27 27x27

Sketch of dimensions and dimensions of pneumatic actuator DNOVA

Parts and materials table for pneumatic actuator DNOVA

№ Part Name Quantity Material Coating
1 Housing 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidized / Galvanized
5 Plugs 8 Stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 Engineering plastic
12 Ring 1 Engineering plastic
13 Washer 1 Stainless steel
14 Spring clamp 2 Stainless steel
15 Indicator 1 Plastic
16 Indicator housing 1 Plastic
17 Bearing 1 Engineering plastic
18 Cam 1 Steel Oxidized / Galvanized
19 Bearing 1 NBR
20 Bearing 1 Engineering plastic
21 Bearing 1 Engineering plastic
22 O-ring 2 NBR
23 O-ring 2 NBR
24 Bearing 2 Stainless steel
25 Adjustment nut 2 Stainless steel
26 Adjustment screw 2 Stainless steel
27 Bushing 2 Aluminum
Sketch of parts and materials of pneumatic actuator DNOVA




Technical parameters of pneumatic valve DNOVA 4V320-08 220V

Name Value
Type of pneumatic distributor Spool type
Model of pneumatic distributor 4V320-08 220V
Operating pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Switching frequency, cycle/sec 5

Technical parameters of limit switch unit DNOVA APL-210N

Name Value
Model of limit switch module APL-210N
Service life, years 10

Parts and materials table for DNOVA APL-210N EX limit switch unit

Model H L B D D1 M
APL-210N 77 112 88 10 5 20x1.5

Sketch of dimensions and dimensions of limit switch unit DNOVA

Specifications

Country of origin
China
Port opening
full bore
Body material
Stainless steel AISI 304
Maximum allowable temperature
180 °C
Connection type
Flanged
Control type
Pneumatically actuated
Operating environment
Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
no
Torque
235 Nm
Limit switches
have
Type of pneumatic actuator
spring loaded
