How it works

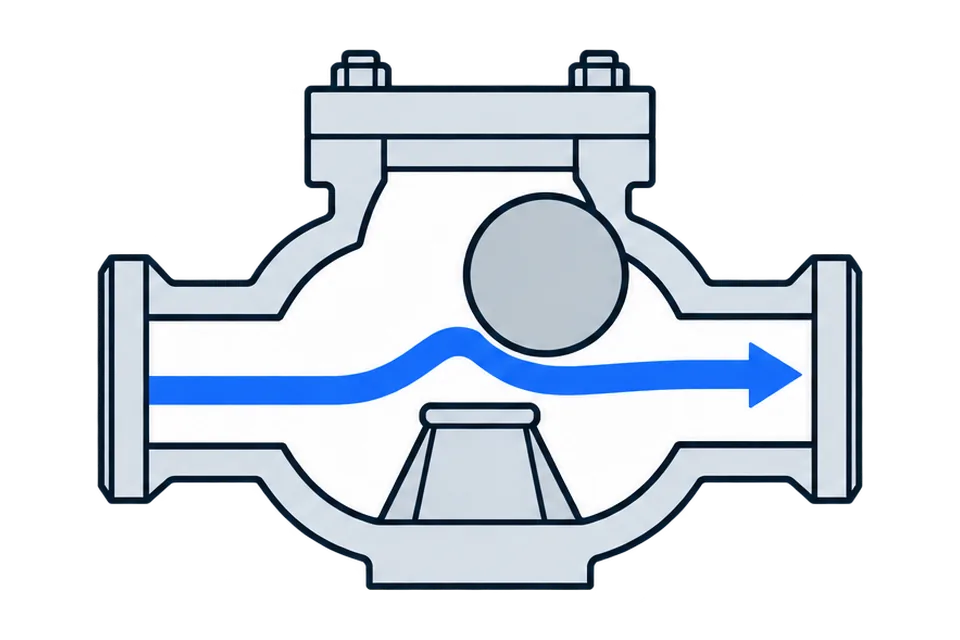

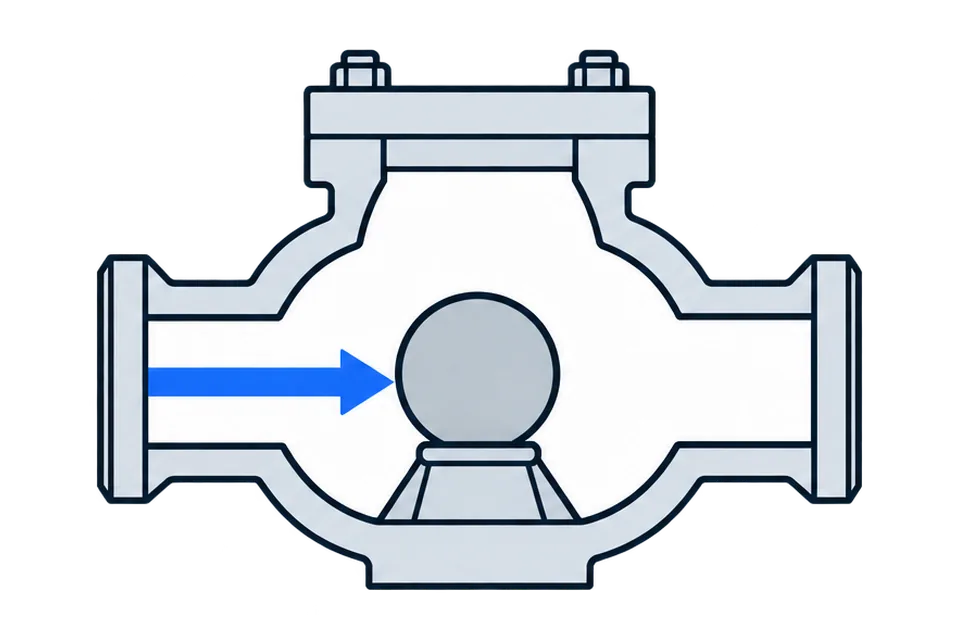

Ball check valve
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
Check valve is a device in a pipeline that allows fluids or gases to flow in only one direction. When the pressure of the fluid or gas in the pipeline exceeds a certain value, the valve opens, allowing the substance to pass through. However, when the pressure drops or tries to move in the opposite direction, the valve closes, preventing backflow. Check valves are widely used in various industrial and commercial applications to ensure safety and control the flow in pipeline systems.
Parameters of check valves DNOVA VCB1414N-F PN16 without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
| Nominal diameter DN, mm | 40 – 300 |
| Nominal pressure PN, bar | 16 |
| Ambient temperature t, °C | -10 to +80 |
| Minimum valve opening pressure | 0.5 bar |
| Working fluid | hot and cold water |
| Pipeline connection | flanged |
| Body material | cast iron GGG50 |
| Ball material | cast iron GGG50 + NBR |
| Flow direction | one-way |
| Valve type | reverse |
Overall dimensions of the ball check valve DNOVA VCB1414N-F PN16 without drain plug, body material - cast iron GGG50
| DN | L | D | C | D1 | n - d | b | f | Weight,kg |
| 40 | 180 | 150 | 110 | 84 | 4 – Ø19 | 18 | 3 | 6 |
| 50 | 200 | 165 | 125 | 99 | 4 – Ø19 | 19 | 3 | 9 |
| 65 | 240 | 185 | 145 | 118 | 8 – Ø19 | 19 | 3 | 12 |
| 80 | 260 | 200 | 160 | 132 | 8 – Ø19 | 19 | 3 | 15.5 |
| 100 | 300 | 220 | 180 | 156 | 8 – Ø19 | 19 | 3 | 23.5 |
| 125 | 350 | 250 | 210 | 184 | 8 – Ø19 | 19 | 3 | 29.5 |
| 150 | 400 | 285 | 240 | 211 | 8 – Ø23 | 19 | 3 | 45.5 |
| 200 | 500 | 340 | 295 | 266 | 12 – Ø23 | 20 | 3 | 72.5 |
| 250 | 600 | 405 | 355 | 319 | 12 – Ø28 | 22 | 3 | 120 |
| 300 | 700 | 455 | 410 | 370 | 12 – Ø28 | 24.5 | 4 | 195 |
Sketch of ball check valve dimensions DNOVA VCB1414N-F PN16 without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
Materials of ball check valves DNOVA VCB1414N-F PN16 without drain plug, body material - cast iron GGG50
| № | Part name | Material |
| 1 | Body | Cast iron GGG50 |
| 2 | Char | Cast iron GGG50 + NBR |
| 3 | Sealing | NBR |
| 4 | Cover | Cast iron GGG50 |
| 5 | Bolt | SS304 steel |
| 6 | Washer | SS304 steel |
Detailed sketch of ball check valves DNOVA VCB1414N-F PN16 without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
- Body material
- Cast iron GGG50/EN-GJS-500-7
- Maximum allowable temperature
- 80 °C
- Connection type
- Flanged
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Locking material
- Cast iron GGG50/EN-GJS-500-7
- Check valve type
- Ball
- Country of origin
- China
