Description

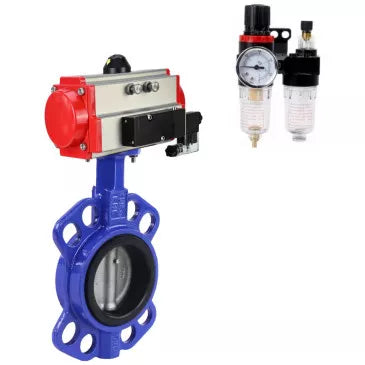

Butterfly valves DNOVA WBV3432P-2W-Fb-H are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
The AFC2000 air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Technical parameters of Butterfly valves DNOVA WBV3432P-2W-Fb-H, body - carbon steel WCB, disk - stainless steel 316L, seal - VITON
| Name | Value |
|---|---|
| Nominal pressure PN, bar | 16 |
| Operating medium temperature, °C | from -29 to 180 |
| Pipeline connection | Flanged |
| Type of valve | Rotating disc valve |
| Control type | Pneumatic actuator |
| Country of manufacture | China |
Table of parts and materials for butterfly valves DNOVA WBV3432P-2W-Fb-H Du40-125 Ru16, body - carbon steel WCB
| № | Name | Material |
| 1 | Body | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | VITON |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Stem | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | Carbon steel |
Sketch of parts and materials of rotary disc gate valves DNOVA WBV3432P-2W-Fb-H Du40-125 Ru16, body - carbon steel WCB
Technical parameters of pneumatic valve DNOVA 4V320-08 220V
| Name | Value |
|---|---|
| Type of pneumatic distributor | Spool-type |
| Model of pneumatic distributor | 4V320-08 220V |
| Operating pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220V |
| Actuation frequency, cycles/sec | 5 |
Main parameters of air treatment unit DNOVA AFC2000
| Parameter | Value |
|---|---|
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Burst pressure, bar | 15 |
| Air connection | 1/4" |
| Operating temperature, °C | -5 to +60 |
| Filtered particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0.395 |
| Set contents | Filter-water separator, pressure regulator, lubricator, bracket |
Sketch of ATU DNOVA AFC2000
