Description
The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. The flow is stopped when the diameter of the nominal bore of the pipeline is completely blocked, and adjusted when it is partially blocked.

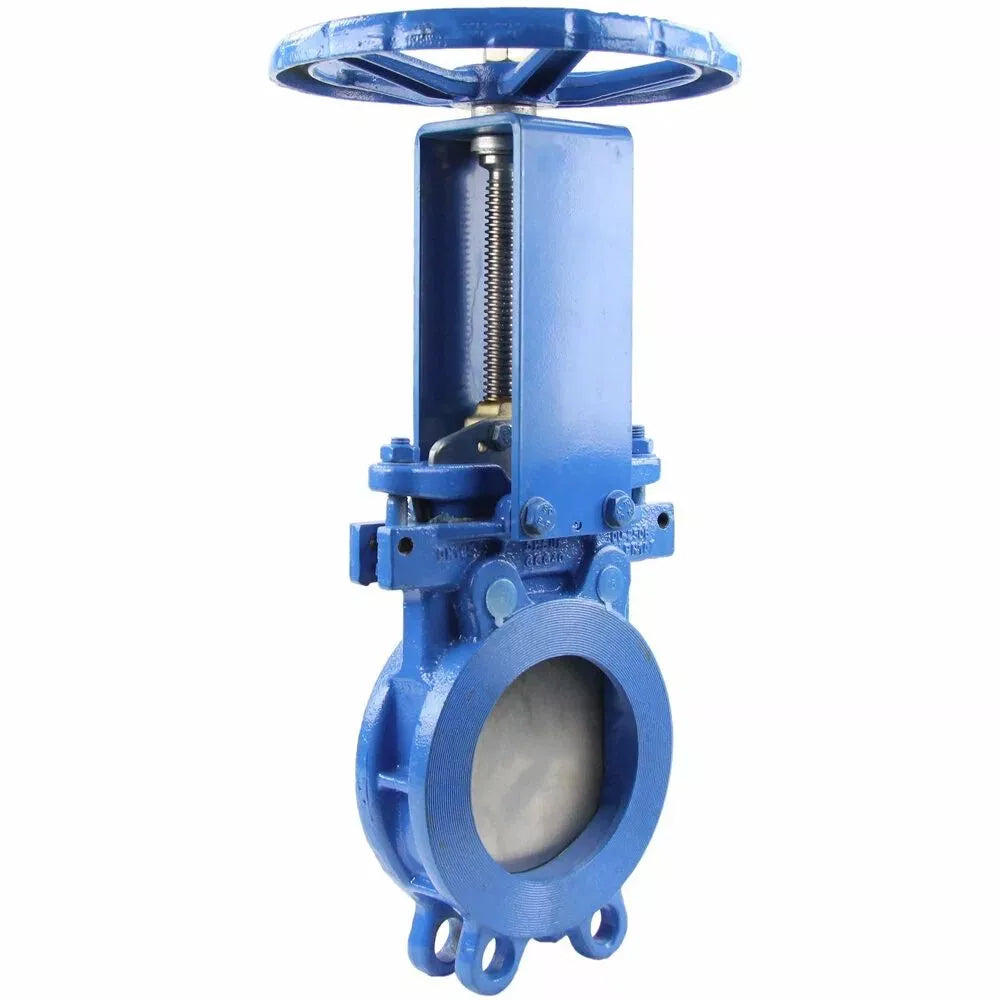

Overall and installation dimensions DNOVA GVKR1331M-1W-Fb-S knife gate gate valves, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - metal, handwheel:
| DN | L, mm | D, mm | D1, mm | D2, mm | D0, mm | H1, mm | T, mm | d, mm | ● | O | N-Th, mm |
| 150 | 57 | 285 | 240 | 211 | 280 | 450 | 14 | 23 | 4 | 4 | 8-M20 |
| 200 | 70 | 340 | 295 | 266 | 300 | 532 | 16 | 23 | 6 | 6 | 12-M20 |
Materials DNOVA GVKR1331M-1W-Fb-S knife gate gate valves, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - metal, handwheel:
| № | Part name | Material |
| 1 | Body | cast iron GGG40 |
| 2 | Schieber | SS304 stainless steel |
| 3 | Guide seal | PTFE |
| 4 | Packing | PTFE |
| 5 | Gland | WCB steel |
| 6 | Rack | Q235 steel |
| 7 | Pin | steel 45 |
| 8 | Patron | WCB steel |
| 9 | Rod | 2Cr13 steel |
| 10 | Upper rack assembly | GGG40 cast iron |
| 11 | Bearing | GCr15 steel |
| 12 | Nut | brass |
| 13 | Cover | Q235 steel |
| 14 | Handwheel | cast iron GGG40 |
| 15 | Wedge | GGG40 cast iron |
