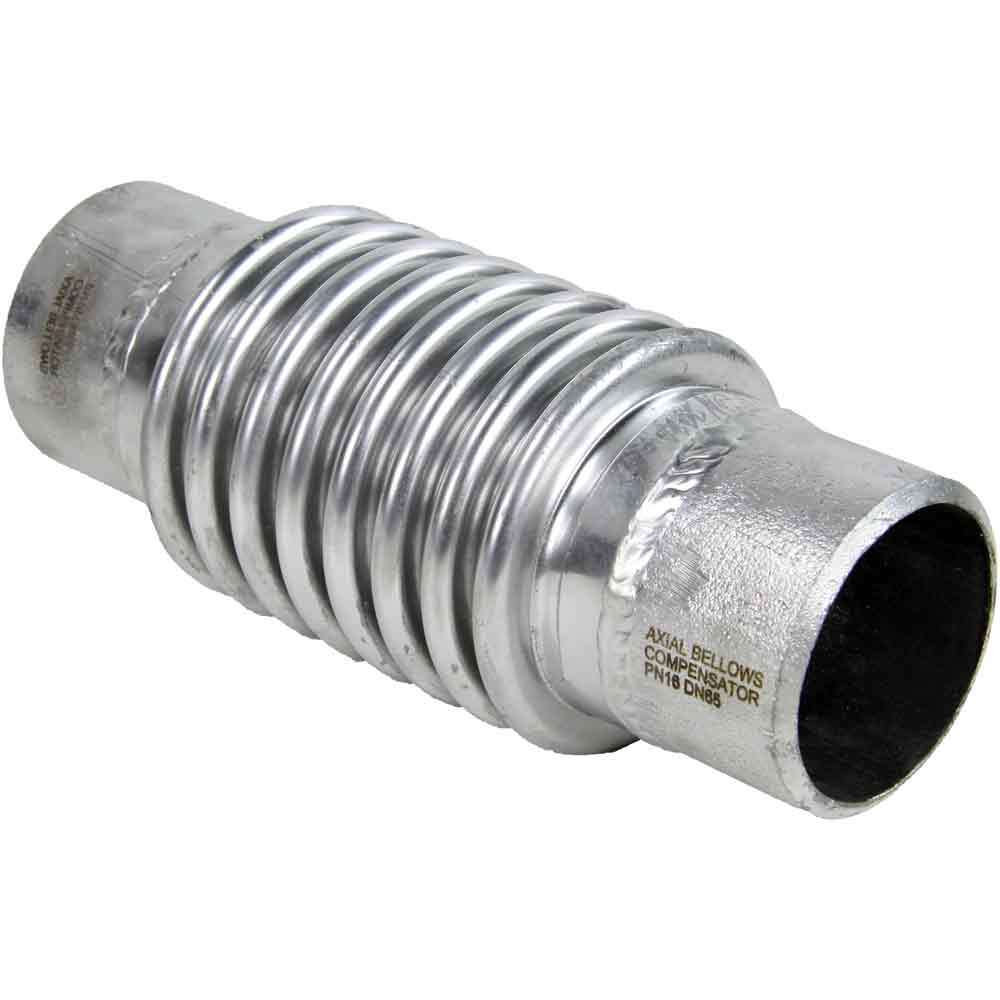

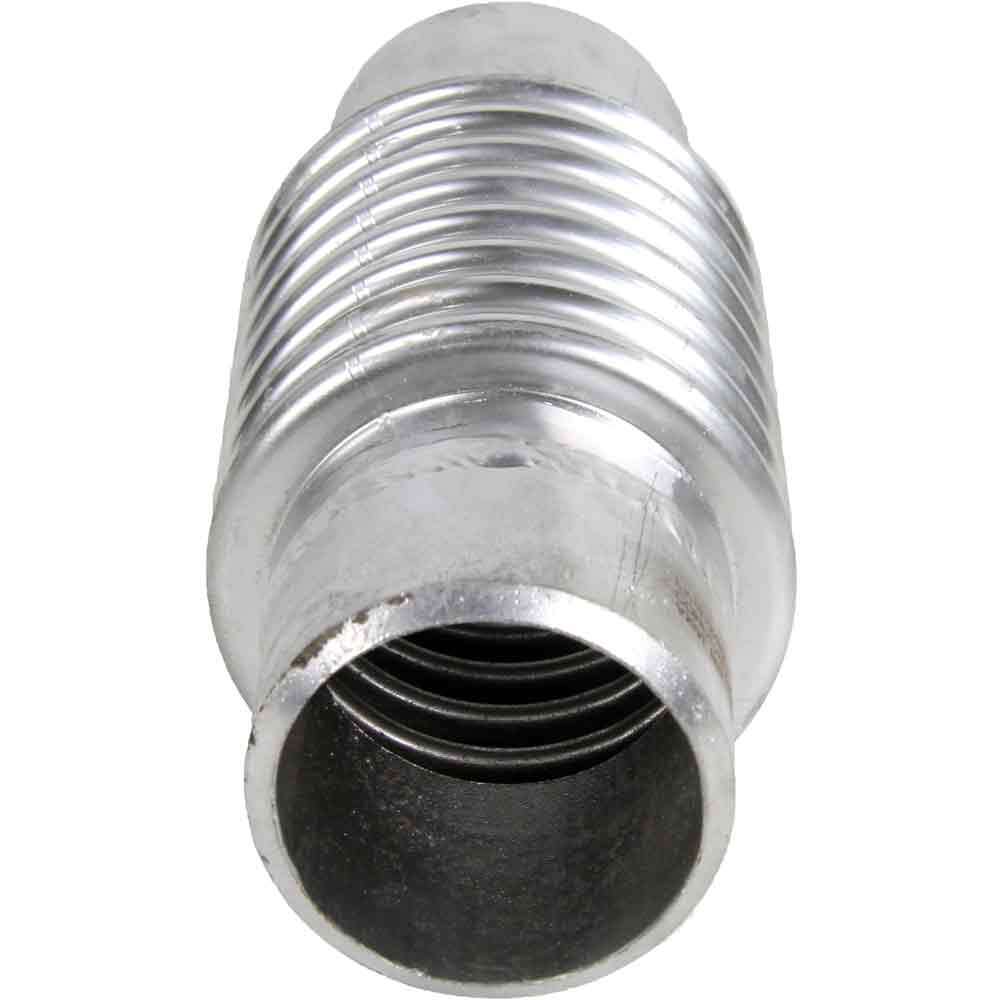

Bellows expansion joint DNOVA CB-3131-W PN16 60mm, body material - stainless steel AISI 304
Couldn't load pickup availability




Collapsible content
Description
Bellows expansion joints, also known as bellows expansion joints, are devices consisting of a flexible metal bellows capable of absorbing thermal expansion, compression, or angular deflection in pipelines and systems. They are used to compensate for axial, lateral, and angular movements, providing stability to the system amidst temperature and pressure fluctuations. Bellows expansion joints are typically made from specialized materials, often stainless steel, and find wide applications in various industries where compensating for thermal expansions and contractions is essential, preventing damage to pipelines and equipment.
Basic technical data and characteristics of bellows axial compensators DNOVA CB-3131-W
Nominal diameter DN, mm | 50 - 300 |
Working pressure PN, bar | 16 |
Operating medium temperature t, ⁰C | ≤550 |
Operating medium |
steam, oils, hot water, chemically aggressive media, within performance limits |
Bellows material | stainless steel 304 |
Nozzle material | stainless steel 304 |
Axial travel, mm | 60 / 80 |
Pipeline connection | welding/welding |
Areas of application |
heating and water supply systems; compressed air pipelines; steam plants; industrial pipelines. |
Overall dimensions of bellows axial expansion joints DNOVA CB-3131-W PN16 60mm, body material - stainless steel AISI 304
DN | Permissible tensile strength, mm | Permissible compression,mm |
OAL, mm |
D, mm |
A, mm |
Axial stiffness, N/mm | Weight, kg |
50 | 30 | 30 | 240 | 57 | 4 | 150 | 0,6 |
65 | 30 | 30 | 240 | 76 | 4 | 184 | 1,5 |
80 | 30 | 30 | 250 | 88,9 | 4 | 203 | 2,1 |
100 | 30 | 30 | 270 | 108 | 4 | 226 | 2,5 |
125 | 30 | 30 | 250 | 133 | 4 | 239 | 2,6 |
150 | 30 | 30 | 270 | 159 | 5 | 211 | 3,8 |
200 | 40 | 40 | 300 | 219 | 6 | 284 | 9,2 |
250 | 40 | 40 | 315 | 273 | 6 | 339 | 12,6 |
300 | 40 | 40 | 320 | 325 | 8 | 313 | 13,8 |
Sketch of overall dimensions of bellows axial expansion joints DNOVA CB-3131-W PN16 60mm, body material - stainless steel AISI 304
