Description
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Electric quarter-turn controlled actuators DNOVA series QT are designed for remote and local control of rotation of a shut-off element by 0° ~ 270° of such types as a ball valve, etc. Application: widely used in various sectors of the national economy: in the gas, oil, metallurgy, food industry, in housing and communal services, etc.

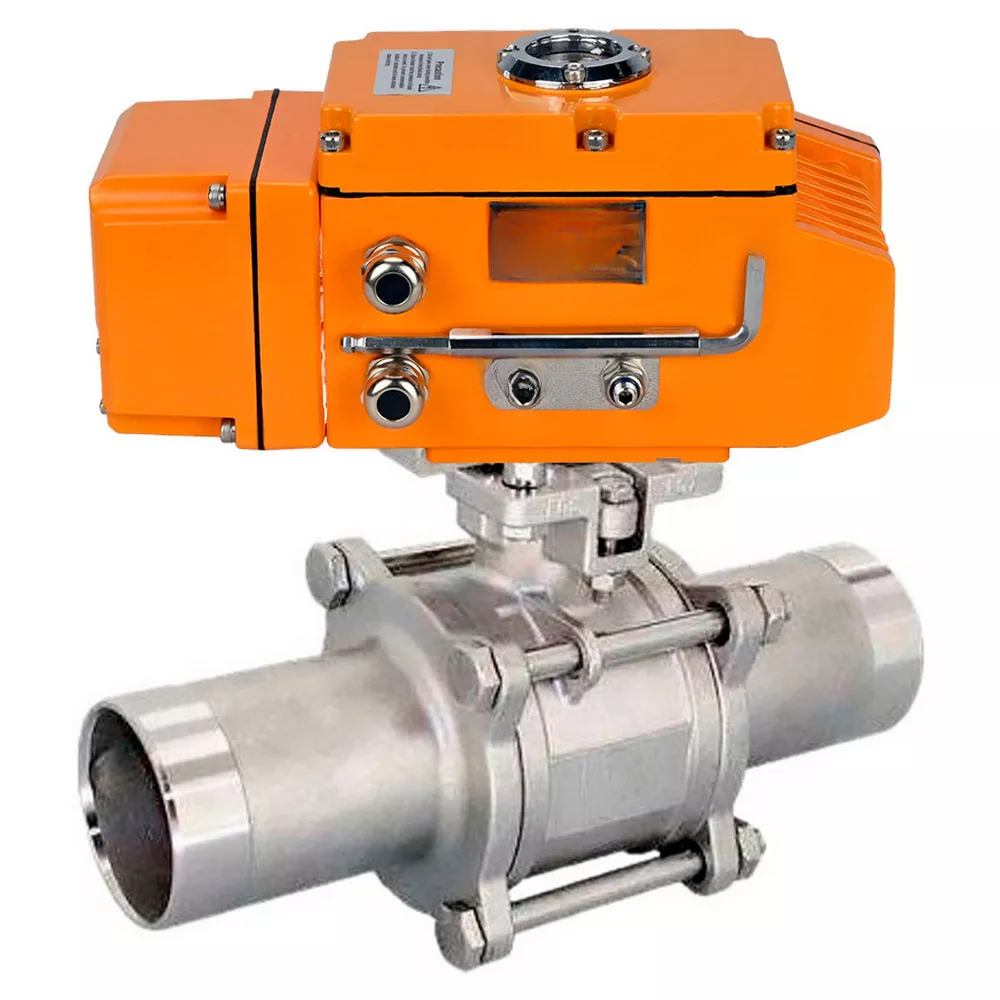

Technical characteristics of DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn electric drive DNOVA QT-N-EM-A1-220VAC-U1 with feedback sensor and input control signal 4-20 mA
| Name | Meaning |
| Connection type | for welding |
| Control type | With electric drive |
| Application | water supply, heat supply, industry |
| Crane ball passage | full bore |
| Climate performance | U1 |
| Working environment temperature, °C | from -20 to 180 |
| Joining | for welding |
| Control | Electric drive 220V |
| Sealing class | A |
| Water intake | No |
| Type of crane device | two-way |
| Working medium | water, steam, petroleum products, neutral media, gaseous media |
| Warranty, g. | 1 |
| Service life, years | 5 |
Sketch of overall dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn electric drive DNOVA QT-N-EM-A1-220VAC-U1 with feedback sensor and input control signal 4-20 mA
Dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn electric drive DNOVA QT-N-EM-A1-220VAC-U1 with feedback sensor and input control signal 4-20 mA
| Model | L, mm | X, mm | G, mm |
| DN10 | 130 | 200 | 114 |
| DN15 | 150 | 200 | 114 |
| DN20 | 155 | 200 | 114 |
| DN25 | 186 | 228 | 114 |
| DN32 | 195 | 200 | 114 |
| DN40 | 231 | 200 | 114 |
| DN50 | 243 | 228 | 114 |
| DN65 | 290 | 308 | 114 |
| DN80 | 302 | 308 | 114 |
| DN100 | 326 | 308 | 114 |
| DN125 | 360 | 308 | 114 |
| DN150 | 390 | 308 | 114 |
Sketch of parts and materials of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn electric drive DNOVA QT-N-EM-A1-220VAC-U1 with feedback sensor and input control signal 4-20 mA
Table of parts and materials of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn electric drive DNOVA QT-N-EM-A1-220VAC-U1 with feedback sensor and input control signal 4-20 mA
| Item No. | Part name | Material |
| 1 | Frame | Stainless steel 316 |
| 2 | Side element (2 pcs) | Stainless steel 316 |
| 3 | Ball | Stainless steel 316 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | Stainless steel 316 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Electric drives
Technical parameters of electric drives:
| Name | Meaning |
| Supply voltage | 220V |
| Ambient temperature | from -20°C to 70°C |
| Availability of manual backup | Hexagon |
| Limit switches | There is |
| Degree of protection of the case | IP67 |
Sketch of dimensions and sizes of electric drives
Dimensions and sizes of electric drives:
| Drive model | QT-N-005EM-B1-220VAC-U1 | QT-N-008EM-A1-220VAC-U1 | QT-N-030EM-B1-220VAC-U1 | QT-N-060EM-A1-220VAC-U1 |
| X, mm | 160 | 188 | 268 | 268 |
| Y, mm | 146 | 145 | 212 | 255 |
| Z, mm | 121 | 127 | 164 | 164 |
| F | F70 | F70 | F125 | F125 |
| N.B. | 4-M8 | 4-M8 | 4-M12 | 4-M12 |
| FS | F50 | F50 | F102 | F102 |
| N.D. | 4-M6 | 4-M6 | 8-M10 | 4-M10 |
| E, mm | 66 | 100 | 140 | 140 |
| F, mm | 66 | 90 | 130 | 130 |
| G, mm | 114 | 114 | 114 | 114 |
| H, mm | 40 | 40 | 40 | 40 |
| I, mm | 100 | 150 | 100 | 150 |
| MxM | 14x14 | 17x17 | 22x22 | 27x27 |
Sketch of the electric drive device
Electric drive device:
| Item No. | Details |
| 1 | Output shaft |
| 2 | Cable lock |
| 3 | Mechanical limiter |
| 4 | Frame |
| 5 | Lid |
| 6 | Viewing window |
| 7 | Dust protection |
