Description
Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualization of the positions of the valve shut-off body. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
Technical parameters of Water Butterfly Valve DNOVA WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, pneumatic actuator PA-DA-105-1 double action, 4V320-08 220V, LSU APL-510N EX:
| Name | Significance |
| Nominal pressure PN, bar | 16 |
| Working medium temperature, °C | from -20 to +100 |
| Application | water supply, heat supply |
| Connection to pipeline | Interflange (threaded lugs) |
| Gate type | swivel disk |
| Control type | pneumatic actuator |
| Manufacturer's country | China |

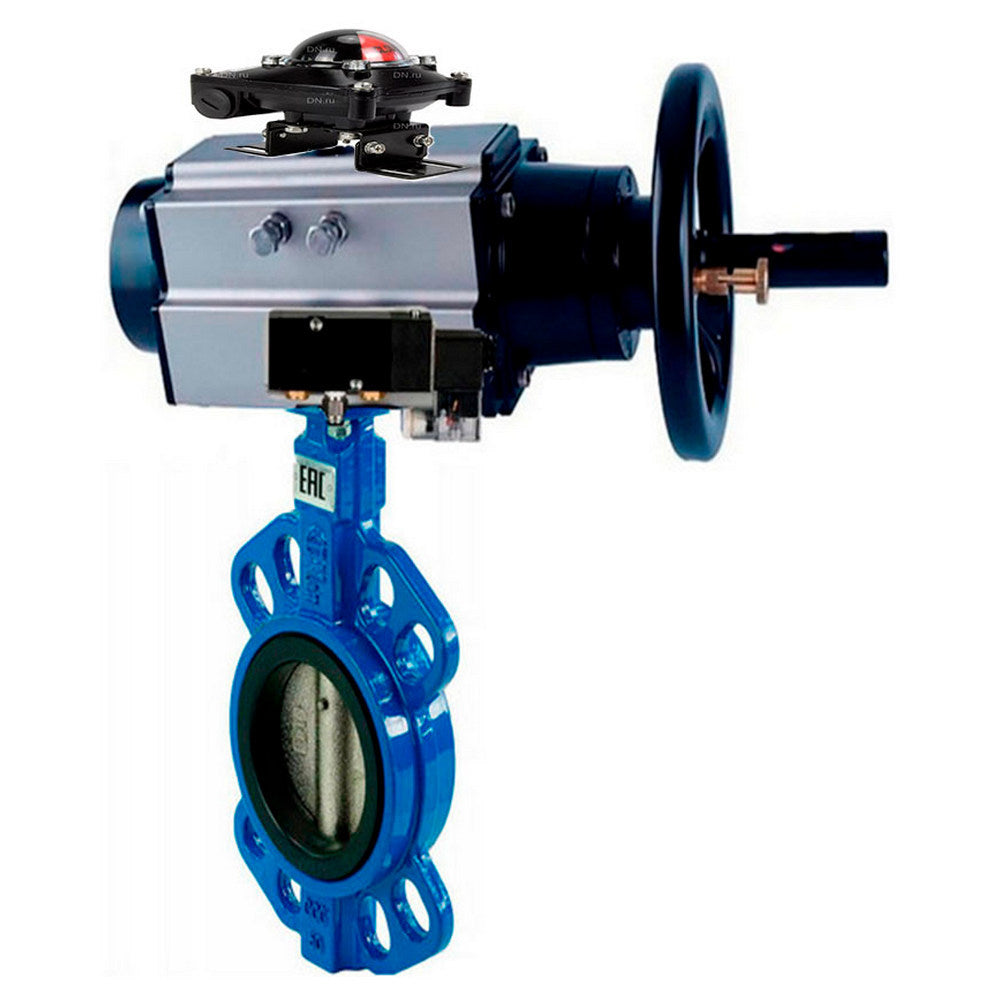

Butterfly valves WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, pneumatic actuator PA-DA-105-1 double action, 4V320-08 220V, LSU APL-510N EX
Dimensions and dimensions of butterfly valves DNOVA WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, pneumatic actuator PA-DA-105-1 double action, 4V320-08 220V, LSU APL-510N EX:
| DN | H, mm | A, mm | E, mm |
| 125 | 317.5 | 495 | 200 |
| 150 | 354.5 | 495 | 200 |
Sketch Butterfly valves WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, pneumatic actuator PA-DA-105-1 double action, 4V320-08 220V, LSU APL-510N EX
Materials of butterfly valves DNOVA WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, pneumatic actuator PA-DA-105-1 double action, 4V320-08 220V, LSU APL-510N EX:
| № | Details | Material |
| 1 | Body | cast iron QT450 |
| 2 | Disk | cast iron QT450 |
| 3 | Seat seal | EPDM |
| 4 | Rod | stainless steel SS 316 |
Sketch of parts and materials Butterfly valves WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, pneumatic actuator PA-DA-105-1 double action, 4V320-08 220V, LSU APL-510N EX
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve 4V320-08 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-08 220V
Dimensions and dimensions of pneumatic valve 4V320-08 220V:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V
Characteristics of limit switch unit APL-510N-EX:
| Parameter | Significance |
| Enclosure | all-weather IP67/ NEMA4 4X,7,9 explosion-proof E EX d IIC T6 |
| Compatible devices | quarter-turn pneumatic actuators; - any actuators with shaft rotation by 90 |
| Full rotation angle | 90° |
| Cable glands | 2 x NPT 3/4” |
| Electrical connection | screw terminals 8 points (0.08 - 2.5) mm2 |
| Cable gland thread | 2 x NPT 3/4” |
| Type of visual indicator | two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red |
| Switches/sensors | two mechanical switches two proximity sensors |
| Rated voltage, V | 250 |
| Rated current, A | 16 |
| Permissible ambient temperature, °C | -20 to +66 |
| Average life, cycles | 10 000 000 |
| Weight, kg | 1.8 |
APL-510N EX explosion-proof limit switch units
Overall and installation dimensions of APL-510N EX explosion-proof limit switch units:
| A, mm | 118 |
| B, mm | 118 |
| C, mm | 138.4 |
| D, mm | 17 |
| E, mm | 19 |
| F, mm | 7 |
| G, mm | 3 |
| H, mm | 4 |
| I, mm | 59 |
| J, mm | 59 |
| K, mm | 59 |
| L, mm | 59 |
| M, mm | 121.4 |
| d1, mm | 50 |
| d2, mm | 5 |
Sketch of dimensions of APL-510N EX explosion-proof limit switch units
